Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing engine data parameter P.0.4. If failure is induced, reading will drop from normal value to "open" value of B40 to B35°C. This will help isolate location of malfunction.

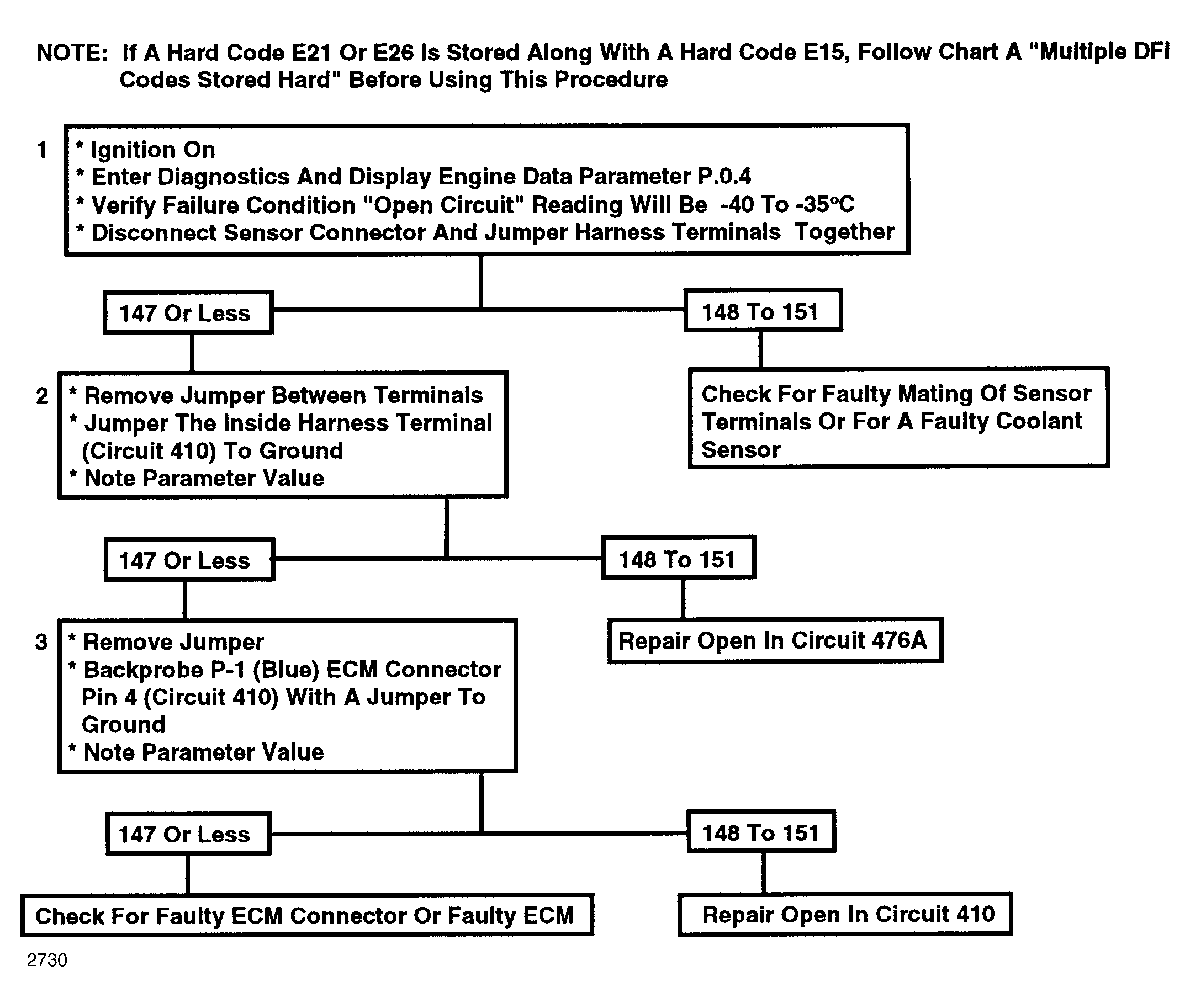

Fig 1: Hard Trouble Code E15
G2730
Fig 2: Hard Trouble Code E15
GB0045805
