Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing engine data parameter P.0.1. If failure is induced, reading will jump from normal reading to a reading of B10 to B6° at part throttle. This will help to isolate location of malfunction.

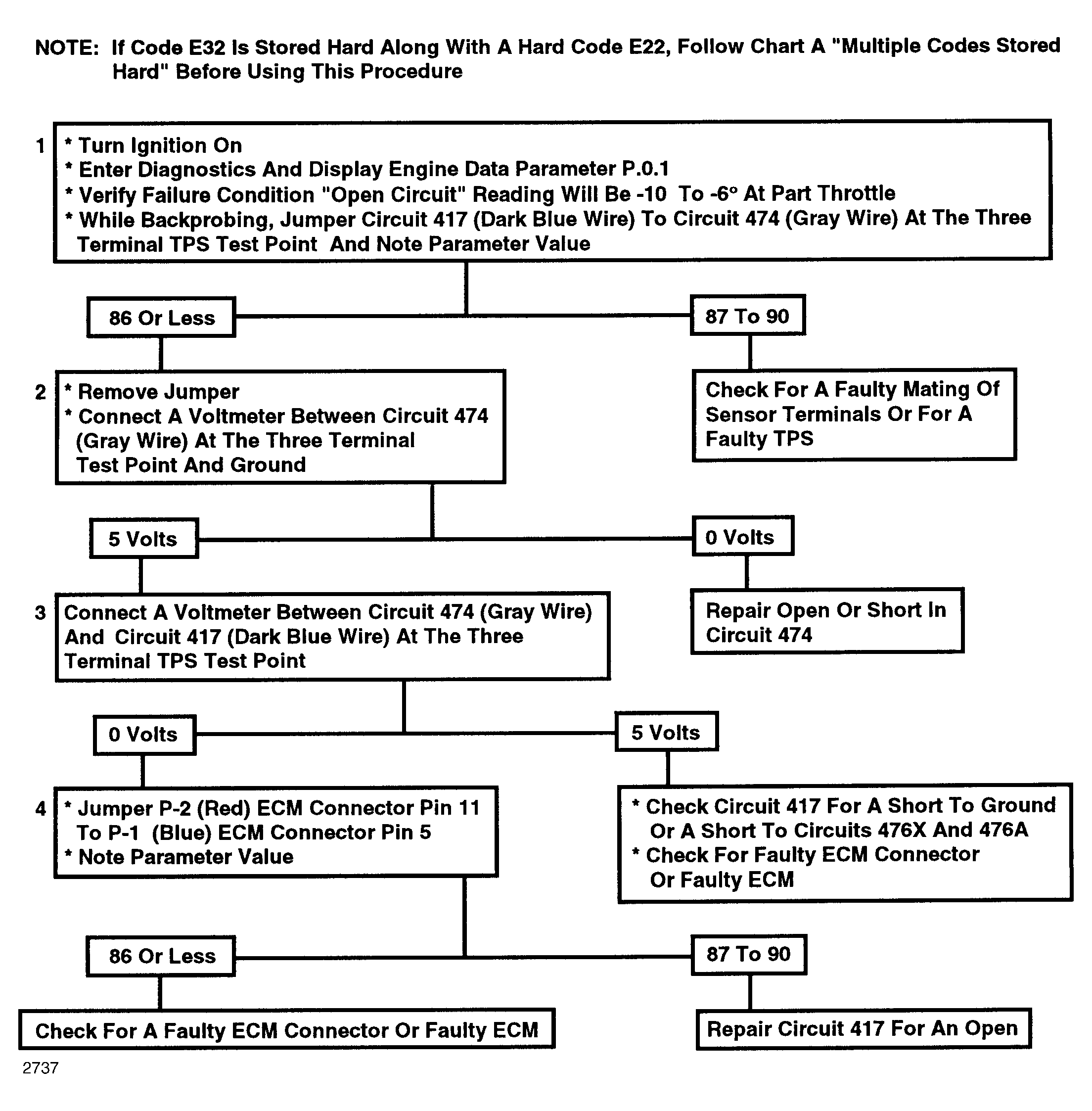

Fig 1: Hard Trouble Code E22
G2737

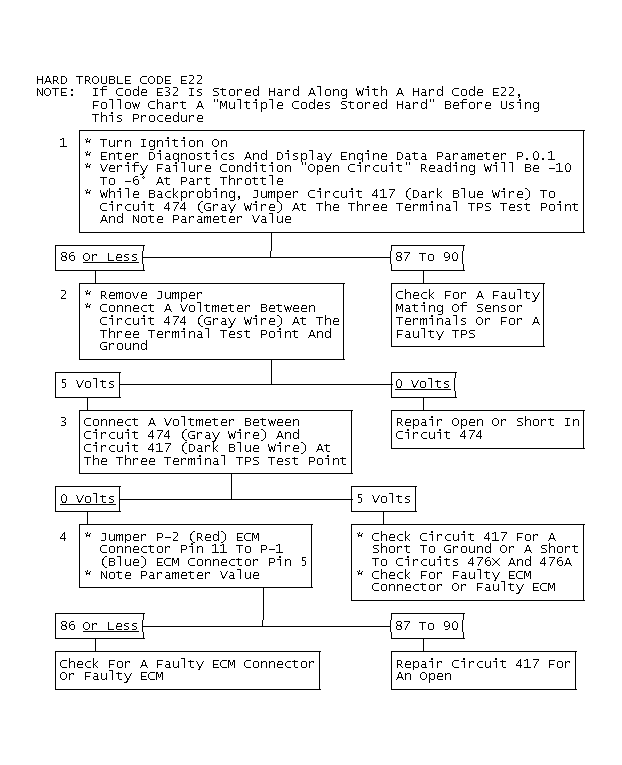

Fig 2: Hard Trouble Code E22
GB0045812
