Note On INTERMITTENTS

If intermittent code is being set, operate vehicle while observing "OFF" button on CCP panel and parameter P.0.1 at the same time. If throttle switch fails to open upon opening of the throttle, investigate that circuit for a malfunction. If reading ever jumps above 13° with throttle closed, investigate that circuit for malfunction. This will help to isolate location of malfunction.

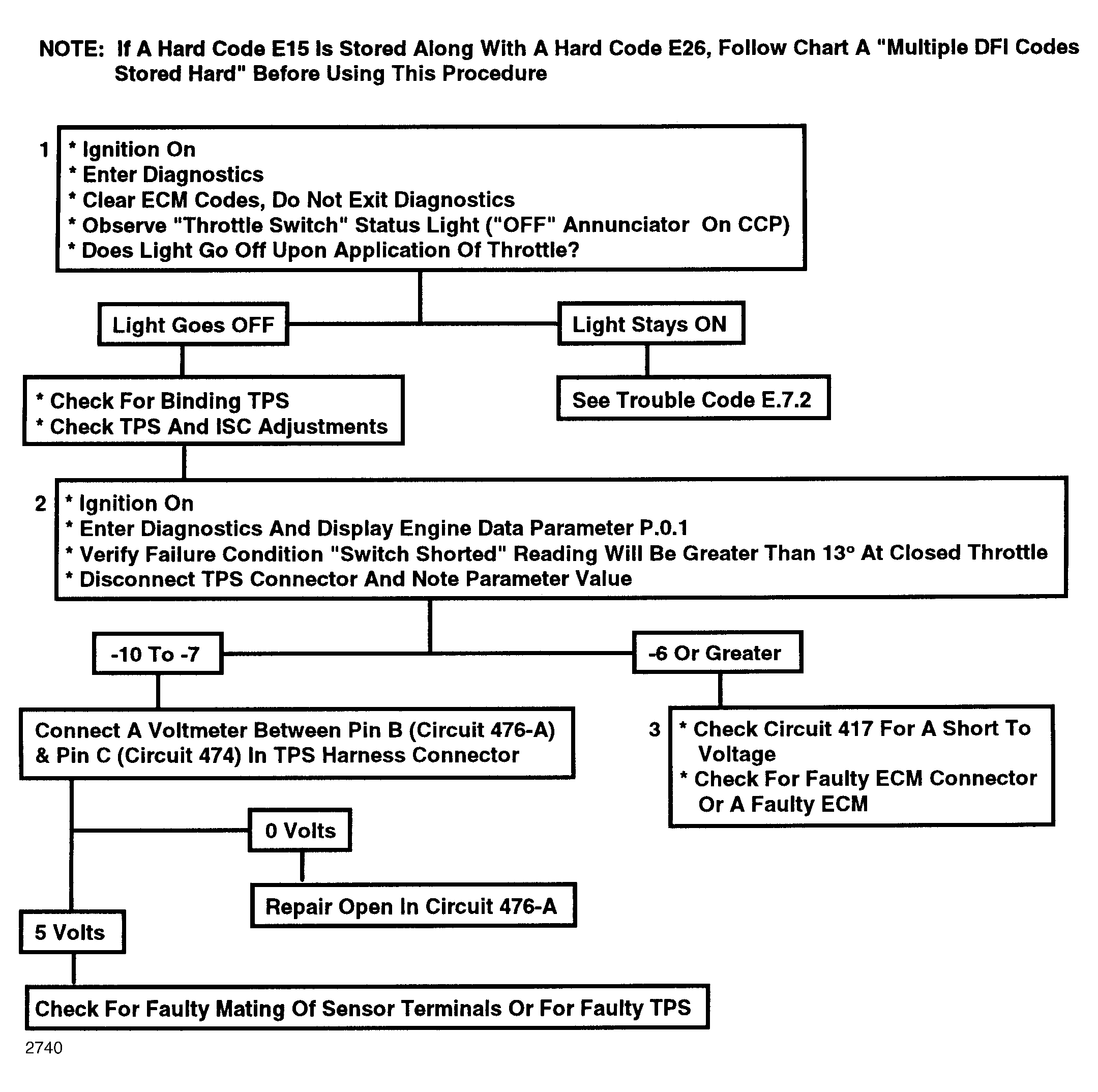

Fig 1: Hard Trouble Code E26
G2740
Fig 2: Hard Trouble Code E26
GB0045814
