Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing "REAR DEFOG" light on CCP panel for 4th gear circuitry or manipulate related wiring while observing "SERVICE SOON" light (out of diagnostic mode) to verify operation of 3rd gear circuitry. This will help to isolate location of malfunction.

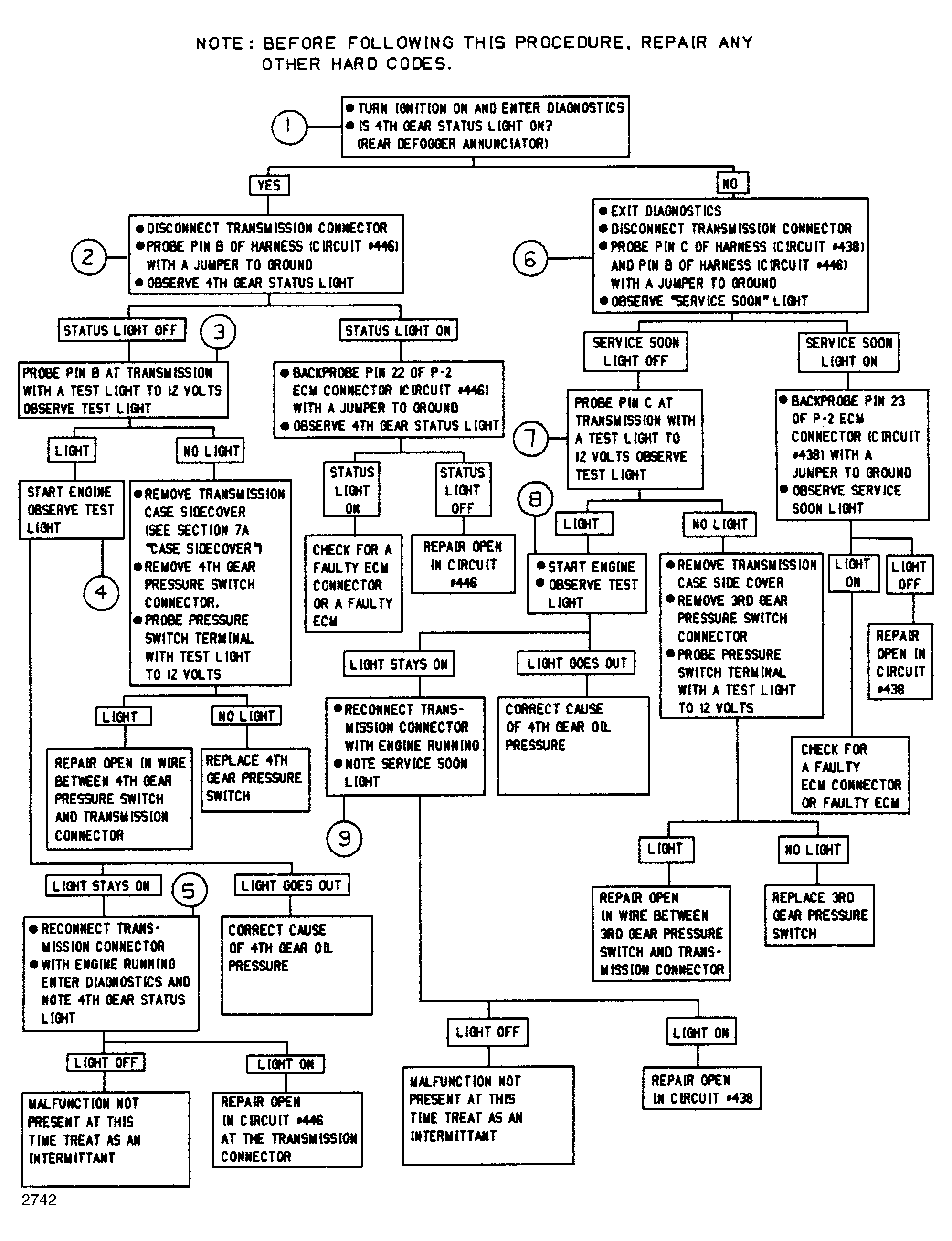

Fig 1: Hard Trouble Code E28
G2742

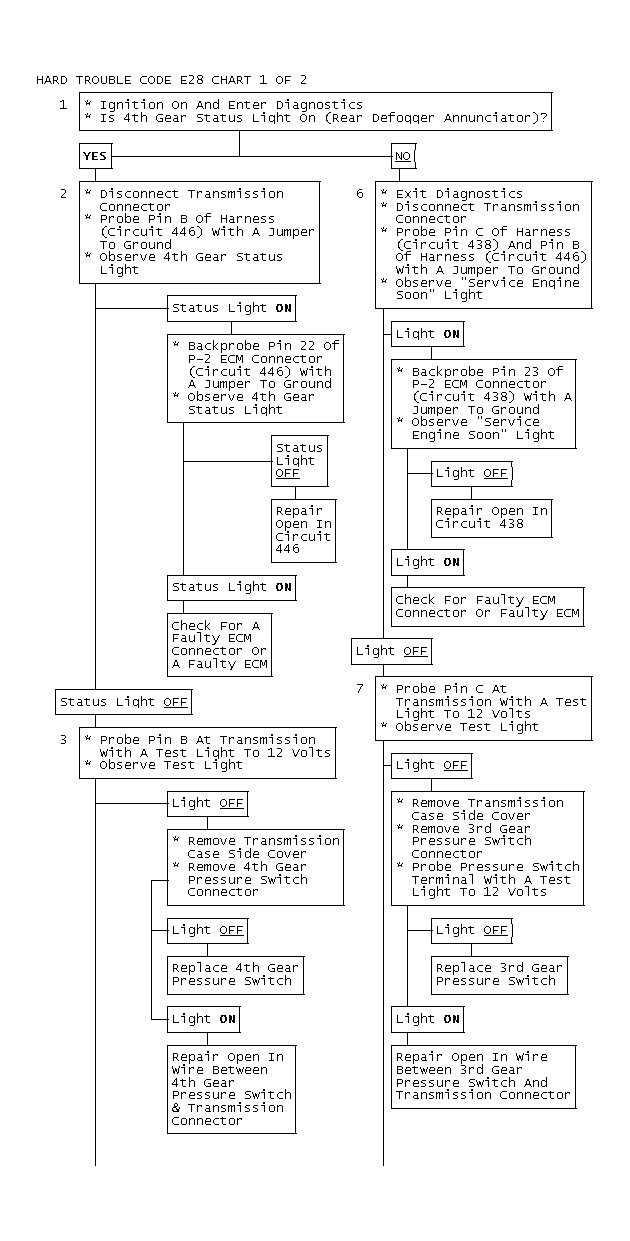

Fig 2: Hard Trouble Code E28 Chart 1 Of 2
GB0045816
Fig 3: Hard Trouble Code E28 Chart 2 Of 2
GB0045817
