Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing engine data parameter "P.0.2" with engine running. If failure is induced, reading will jump from normal value at idle to within 6 kPa of BARO reading (parameter "P.0.3"). This will help to isolate location of malfunction.

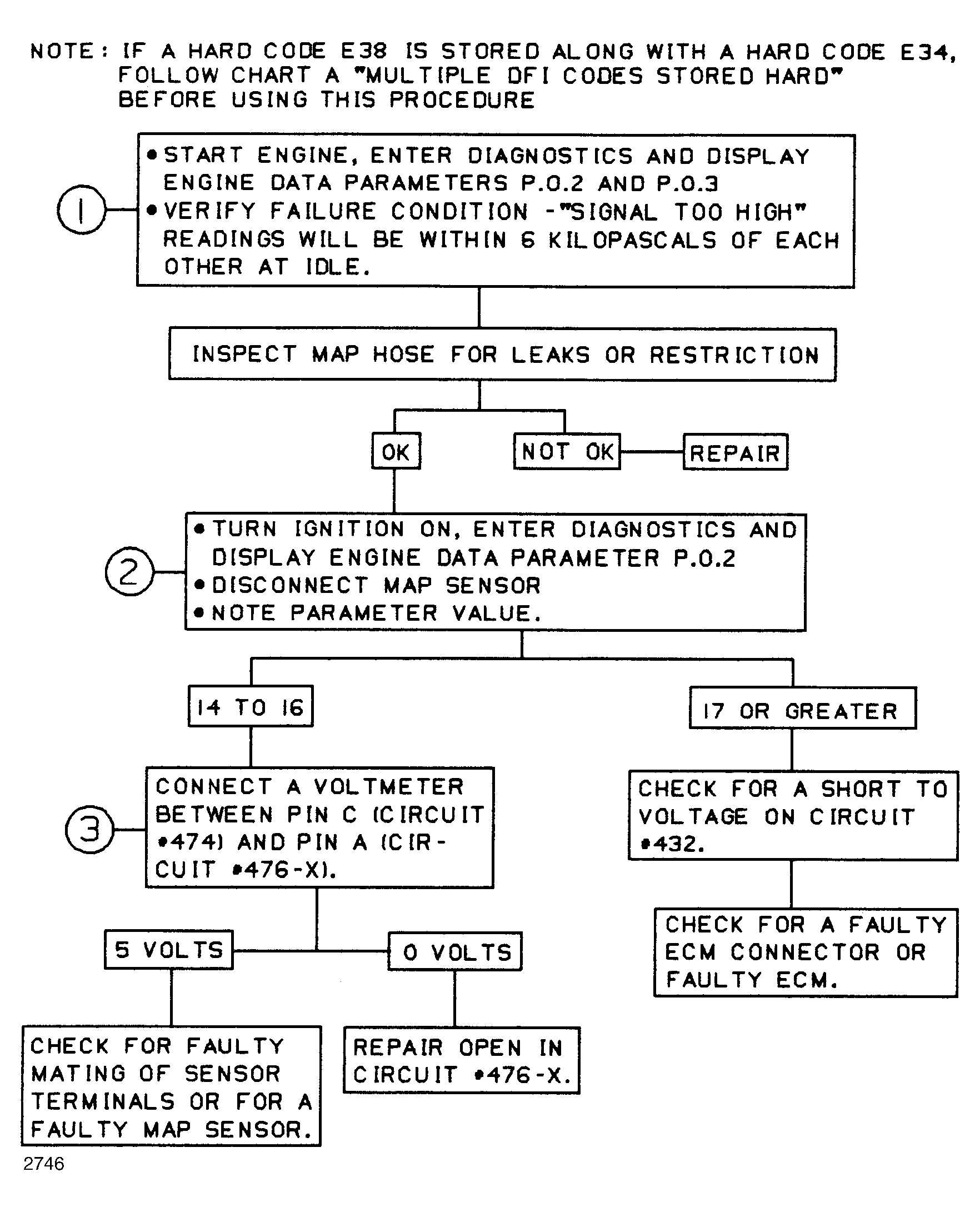

Fig 1: Hard Trouble Code E34
G2746
Fig 2: Hard Trouble Code E34
GB0045822
