Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing engine data parameter "P.0.5". If failure is induced, reading will drop from normal value to "open" reading of B40°C to B35°C. This will help to isolate location of malfunction.

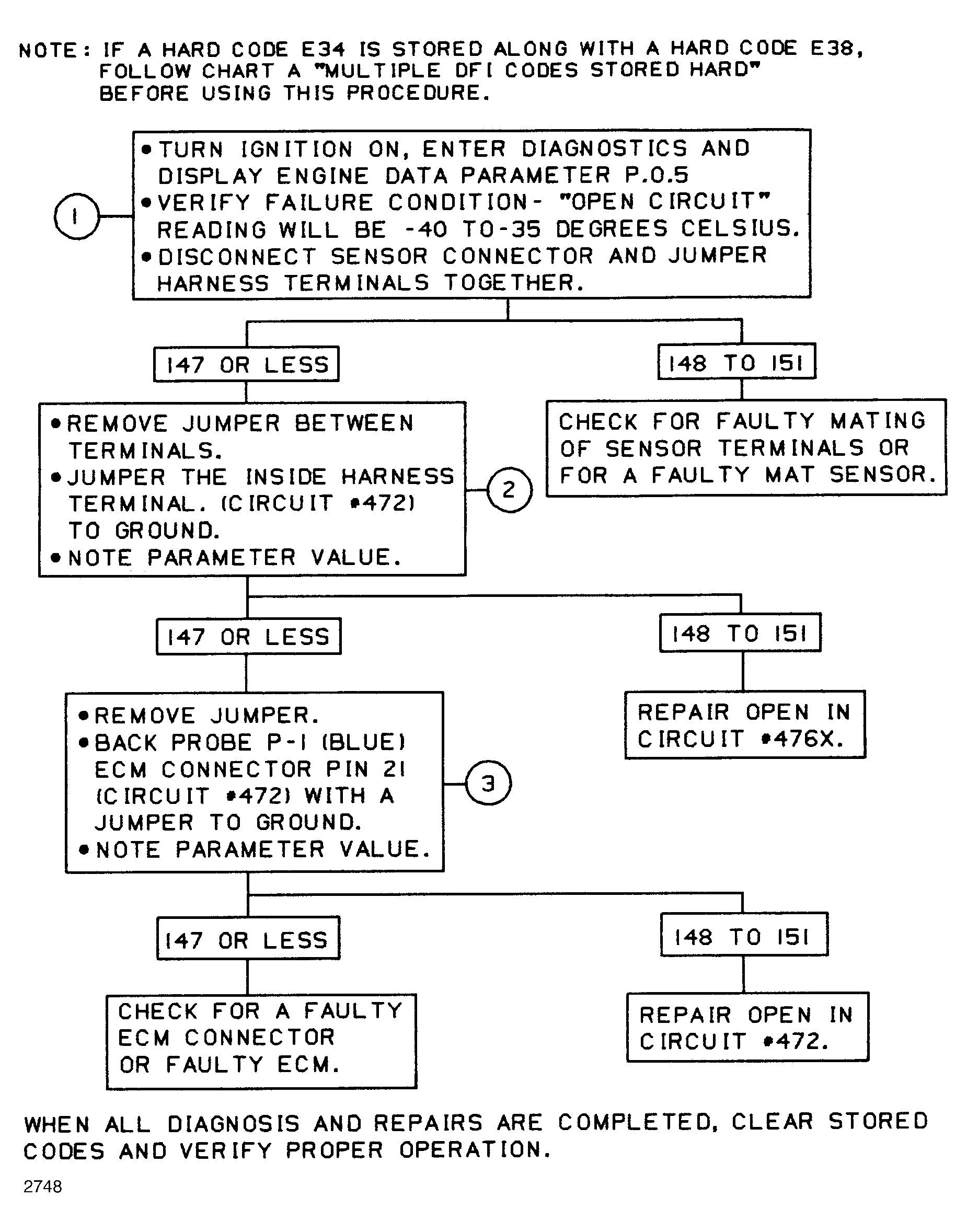

Fig 1: Hard Trouble Code E38
G2748
Fig 2: Hard Trouble Code E38
GB0045824
