Data Sensors Operation: Notes

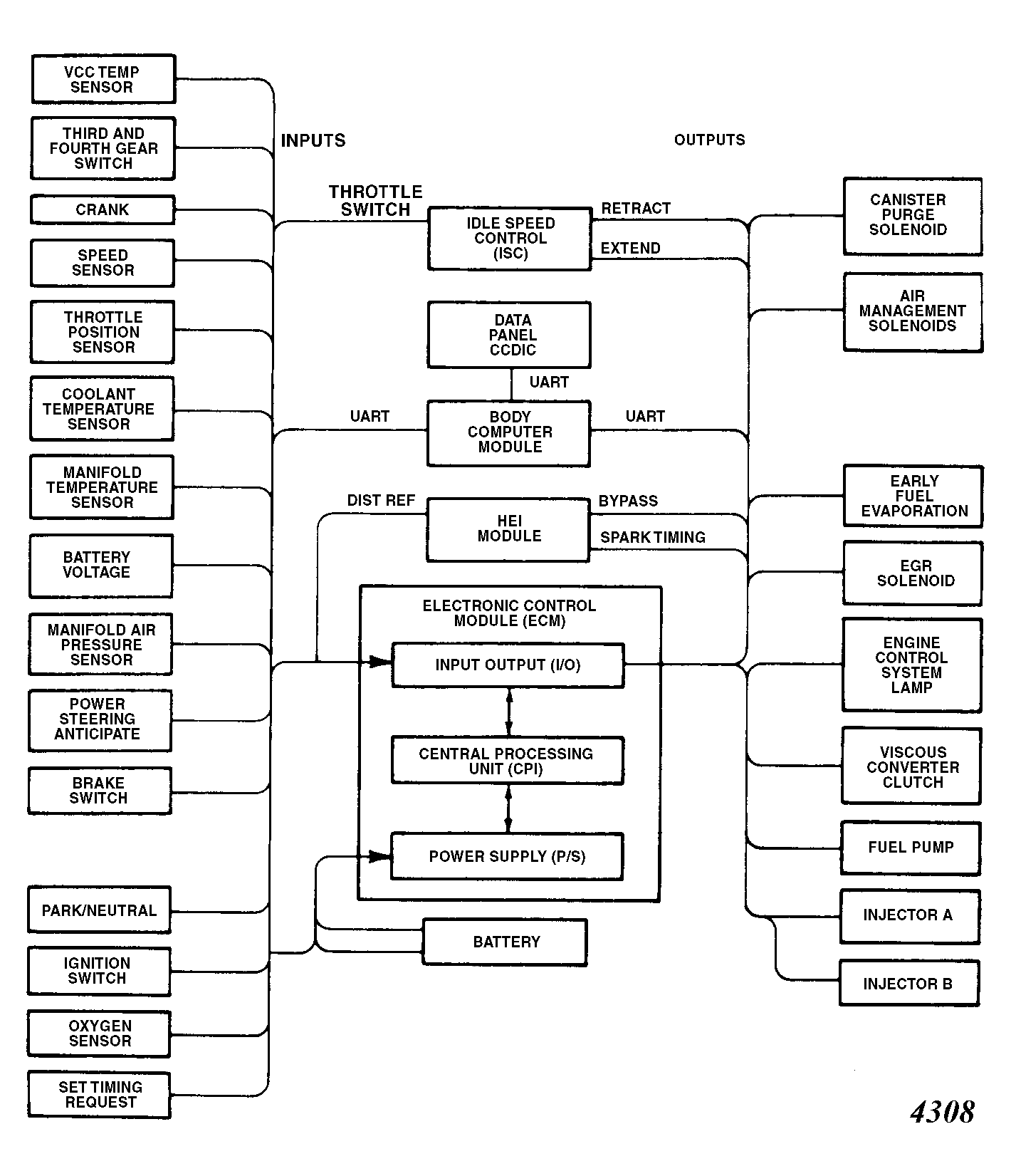

Each sensor furnishes electronic impulses to ECM. The ECM computes spark timing and fuel delivery rate necessary to maintain desired air/fuel mixture, thus controlling amount of fuel delivered to engine. Data sensors are interrelated to each other. See Figure and Figure . Sensor operation is as follows:
