Abs Visual Inspection

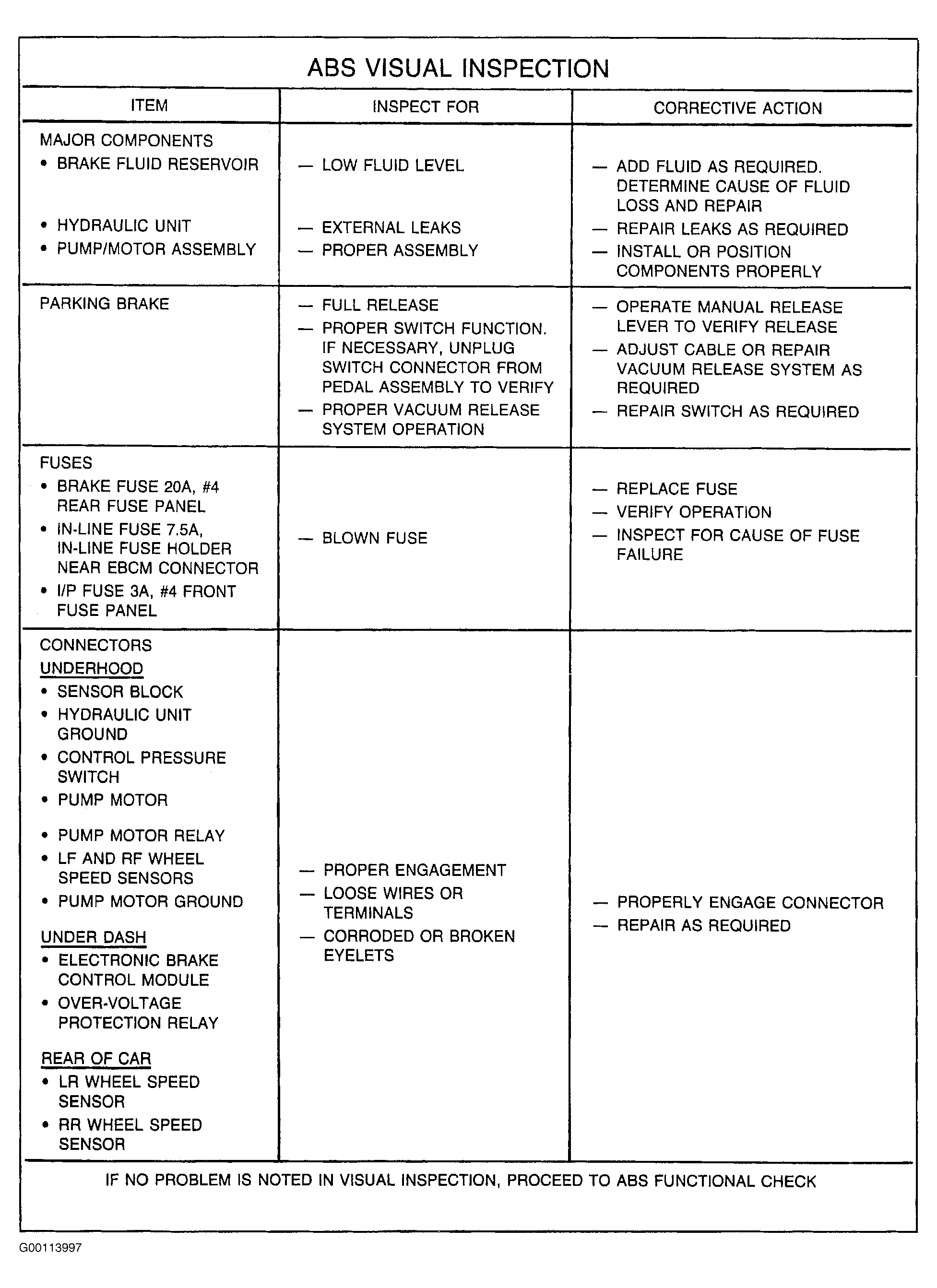

The ABS Visual Inspection consists of an inspection of easily accessible components which could cause an apparent anti-lock system malfunction. A thorough Visual Inspection may quickly identify the cause of a malfunction and eliminate the need for additional diagnostic procedures. The ABS Visual Inspection procedure is shown in Fig 1 .
