Body Computer Module (BCM) Prom: Removal

  1. Remove BCM. See BODY COMPUTER MODULE (BCM)  .
  2. Remove PROM access cover.
  3. Remove PROM assembly. See Fig 1 .

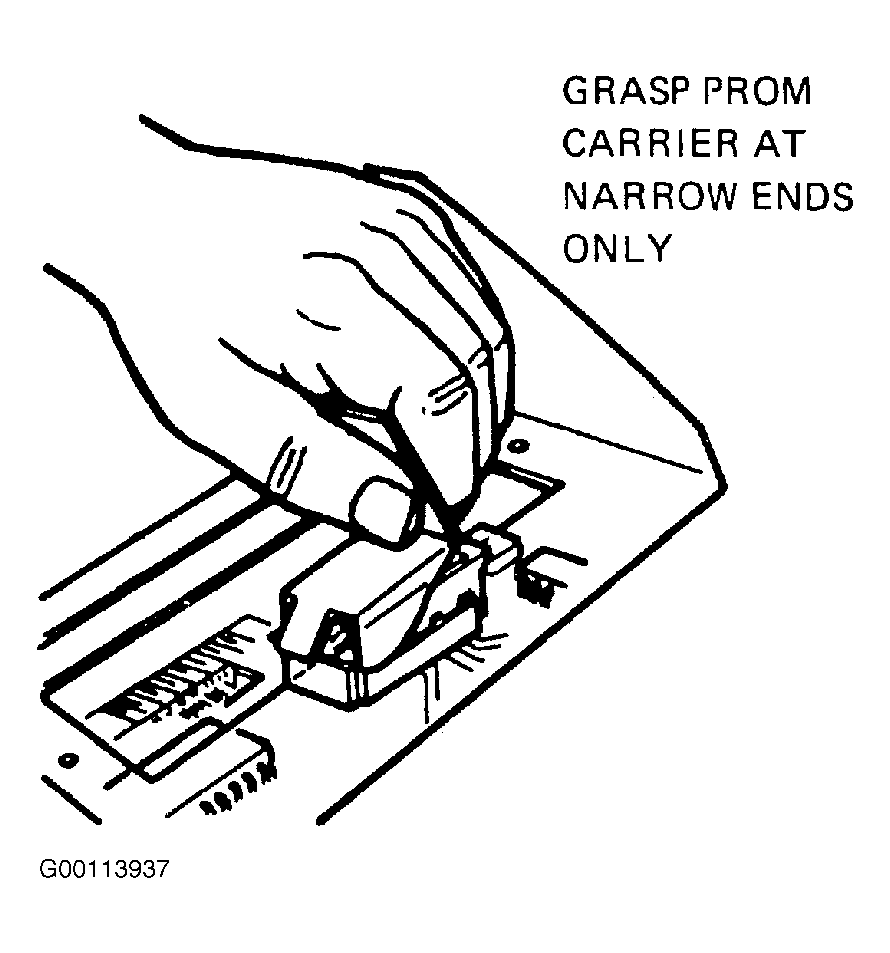

Fig 1: Removing BCM PROM
G00113937Courtesy of GENERAL MOTORS CORP.
