Engine Control Module (ECM): Removal

1. Disconnect negative battery cable.
2. Remove right hand hush panel.
3. Remove connectors to ECM.
4. Remove two screws securing ECM. See Fig 1 .
5. Remove ECM.

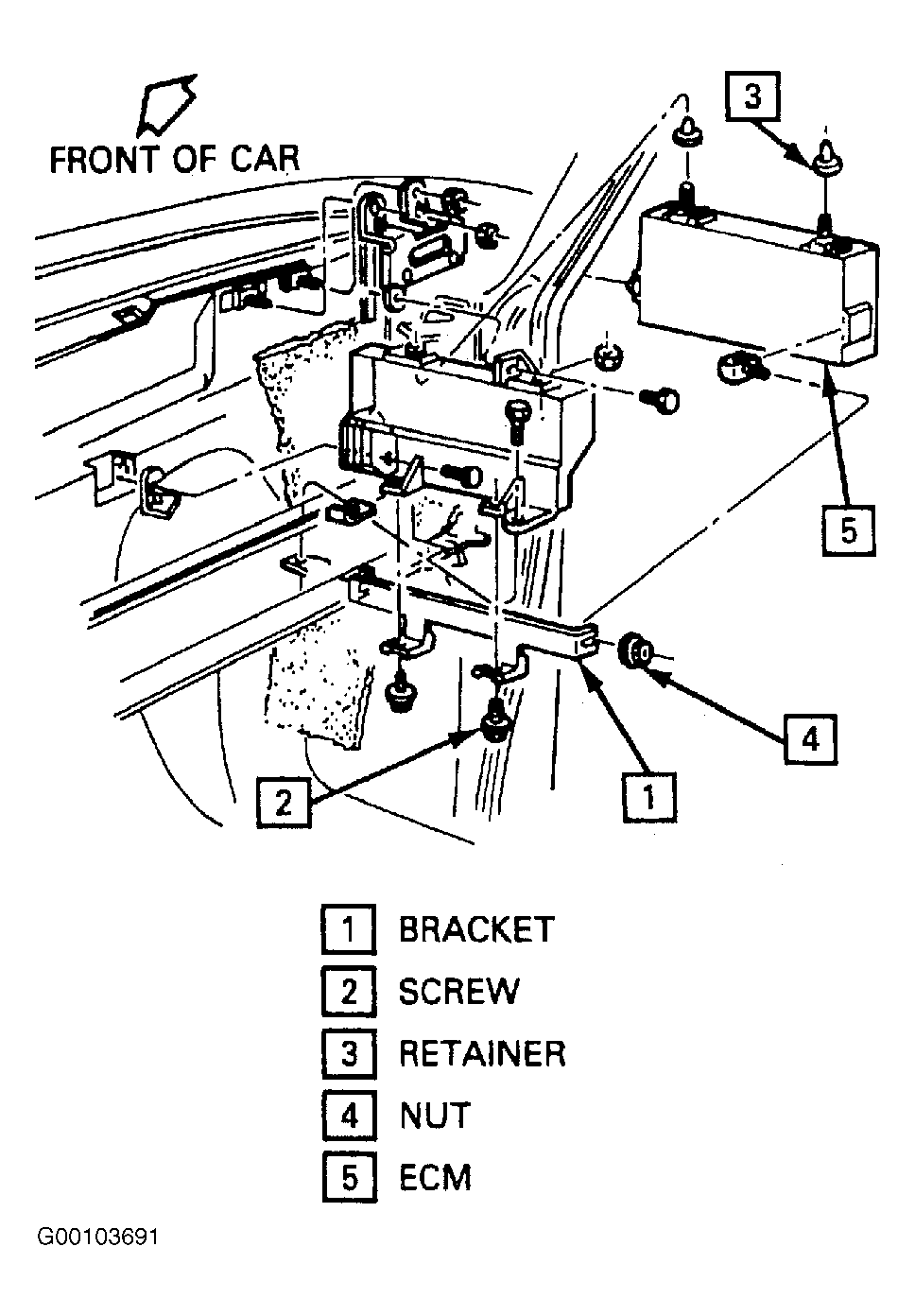

Fig 1: Removing ECM

Courtesy of GENERAL MOTORS CORP.
