Central Power Supply: Removal

  1. Remove lower left sound insulator. See INSTRUMENT PANELS article.
  2. Remove two nuts (8). See Fig 1.
  3. Disconnect electrical connector.
  4. Pull central power supply (1) free from bracket (2).

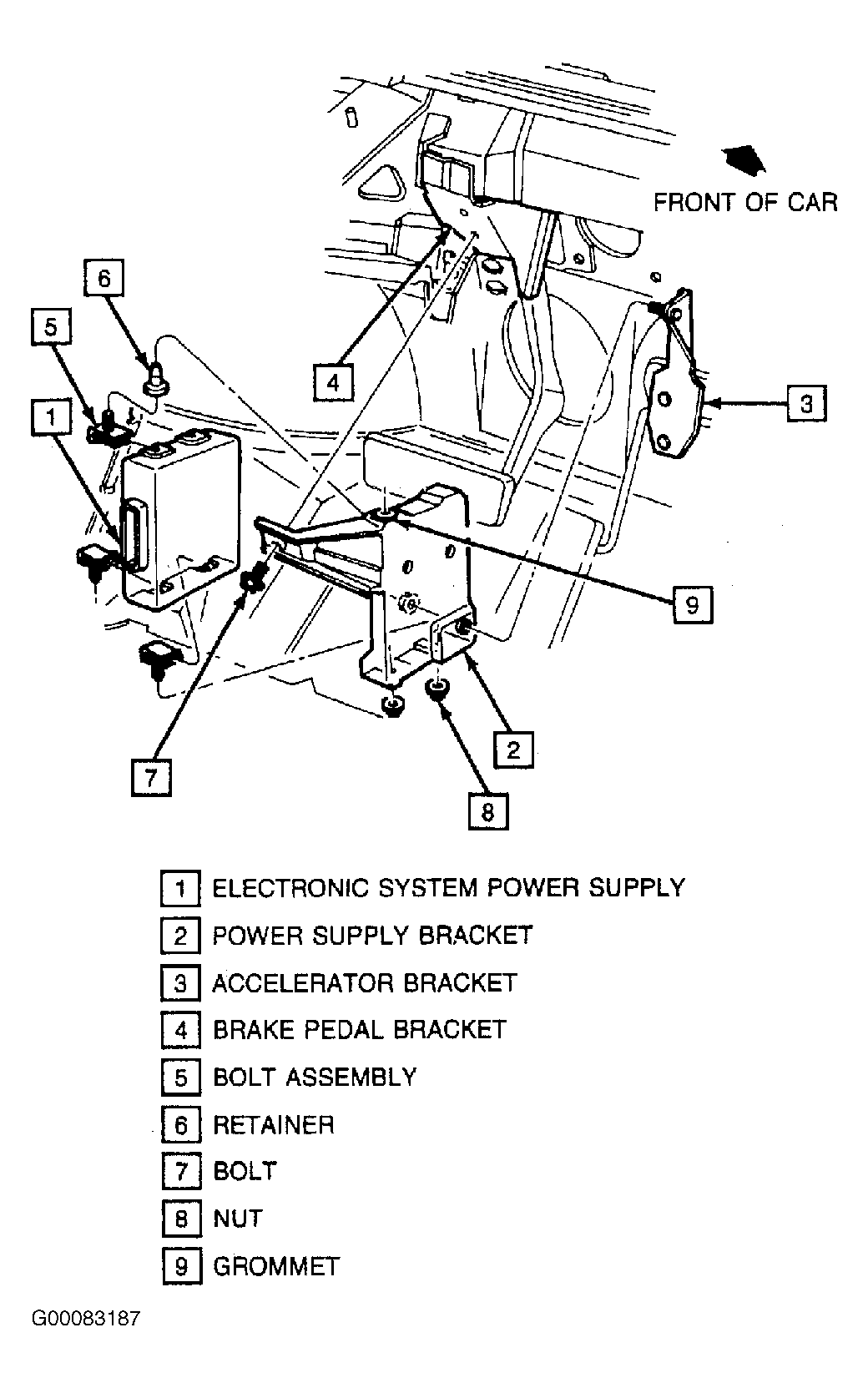

Fig 1: Removing Central Power Supply
G00083187Courtesy of GENERAL MOTORS CORP.
