Chart A-2: Control Pressure Switch

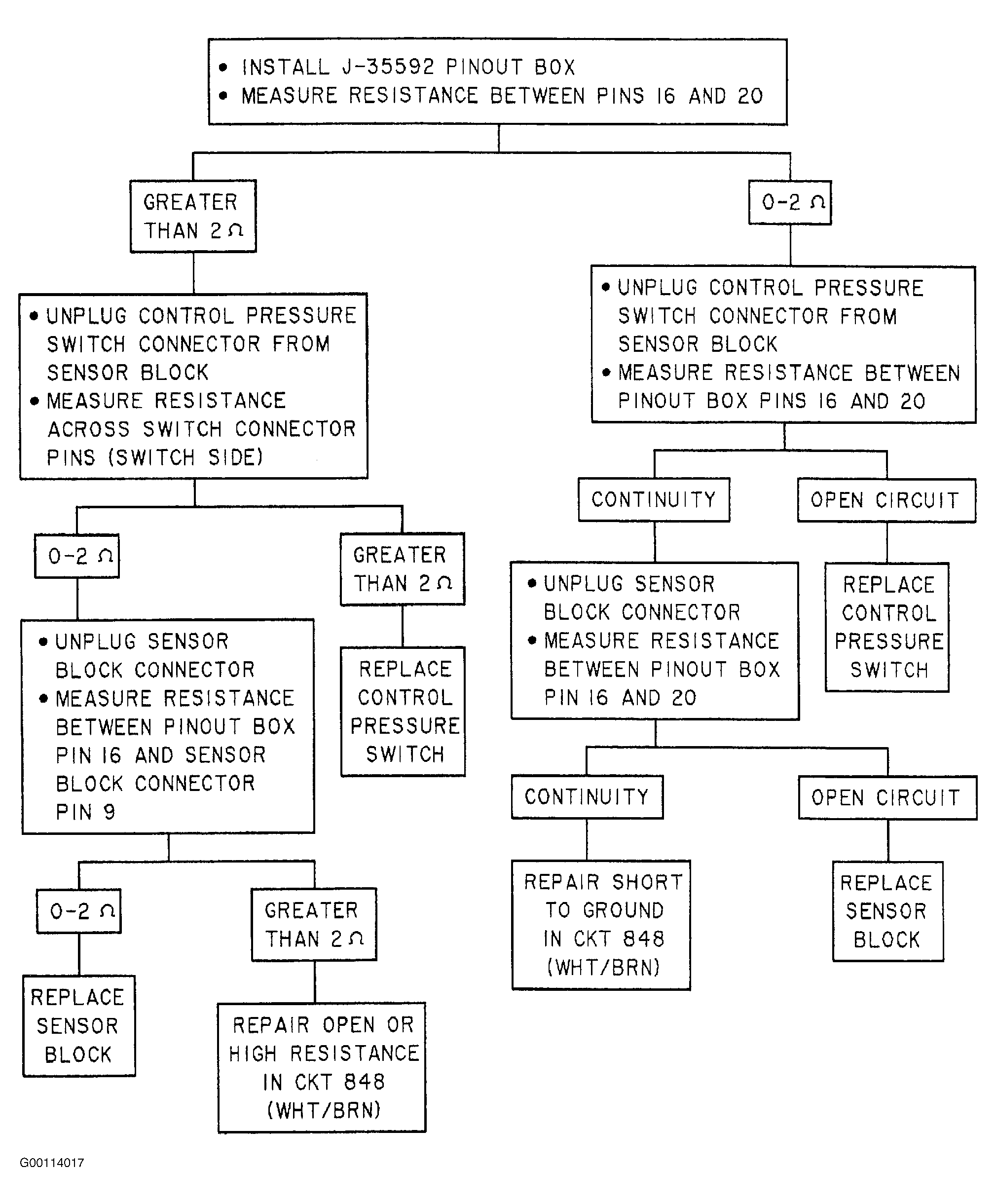

Fig 1: Chart A-2: Control Pressure Switch Diagnostic Flow Chart
G00114017Courtesy of GENERAL MOTORS CORP.
