Electrical Component Locations
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

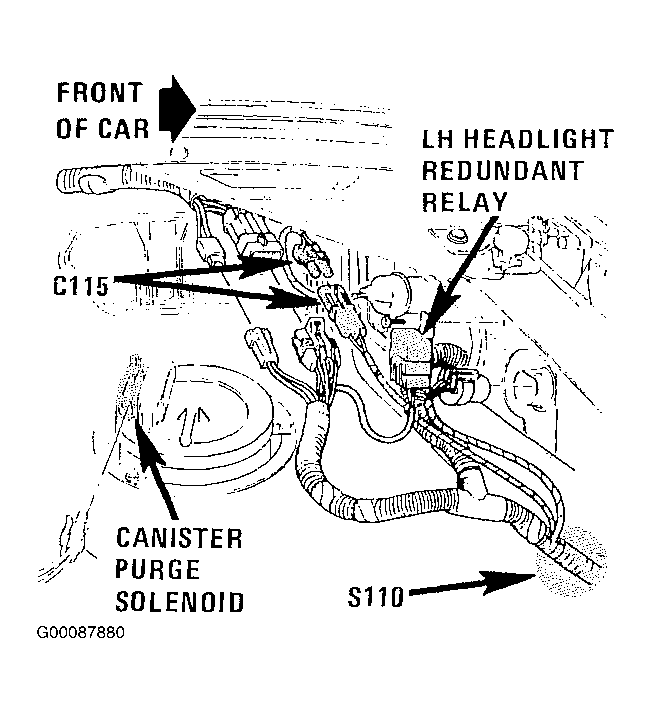

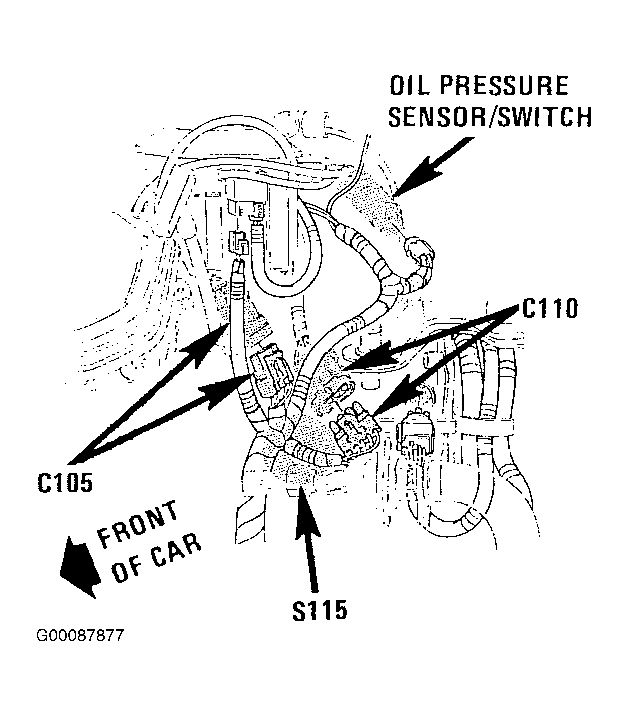

Fig 1: Right Front Corner Of Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

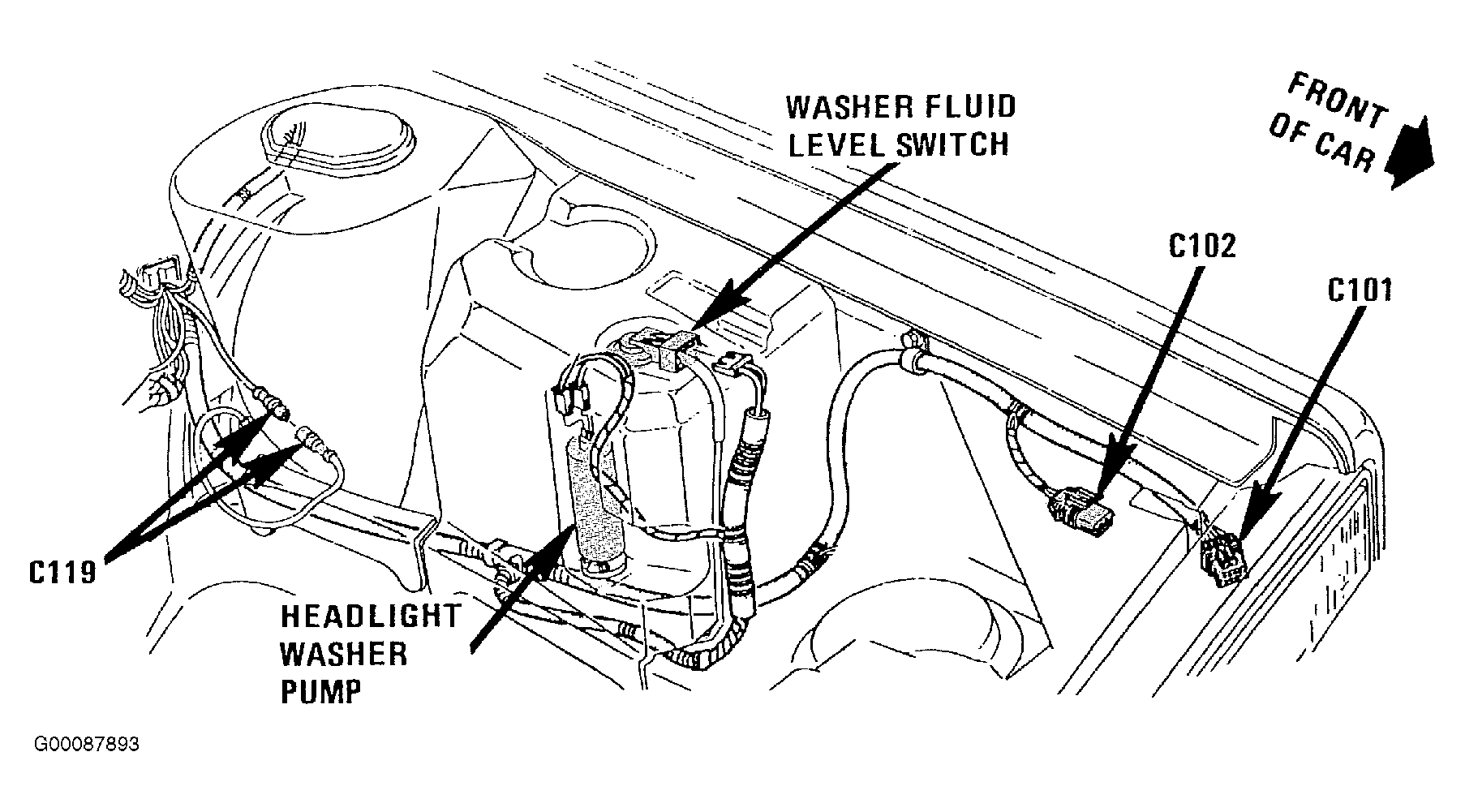

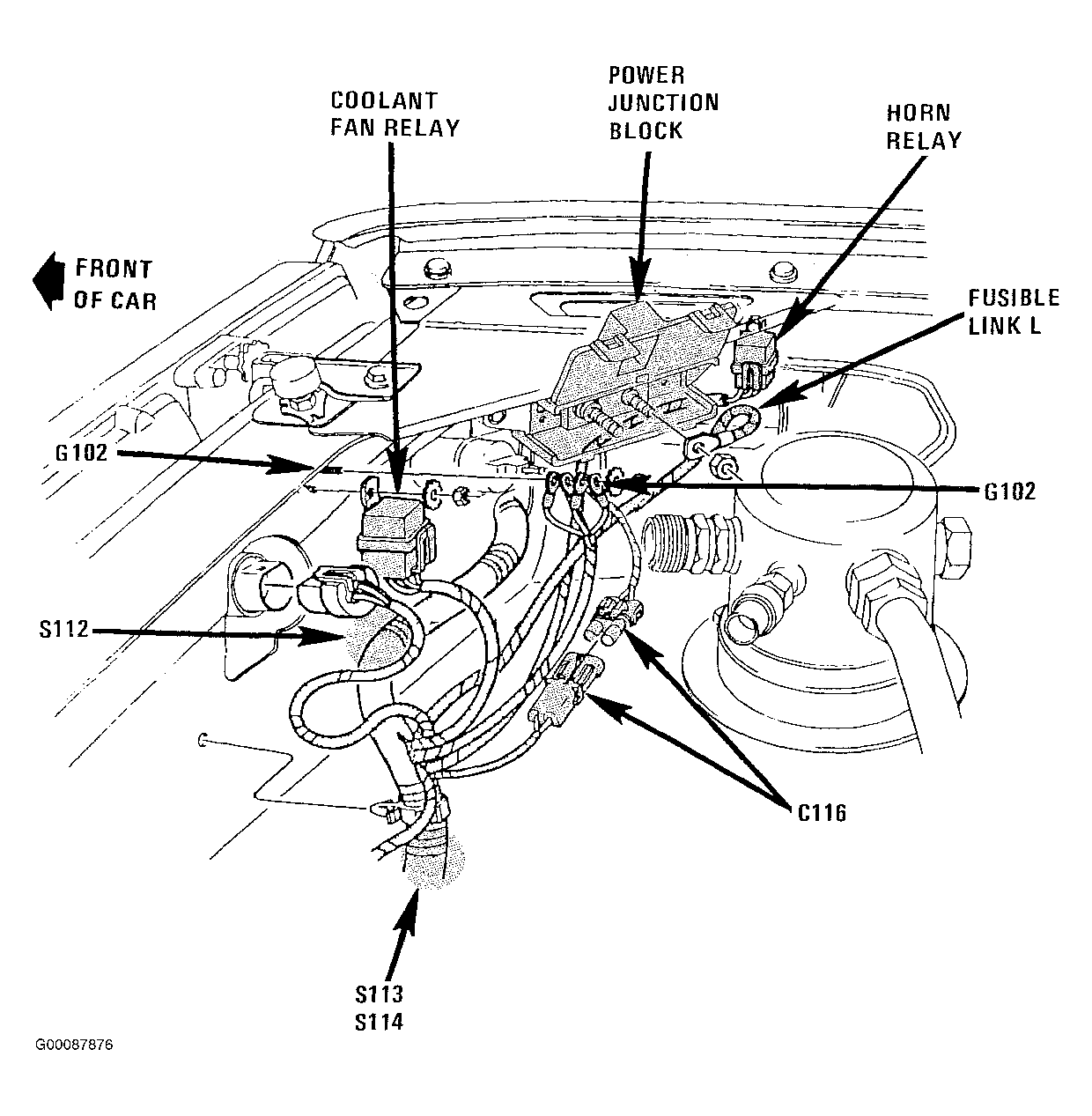

Fig 2: Right Front Corner Of Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

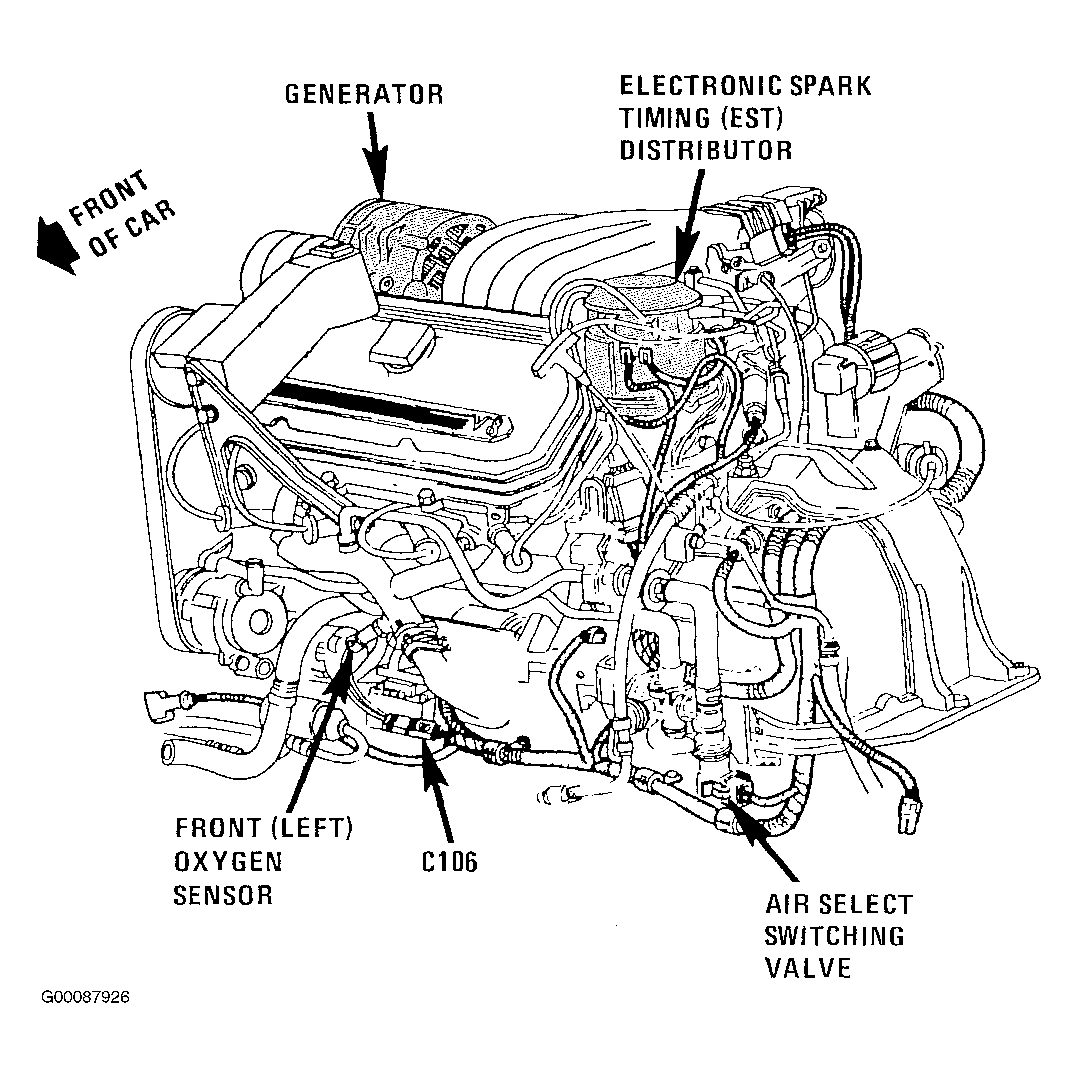

Fig 3: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

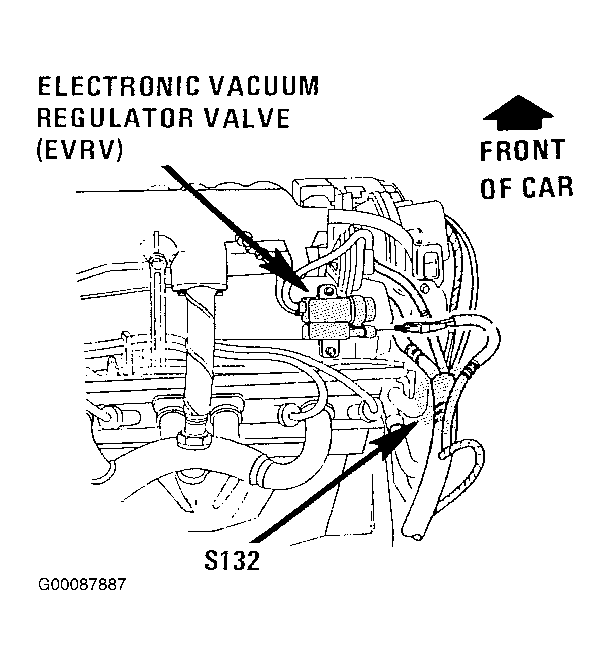

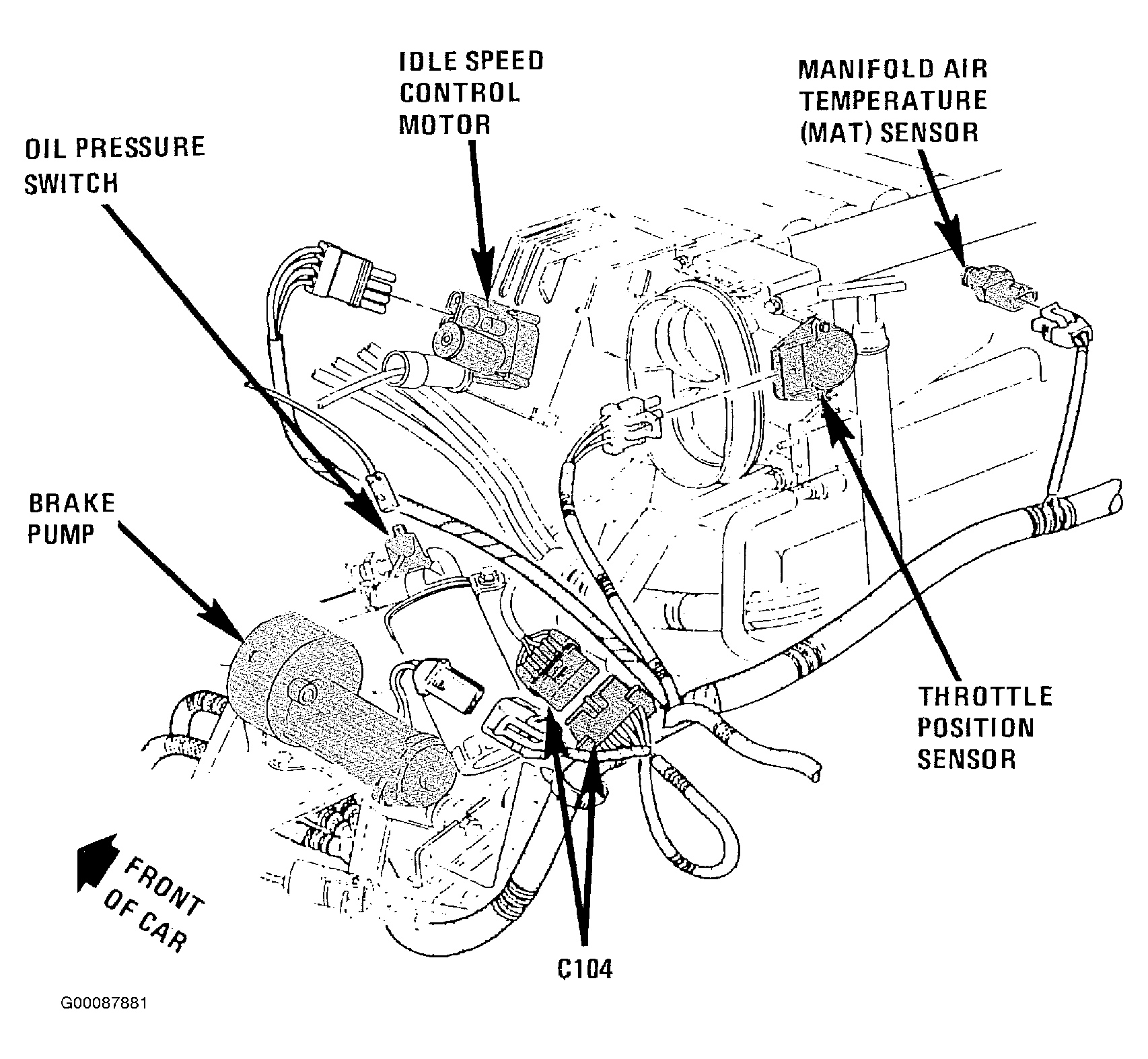

Fig 4: Top Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

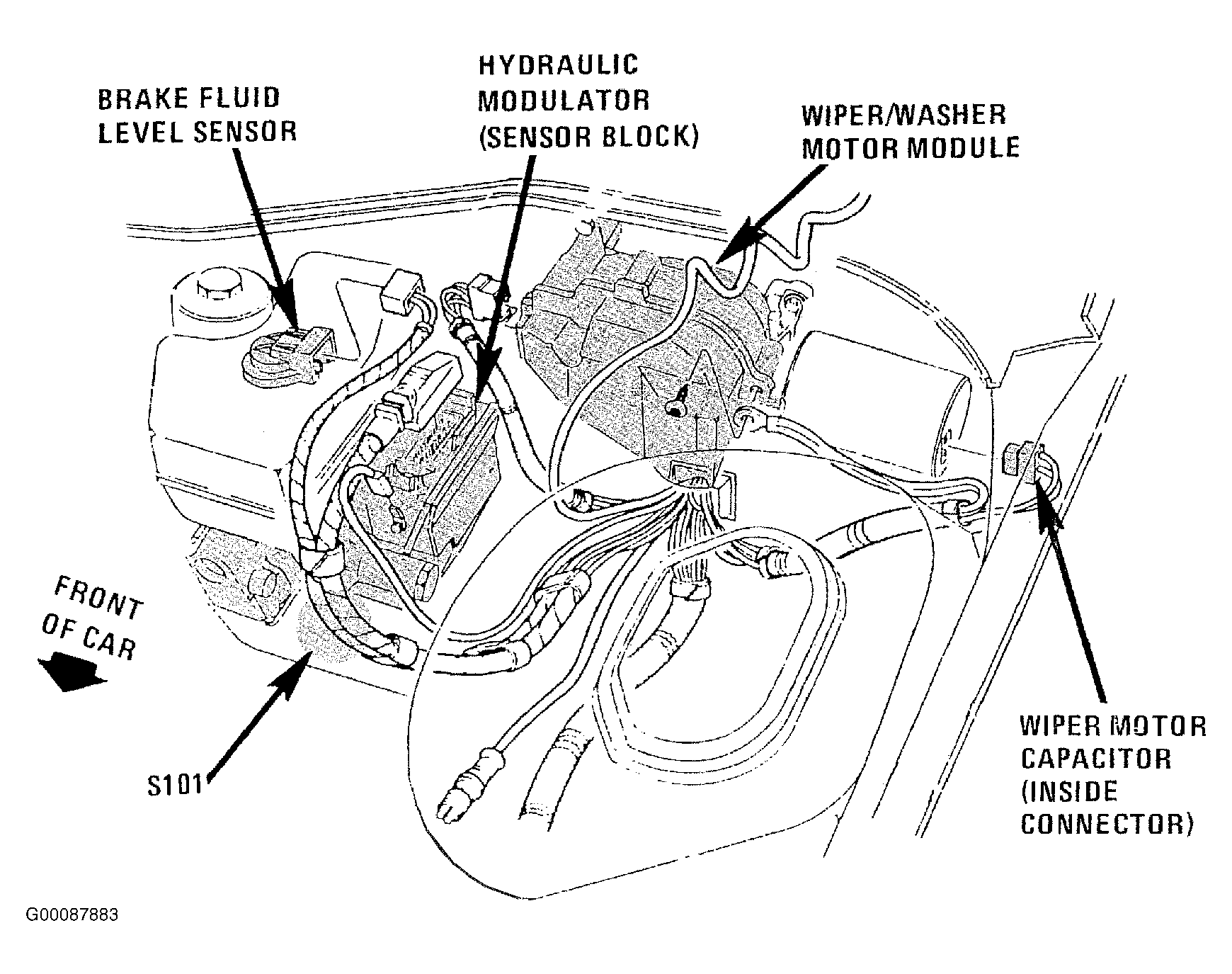

Fig 9: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 11: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

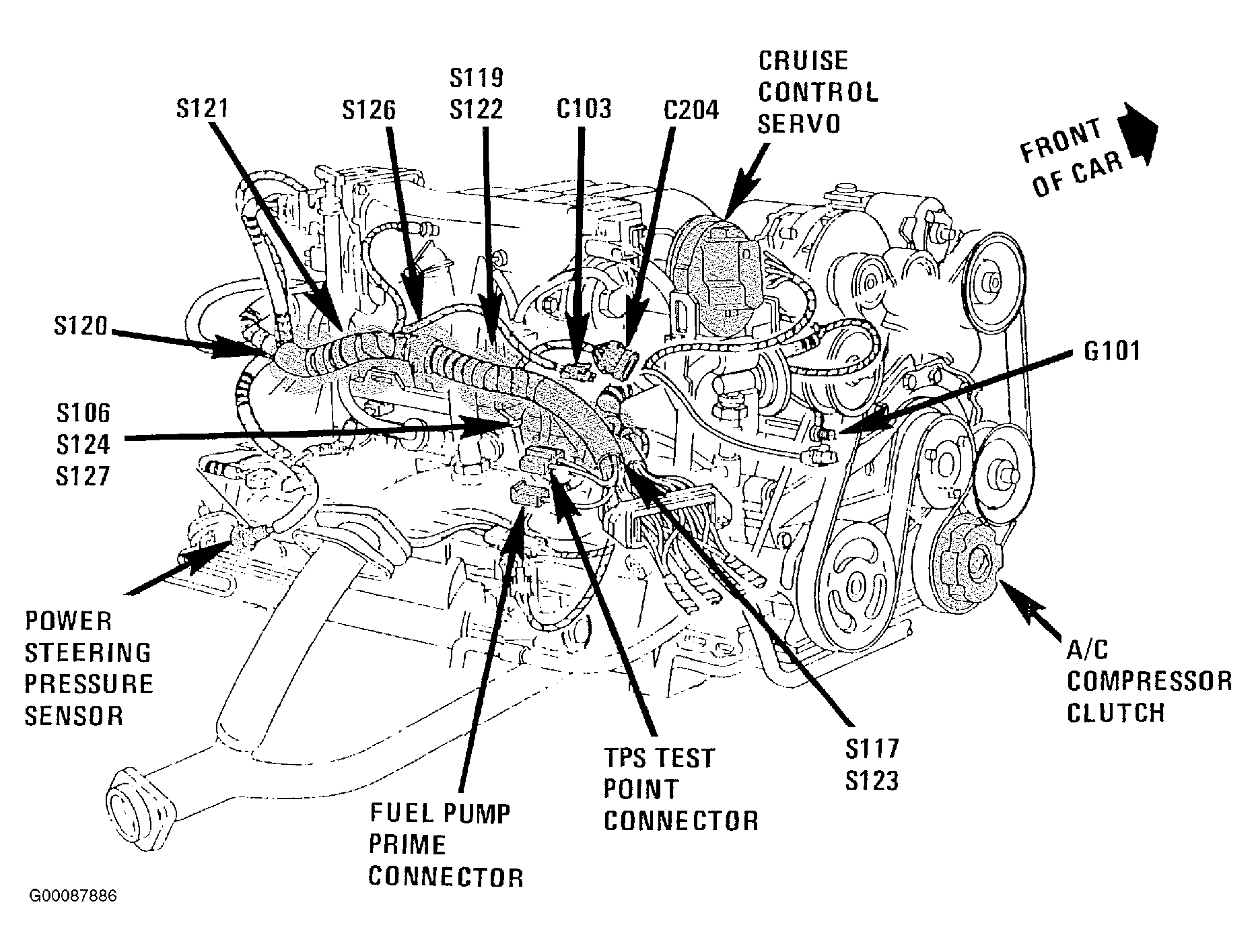

Fig 12: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

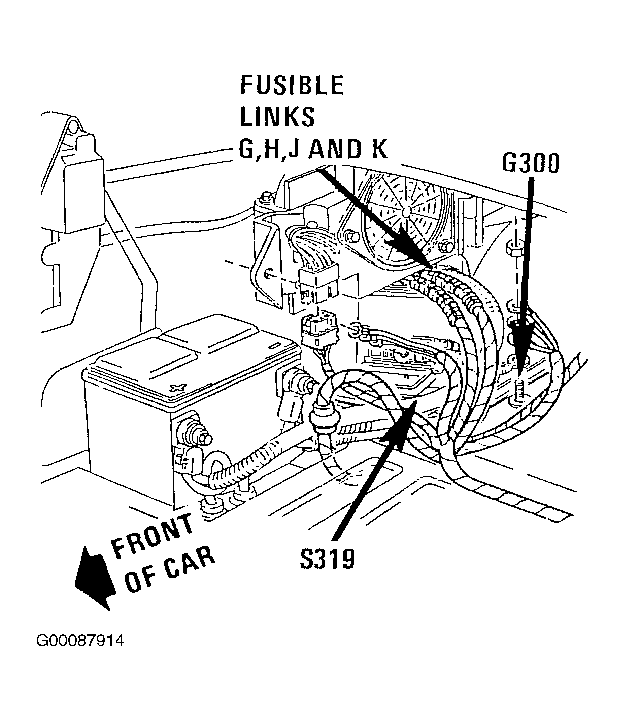

Fig 15: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

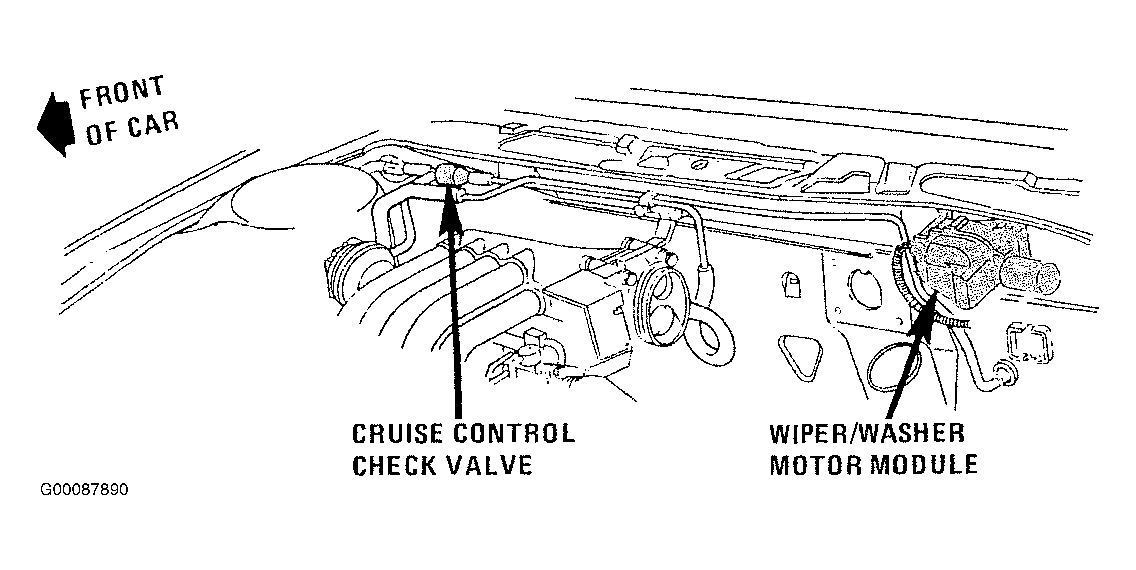

Fig 16: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

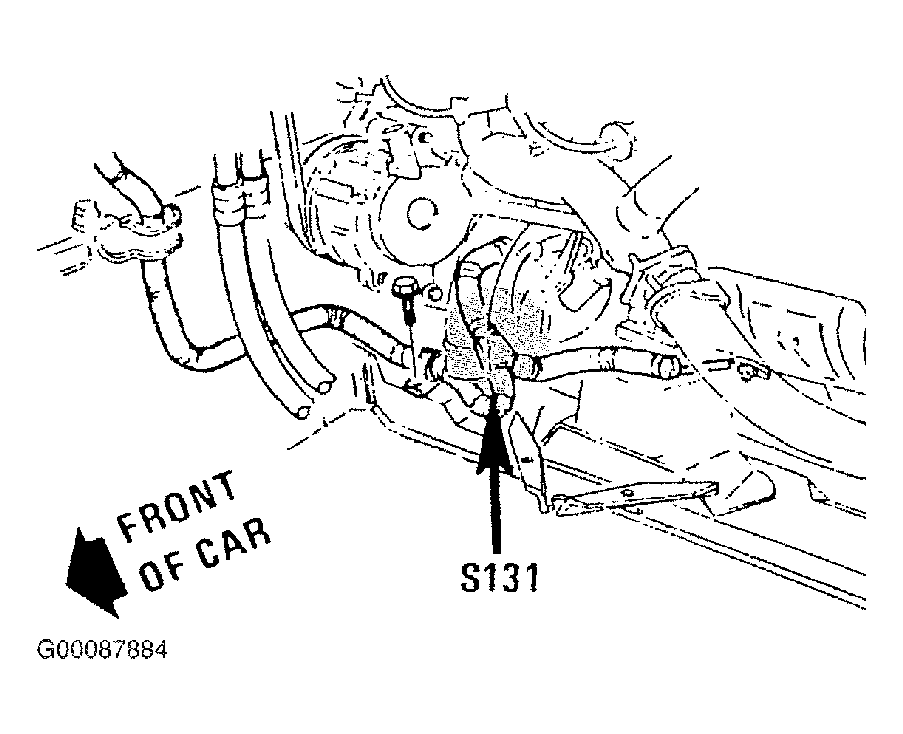

Fig 17: Under Right Front Of Car
Courtesy of GENERAL MOTORS CORP.
Fig 18: Under Left Front Of Car
Courtesy of GENERAL MOTORS CORP.

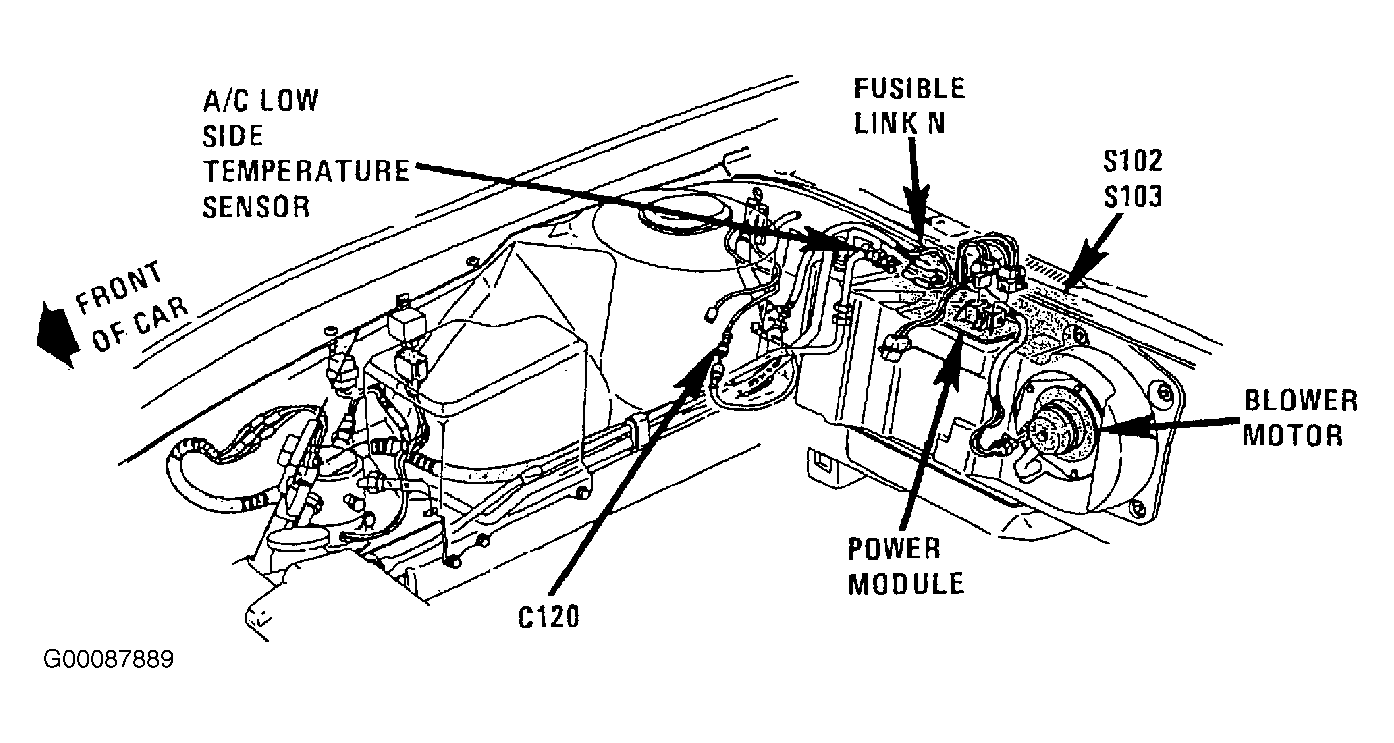

Fig 19: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

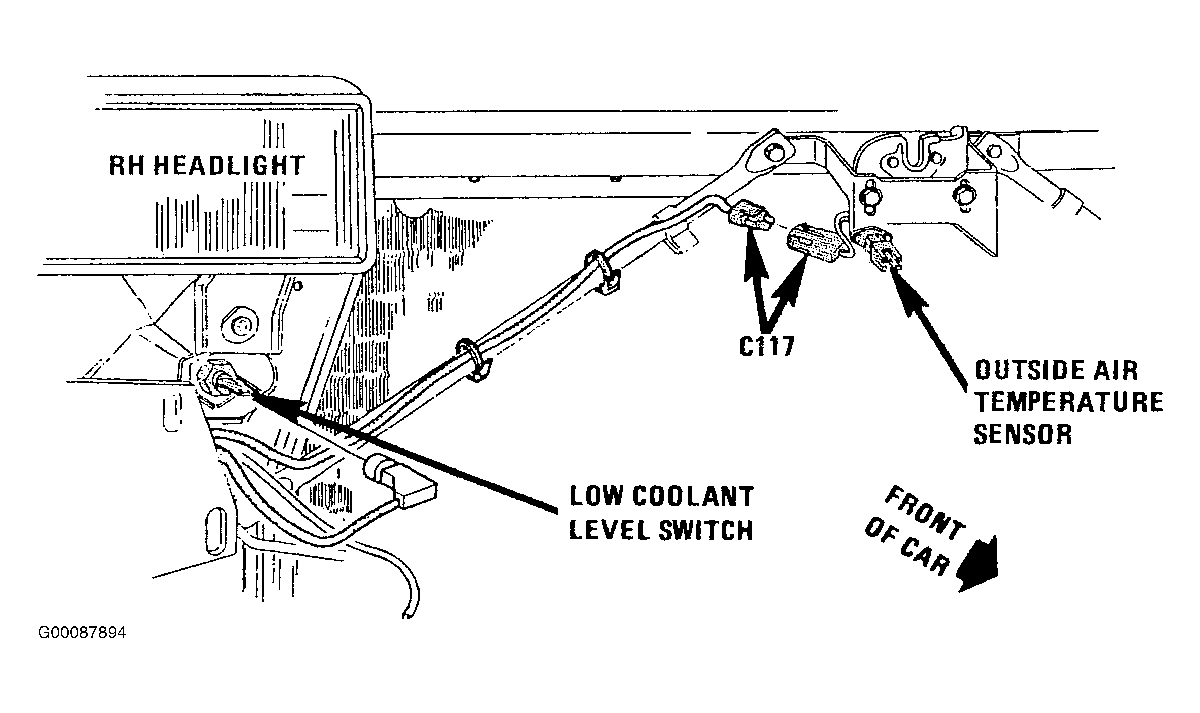

Fig 20: Right Front Of Radiator
Courtesy of GENERAL MOTORS CORP.

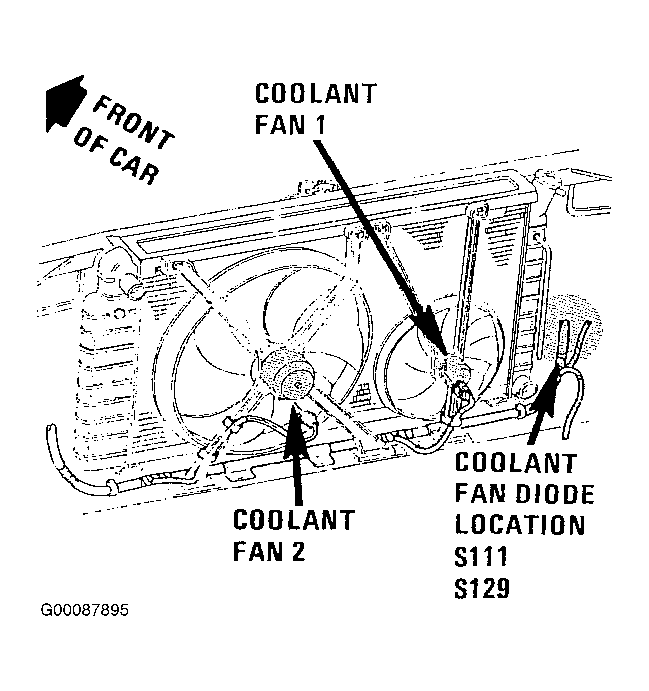

Fig 21: Rear Of Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Front Fenderwell
Courtesy of GENERAL MOTORS CORP.
Fig 23: Behind Left Side Of Instrument Panel (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Behind Left Side Of Instrument Panel (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Behind Left Side Of Instrument Panel (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Behind Left Side Of Instrument Panel (4 Of 4)
Courtesy of GENERAL MOTORS CORP.

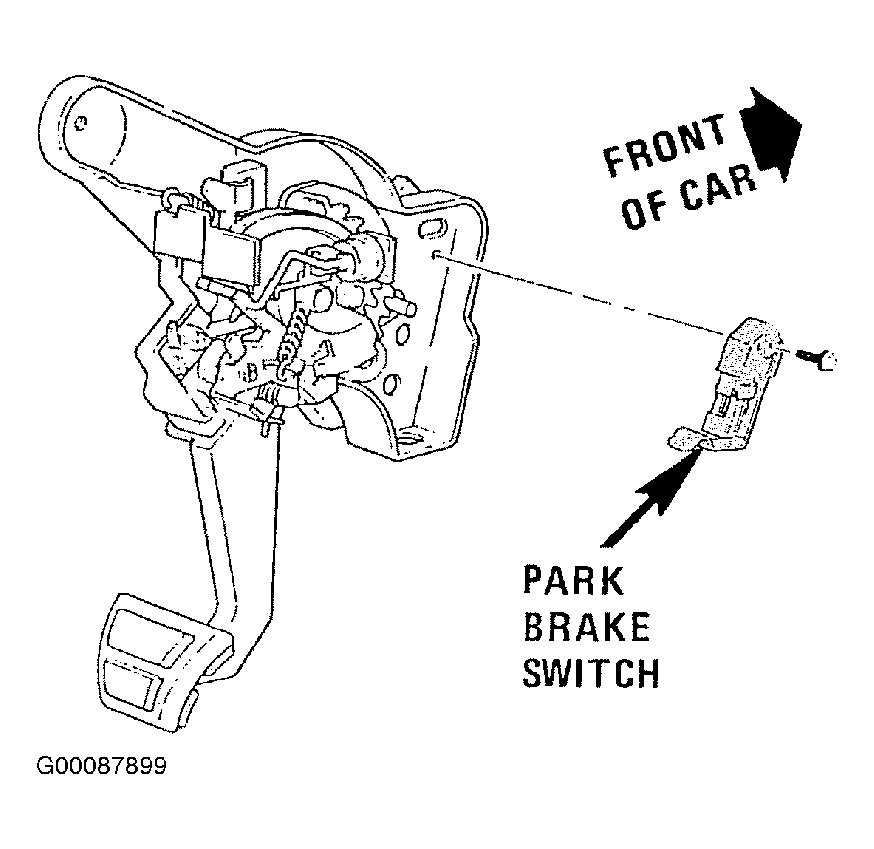

Fig 27: Below Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

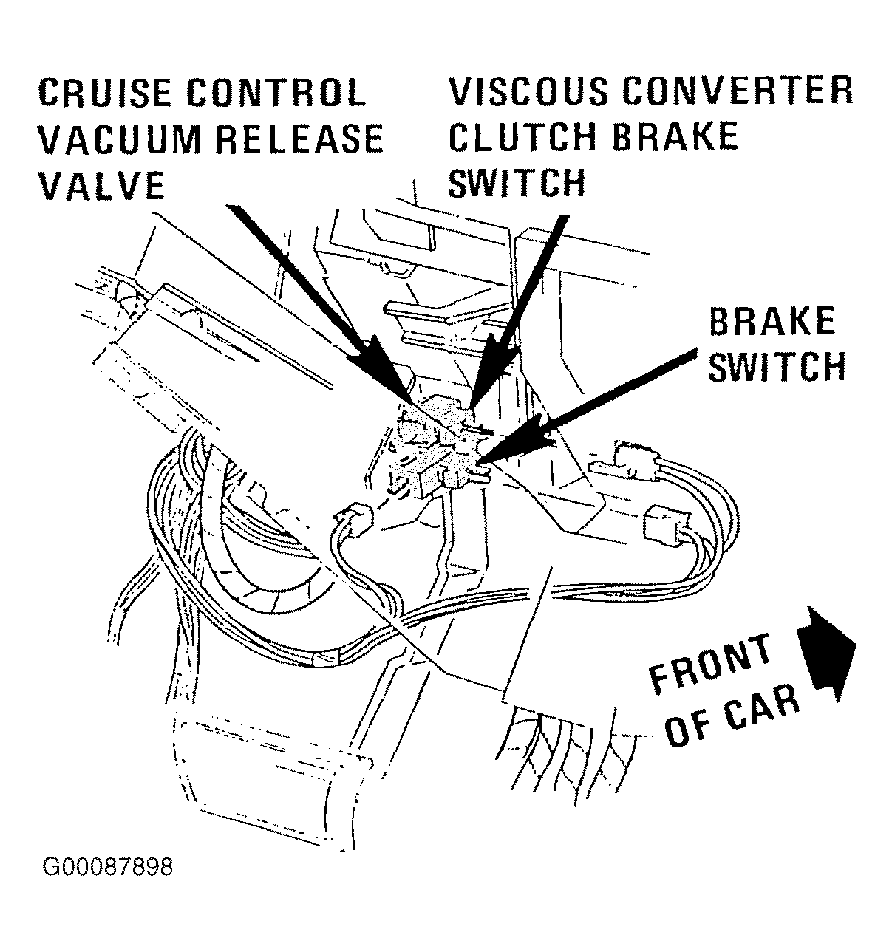

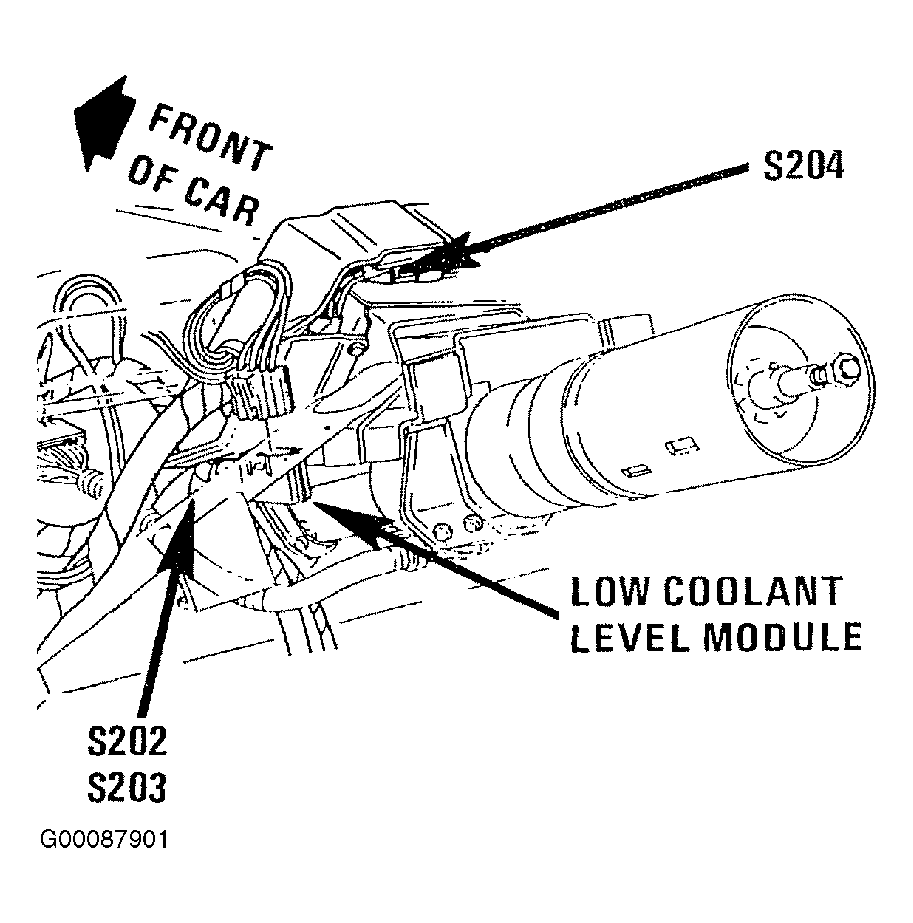

Fig 28: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 29: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

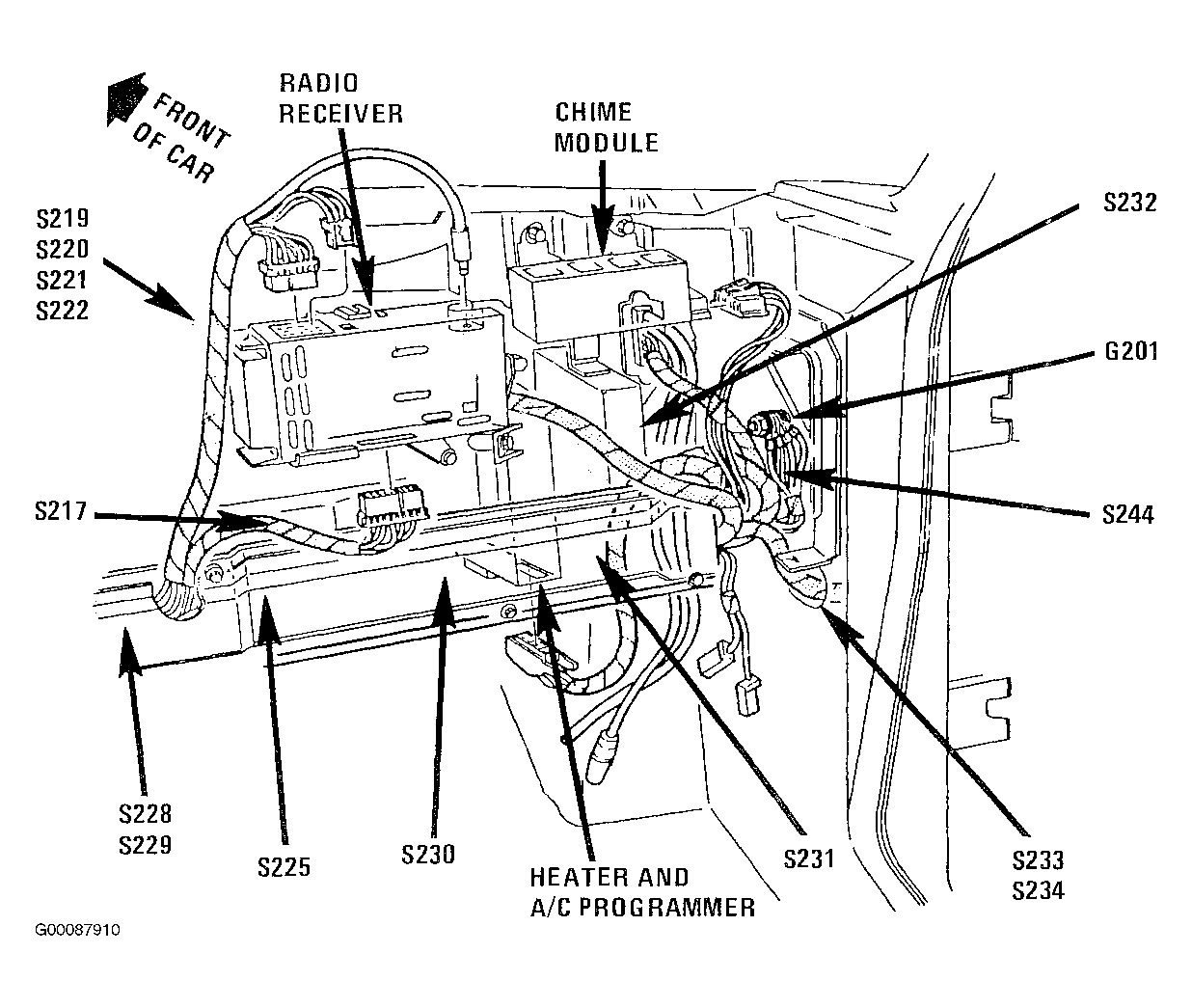

Fig 30: Behind Center Of Instrument Panel (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Behind Center Of Instrument Panel (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Behind Center Of Instrument Panel (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Behind Center Of Instrument Panel (4 Of 4)
Courtesy of GENERAL MOTORS CORP.

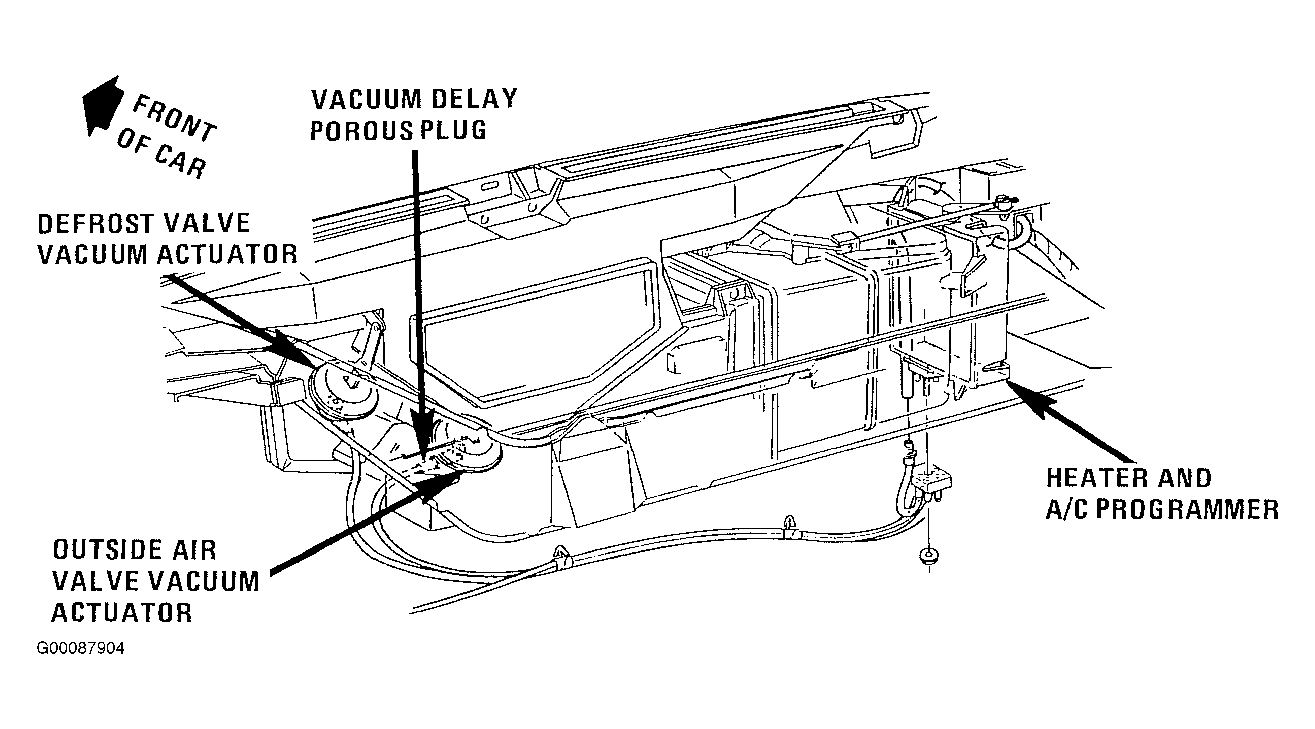

Fig 34: Behind Right Side Of Instrument Panel (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Behind Right Side Of Instrument Panel (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Behind Right Side Of Instrument Panel (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

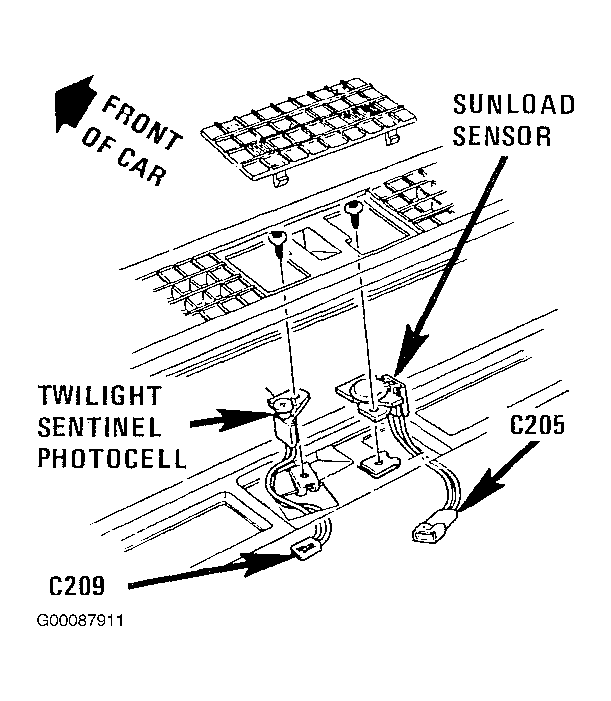

Fig 37: Below Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 38: Center Console
Courtesy of GENERAL MOTORS CORP.

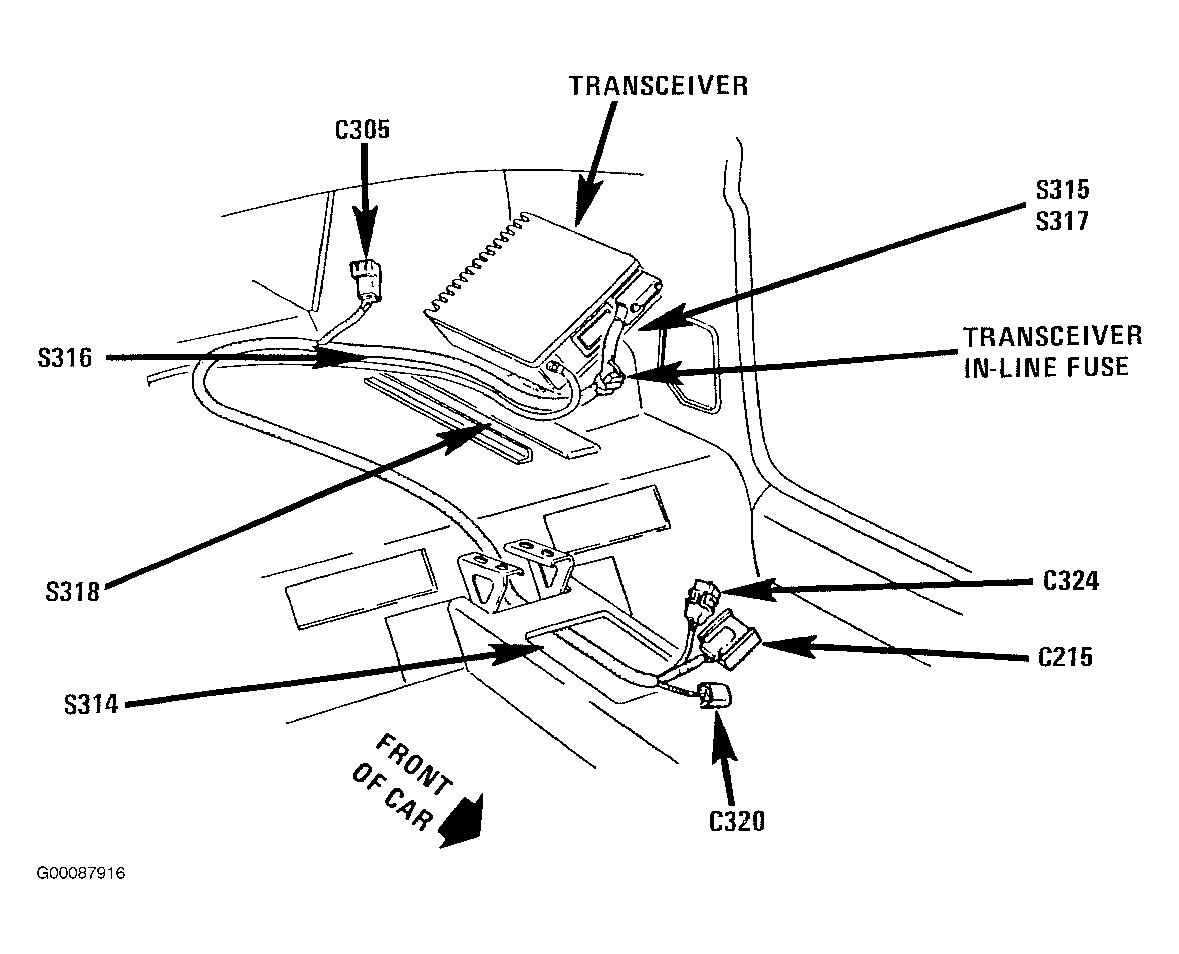

Fig 39: Behind Right Seat (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Behind Right Seat (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Center Of Windshield Header
Courtesy of GENERAL MOTORS CORP.

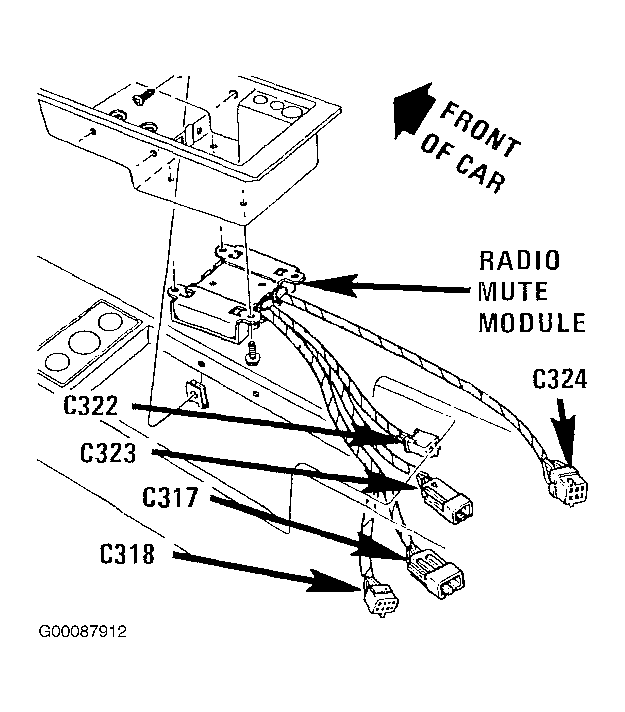

Fig 42: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Underside Of Trunk Lid
Courtesy of GENERAL MOTORS CORP.

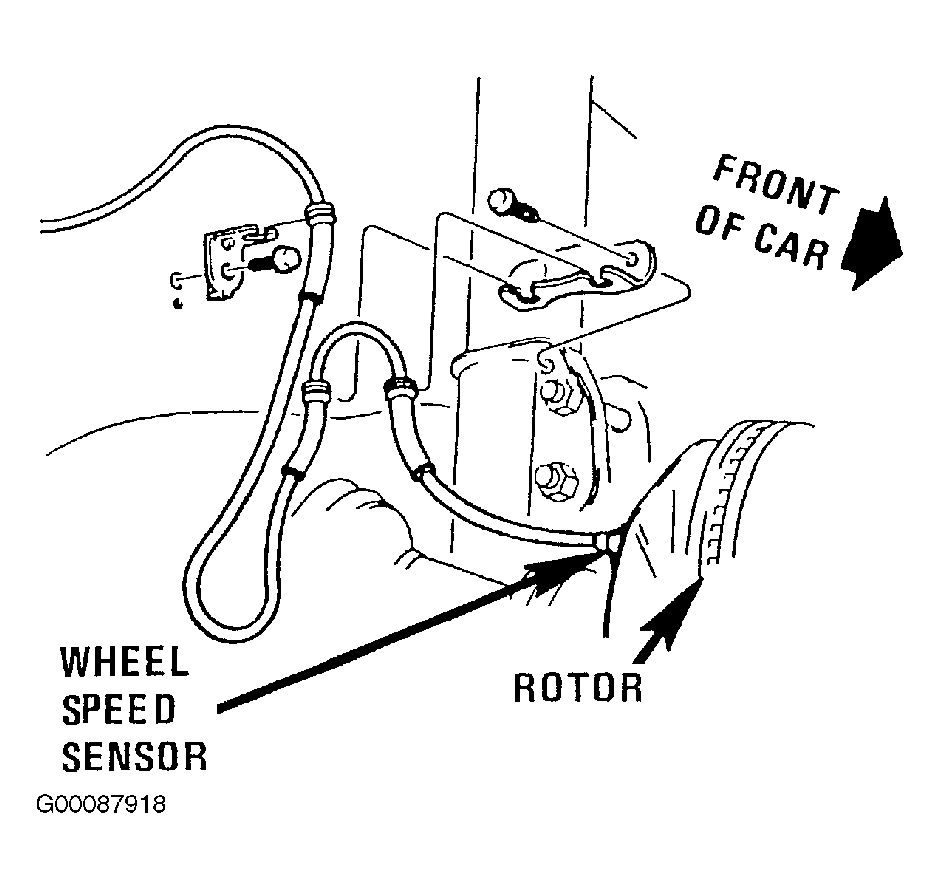

Fig 44: Behind Right Front Wheel(Others Similar)
Courtesy of GENERAL MOTORS CORP.

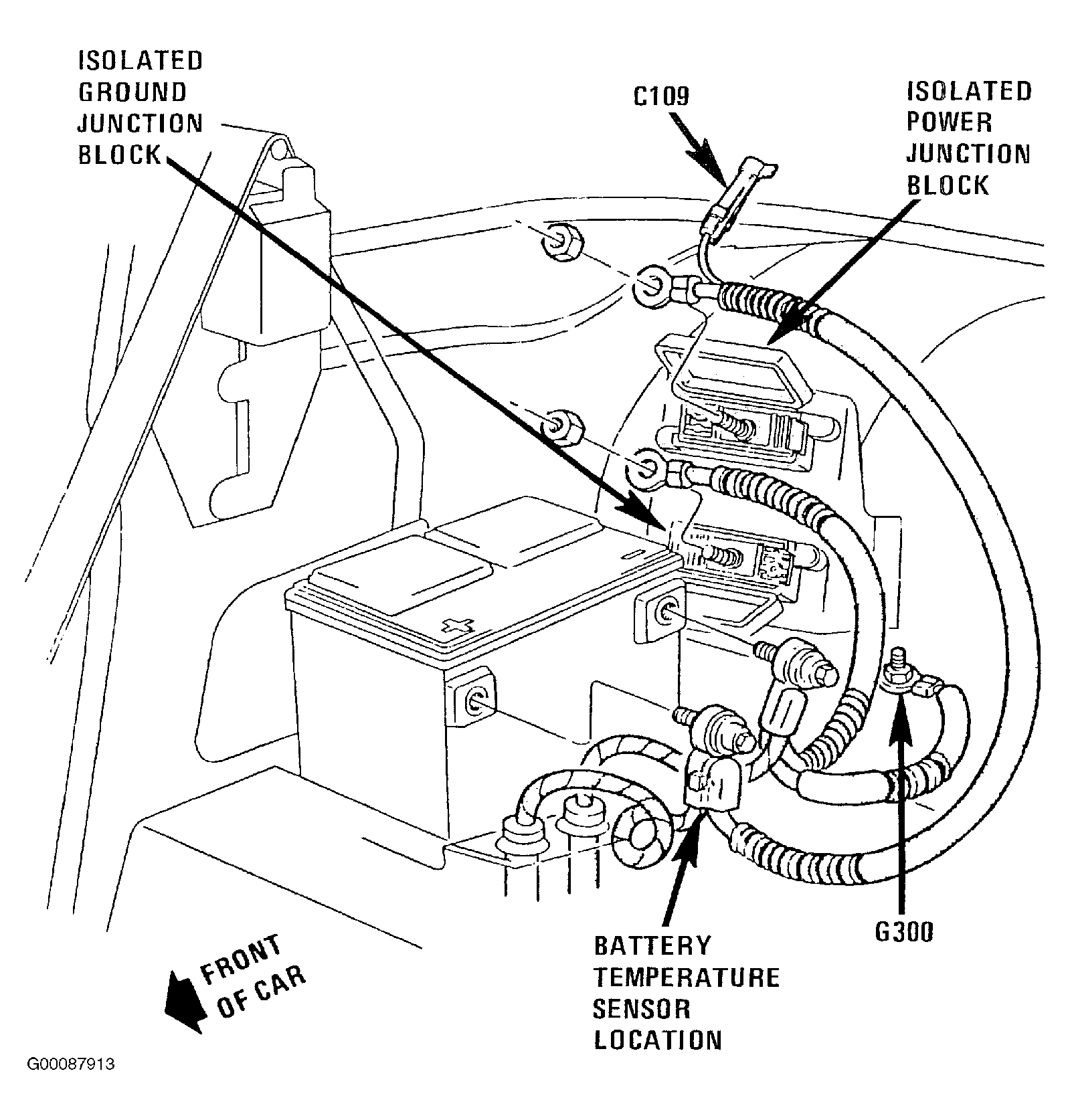

Fig 45: Right Rear Of Trunk (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Rear Of Trunk (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Rear Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Rear Corner Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 49: Front Of Car
Courtesy of GENERAL MOTORS CORP.

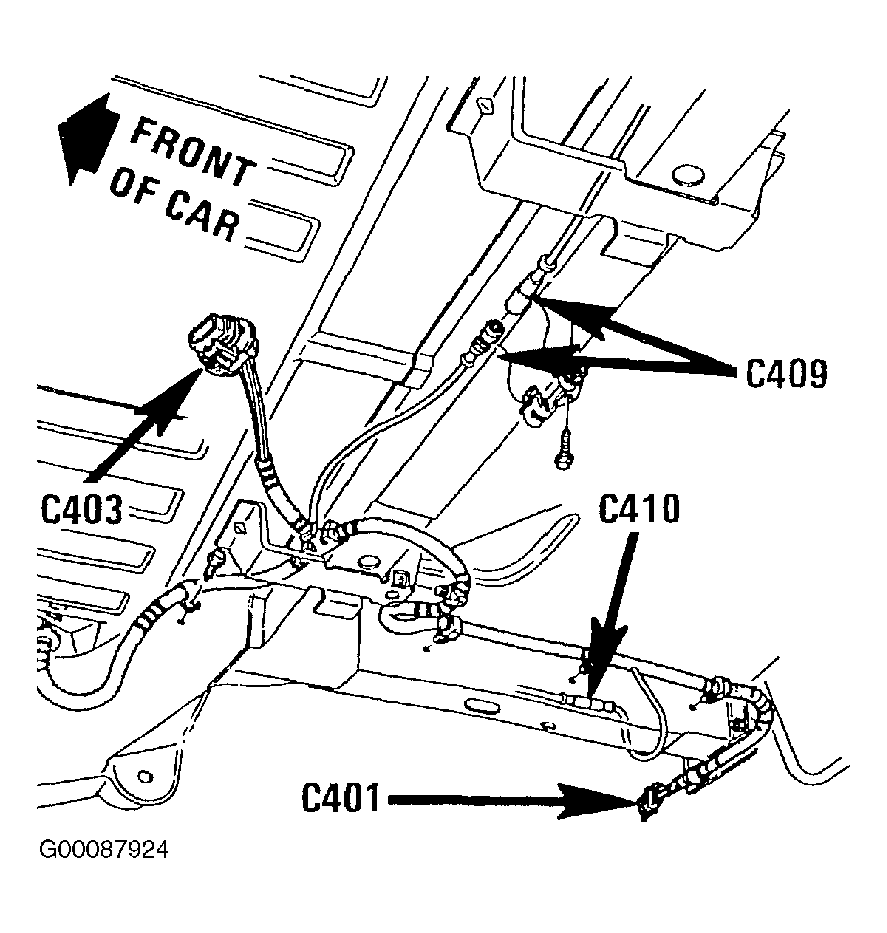

Fig 50: Under Rear Of Car (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Under Rear Of Car (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 53: Lower Left Front Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Lower Left Front Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

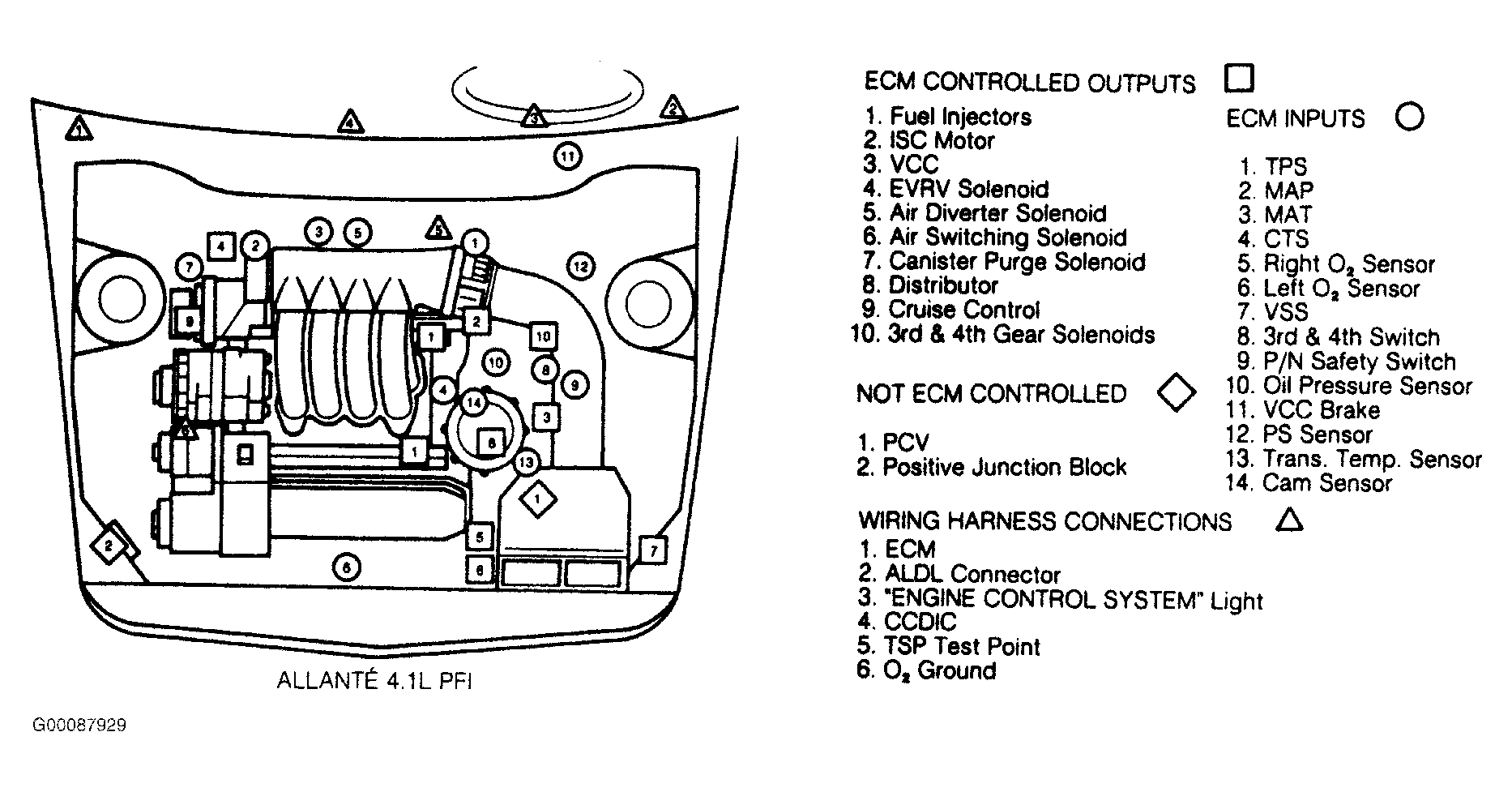

Fig 55: Computerized Engine Controls (CEC) Component Locations 4.1L (1987 Only)
Courtesy of GENERAL MOTORS CORP.
