Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Alarm Module | Under right side of dash, to left of radio. |
| Automatic Door Lock Controller | Behind right side of dash, near glove box. |
| Elect. Climate Control Power Module | In plenum on right side of firewall, in engine compartment. |
| Elect. Climate Control Programmer | Under right side of dash, on right side of plenum. |

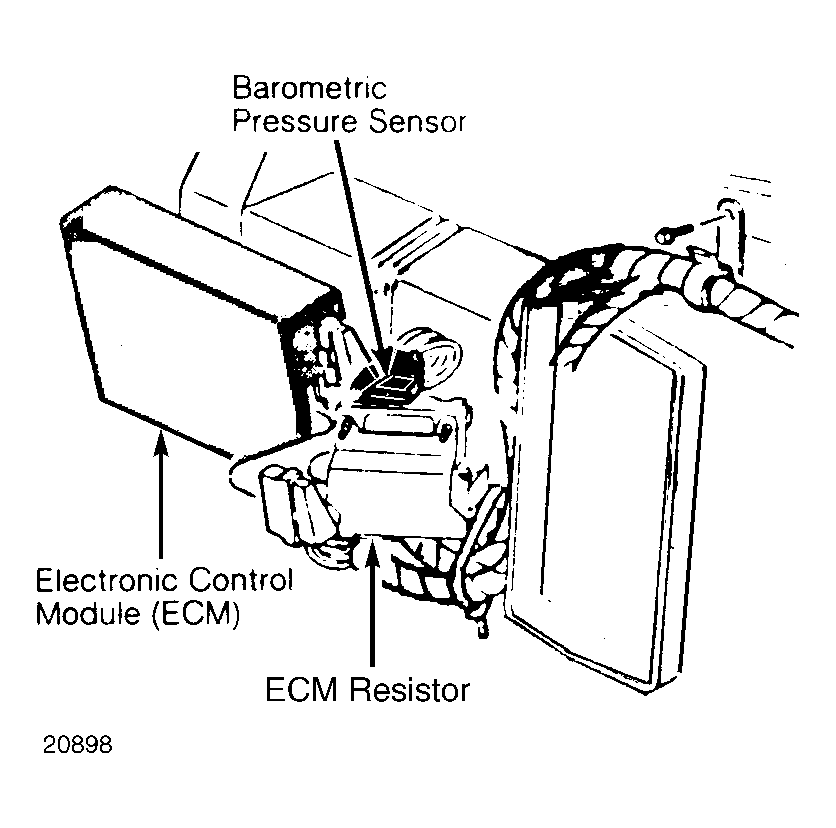

| Electronic Control Module (ECM) | Under right side of dash, near glove box. See Figure. |

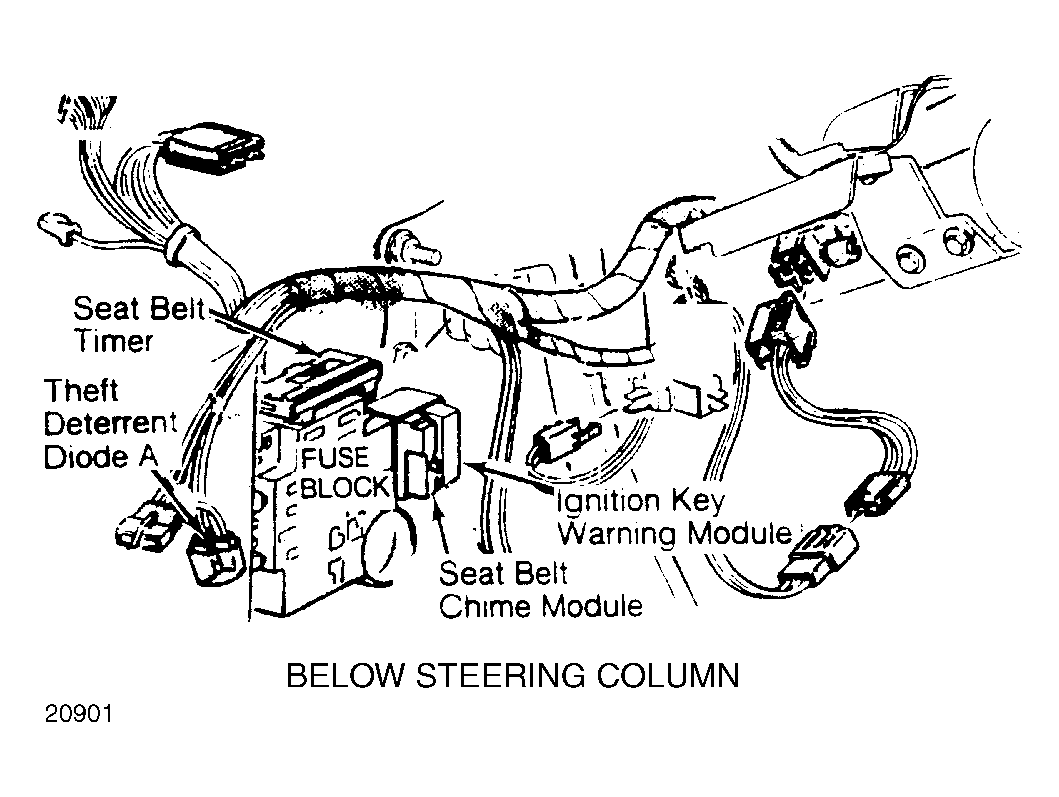

| Ignition Key Warning Module | Below left side of dash, on fuse block. See Figure. |
| Power Seat Memory Module | Below left side of driver's seat. |
| Seat Belt Chime Module | Below left side of dash, on fuse block. See Figure. |
| Seat Belt Timer | On top of fuse block. See Figure. |
| Theft Deterrent Controller | Under left side of dash, near accelerator pedal bracket. |
