V6/V8 PFI Component Test
›
Component Locations
Component Locations
Fig 1: PFI Component Location (2.8L A Body)

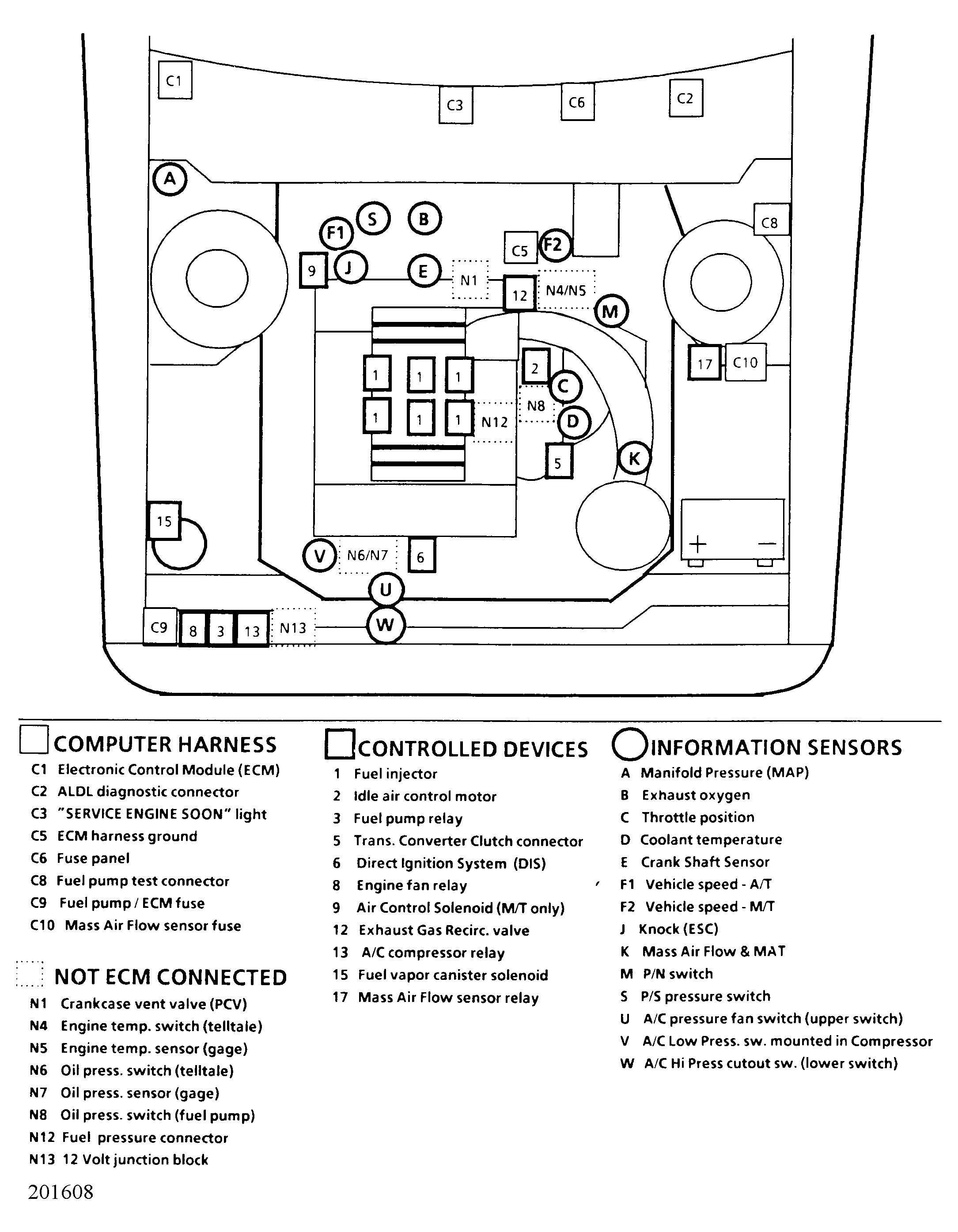

Fig 2: PFI Component Location (2.8L F Body)

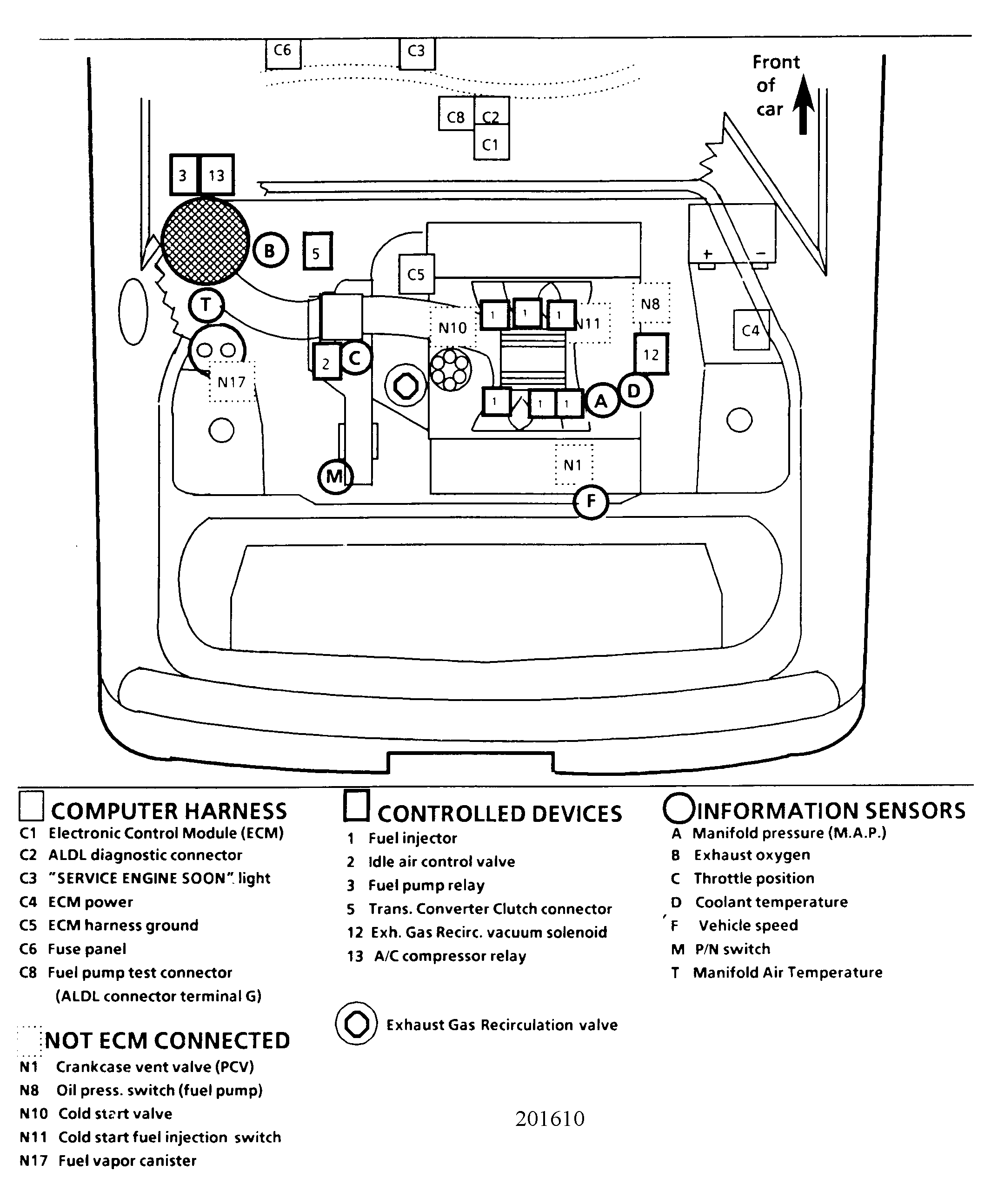

Fig 3: PFI Component Location (2.8L P Body)

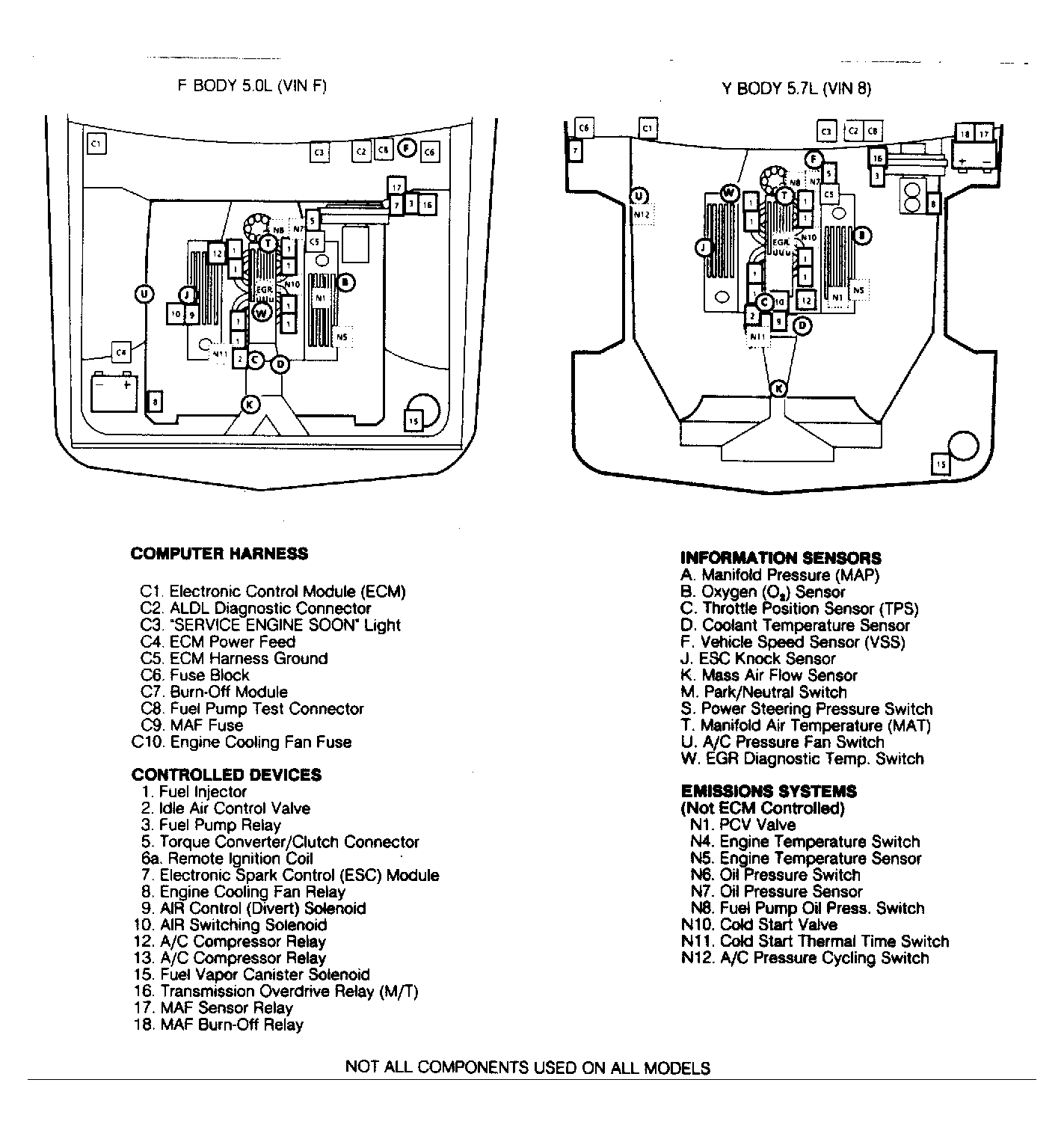

Fig 4: PFI Component Location (5.0L & 5.7L)
