Wiring Diagrams
Wiring Diagrams

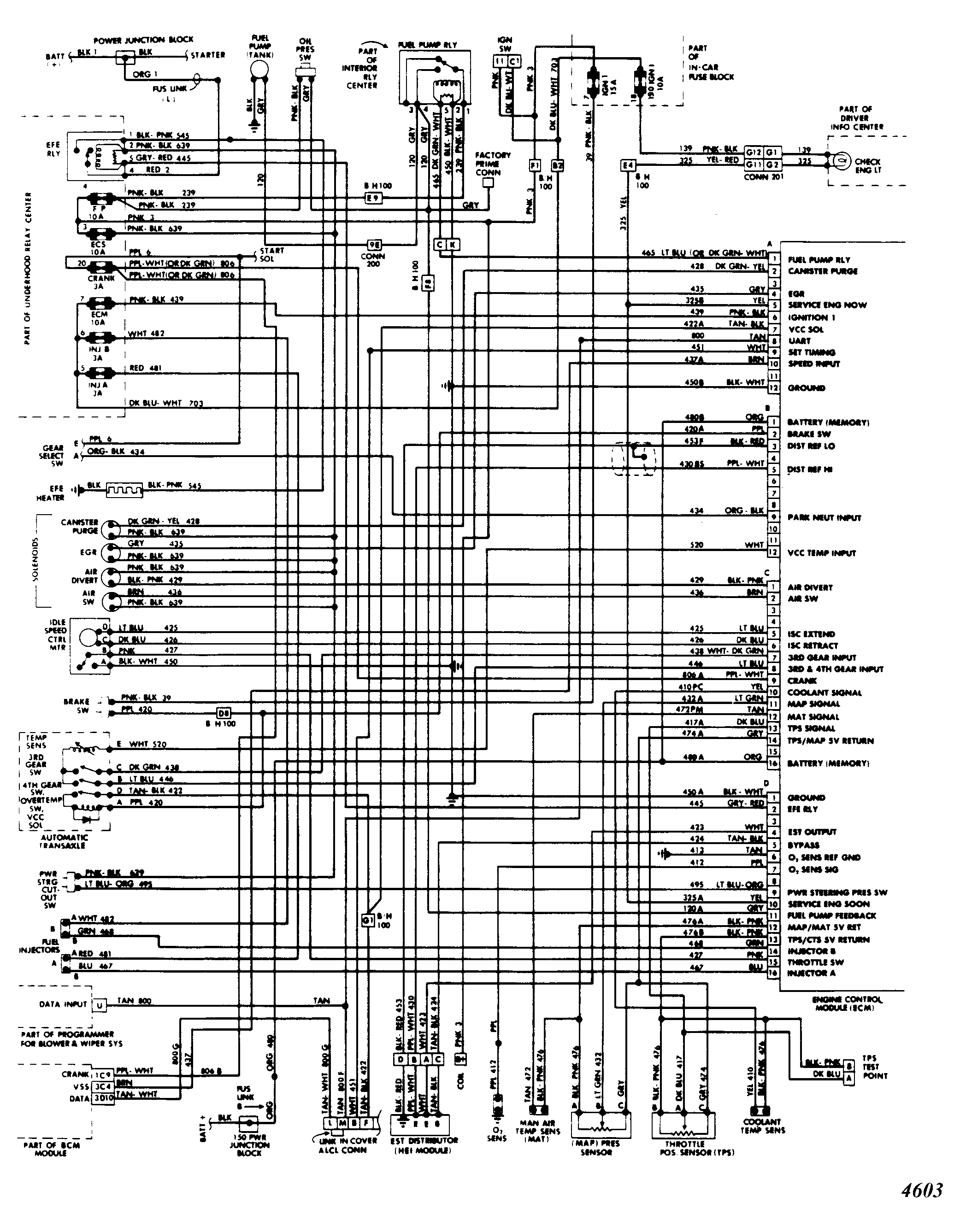

Fig 1: 1986 ECM Wiring Diagram for Eldorado & Seville

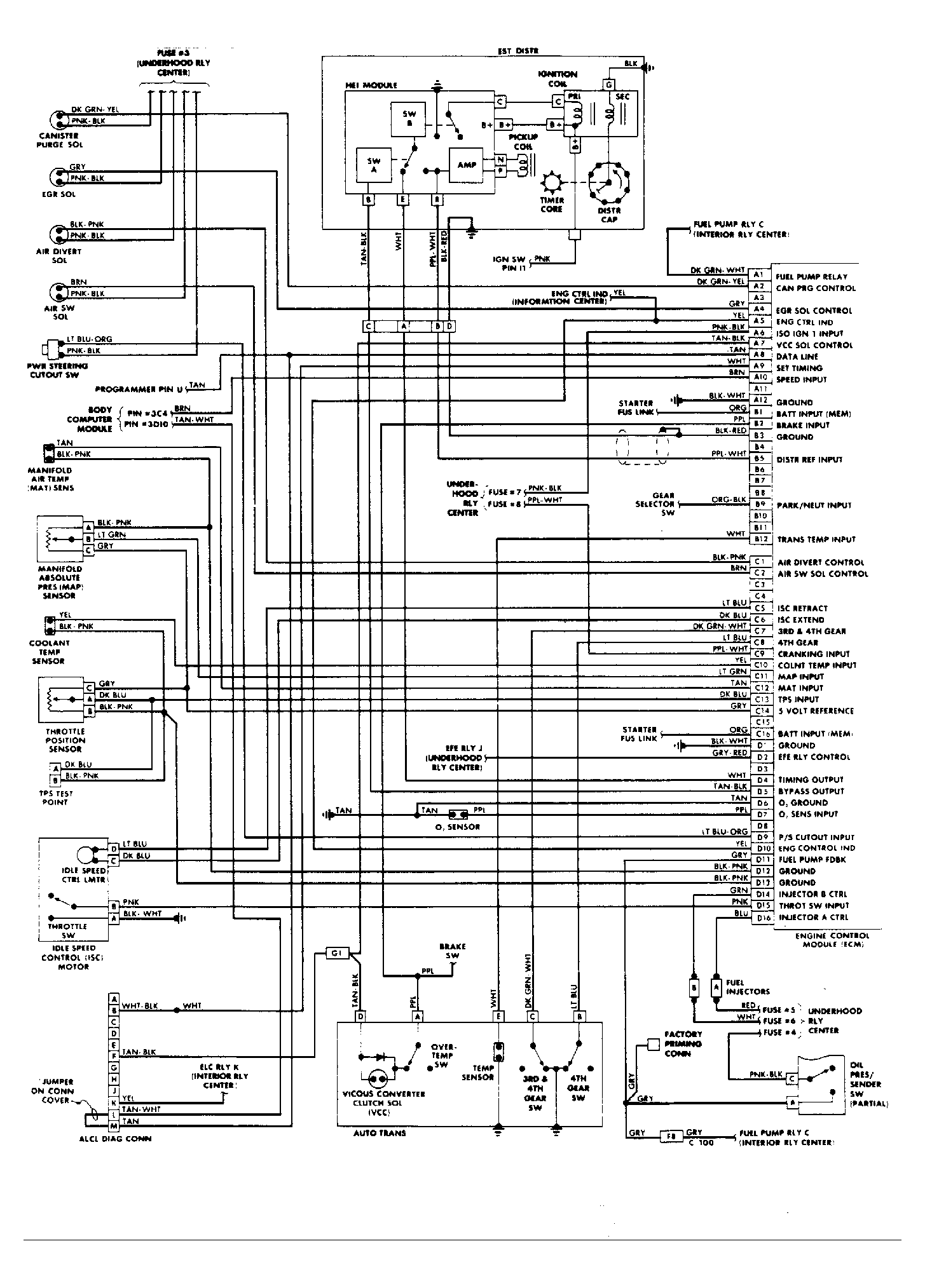

Fig 2: 1987 ECM Wiring Diagram for Eldorado & Seville
