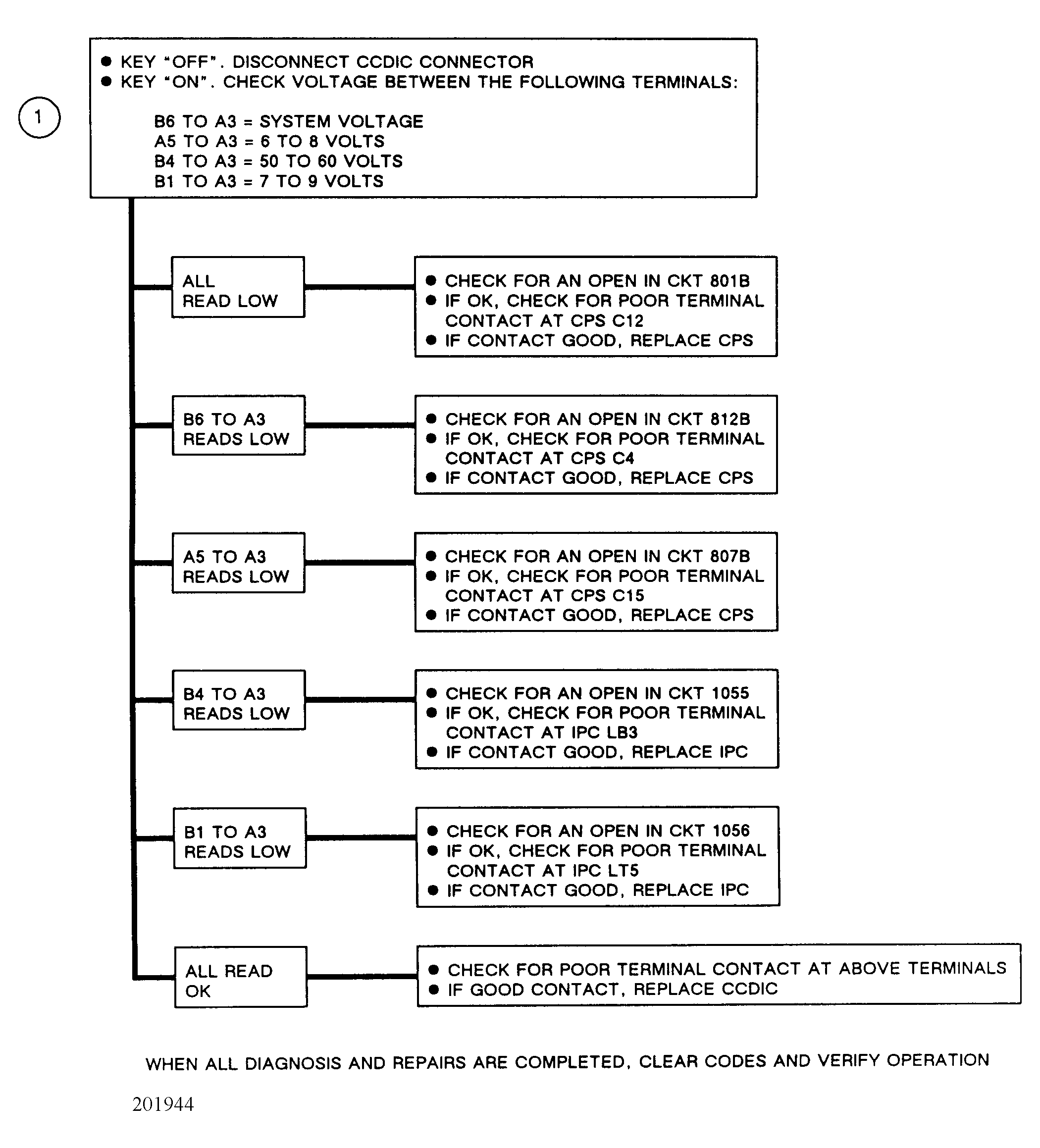

Chart C2 - CCDIC Completely Blank
You are at this chart because the CCDIC display is completely blank. Cause for this problem could be a loss of Central Power Supply (CPS) power or ground, or loss of vacuum fluorescent power from Instrument Panel Cluster (IPC).
NOTE:
Test numbers refer to test numbers on diagnostic chart.
- Unplugging the CCDIC connector and performing individual circuit checks will determine if wiring connector, terminals, or component is faulty.
