Notes On INTERMITTENTS

If intermittent code is being set, check for loose or dirty connections. Also, check corroded terminal ends.

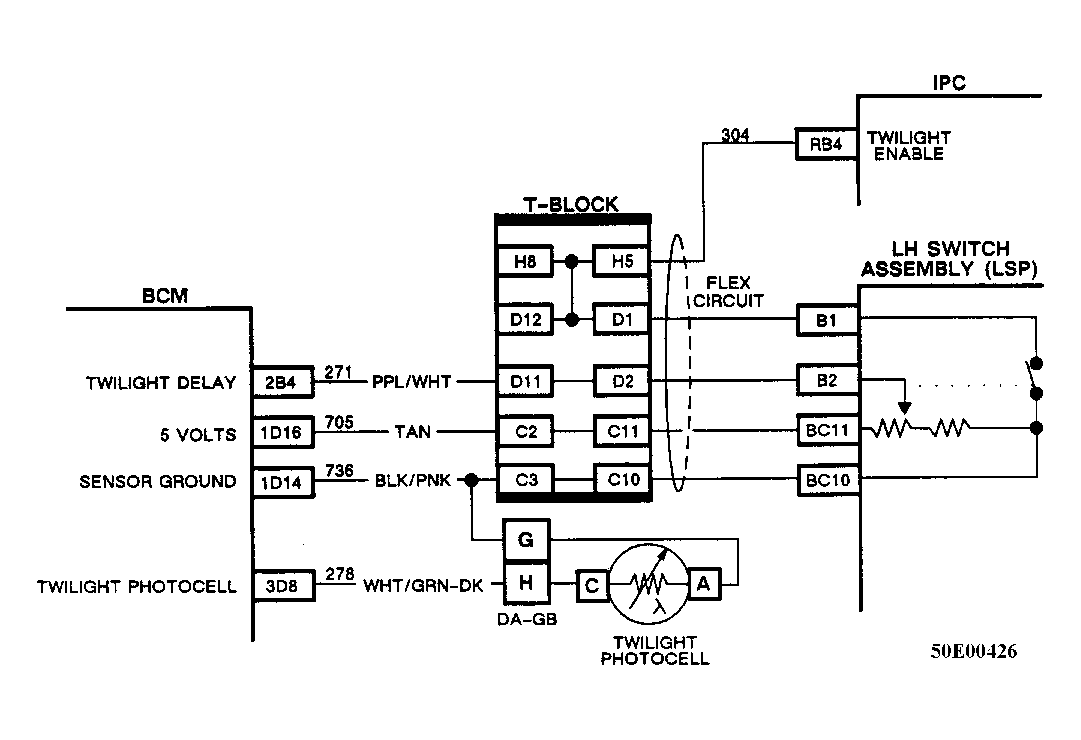

Fig 1: Schematic, Code B119 - Twilight Photocell Circuit

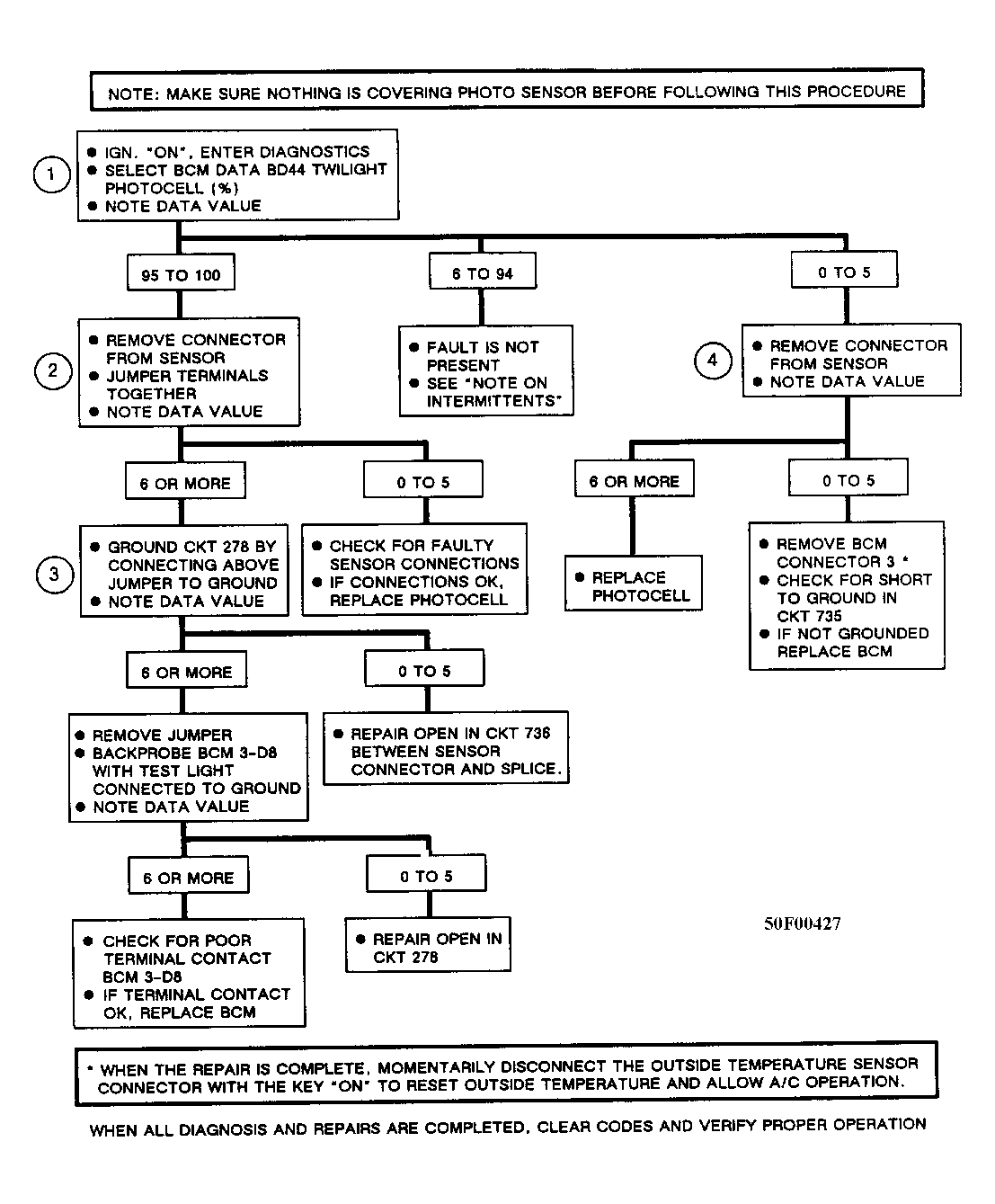

Fig 2: Flow Chart, Code B119 - Twilight Photocell Circuit

NOTE: Make sure nothing is covering photo sensor before following this procedure.

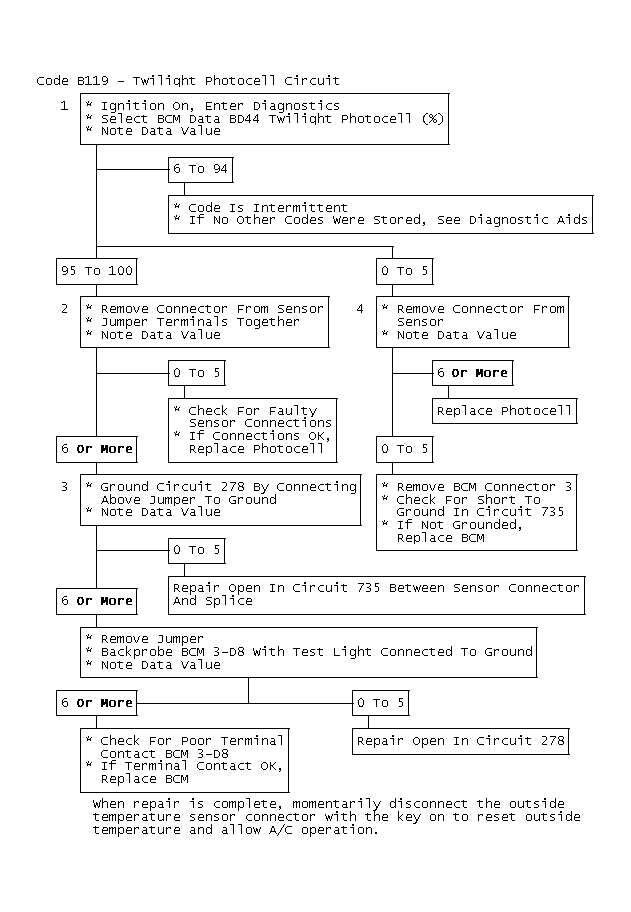

Fig 3: Flow Chart, Code B119 - Twilight Photocell Circuit
