Notes On INTERMITTENTS

If intermittent code is being set, check for loose or dirty connections. Also, check corroded terminal ends.

Fig 1: Schematic, Code B120 - Twilight Delay Switch Pot Circuit

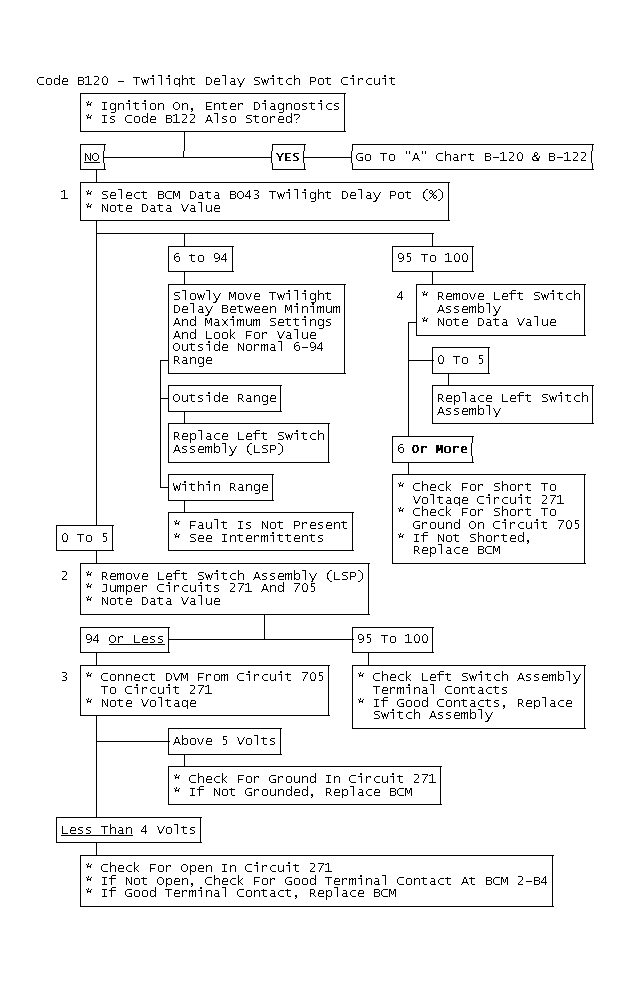

Fig 2: Flow Chart, Code B120 - Twilight Delay Switch Pot Circuit

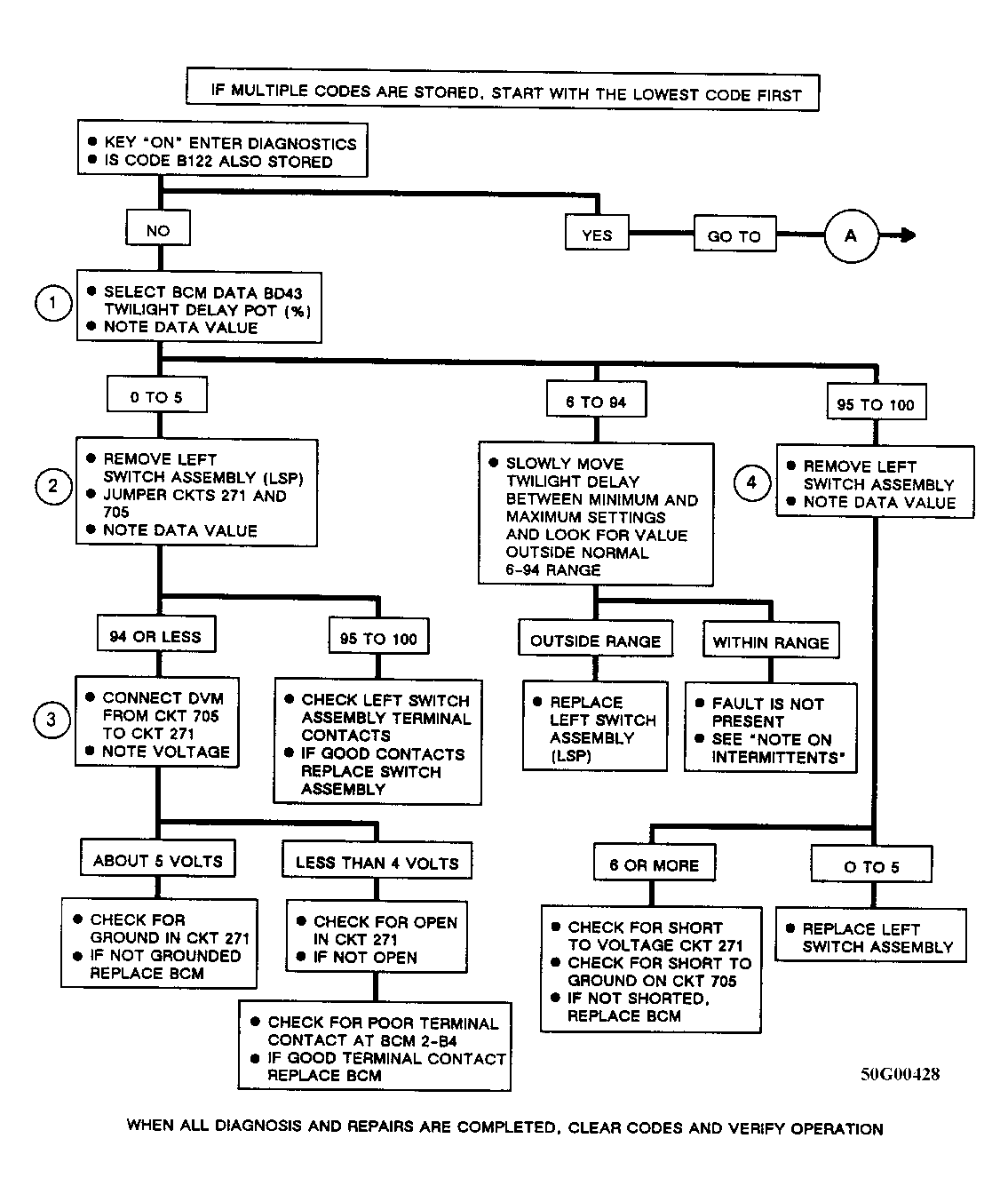

Fig 3: Flow Chart, Code B120 - Twilight Delay Switch Pot Circuit
