Connector Identification

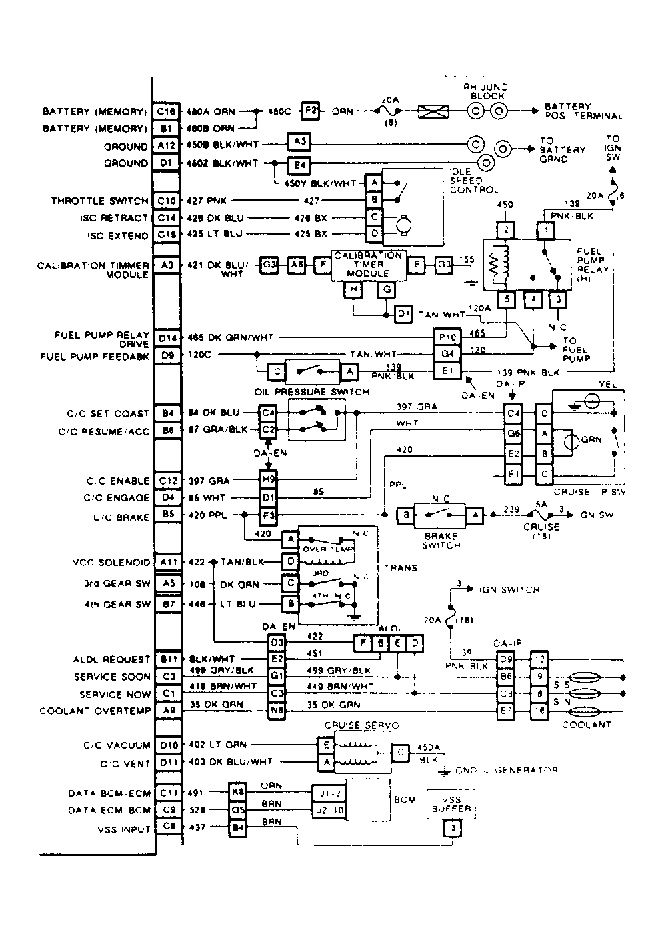

Fig 1: DeVille & Fleetwood ECM Connector ID (1 Of 2)

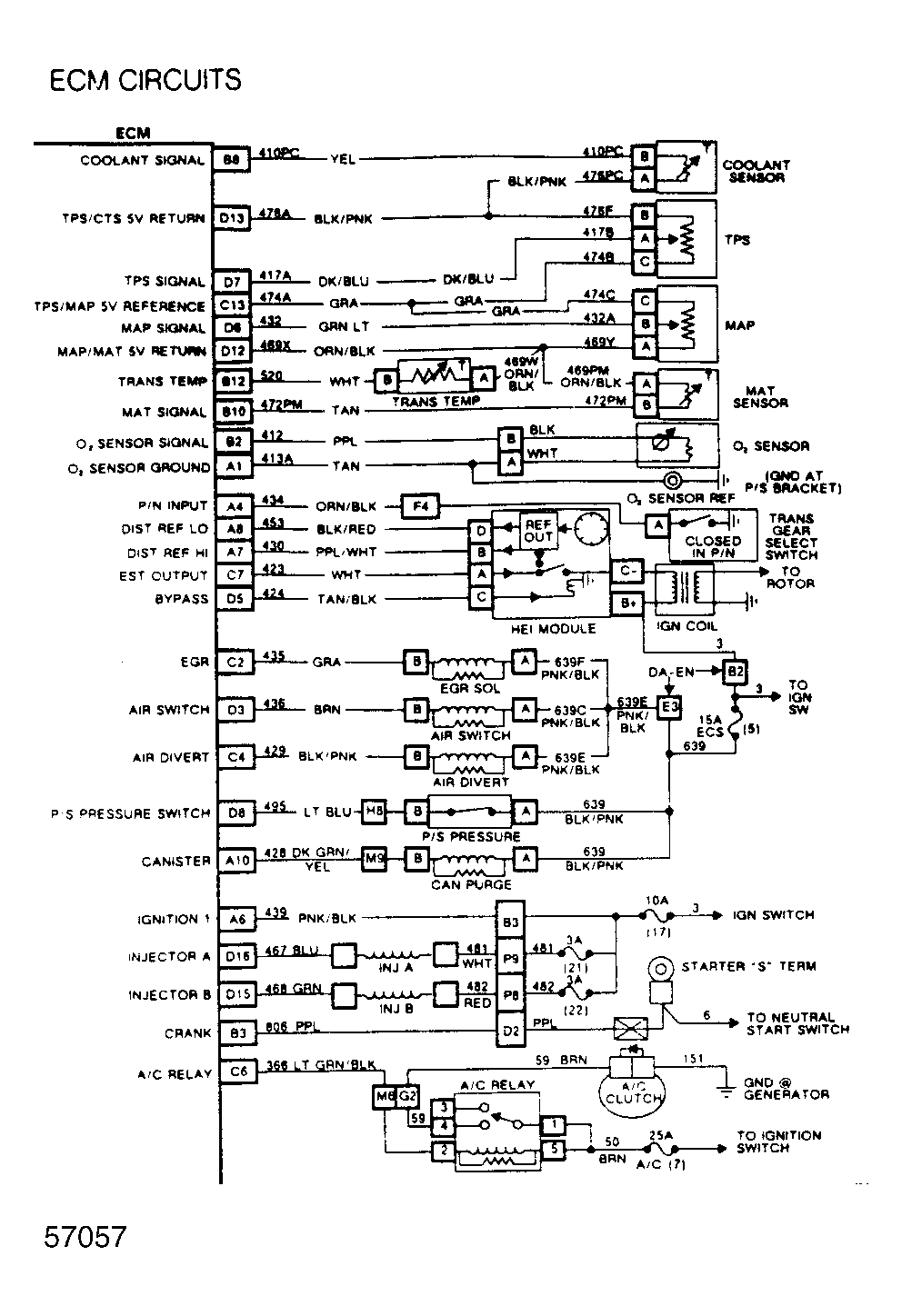

Fig 2: DeVille & Fleetwood ECM Connector ID (2 Of 2)

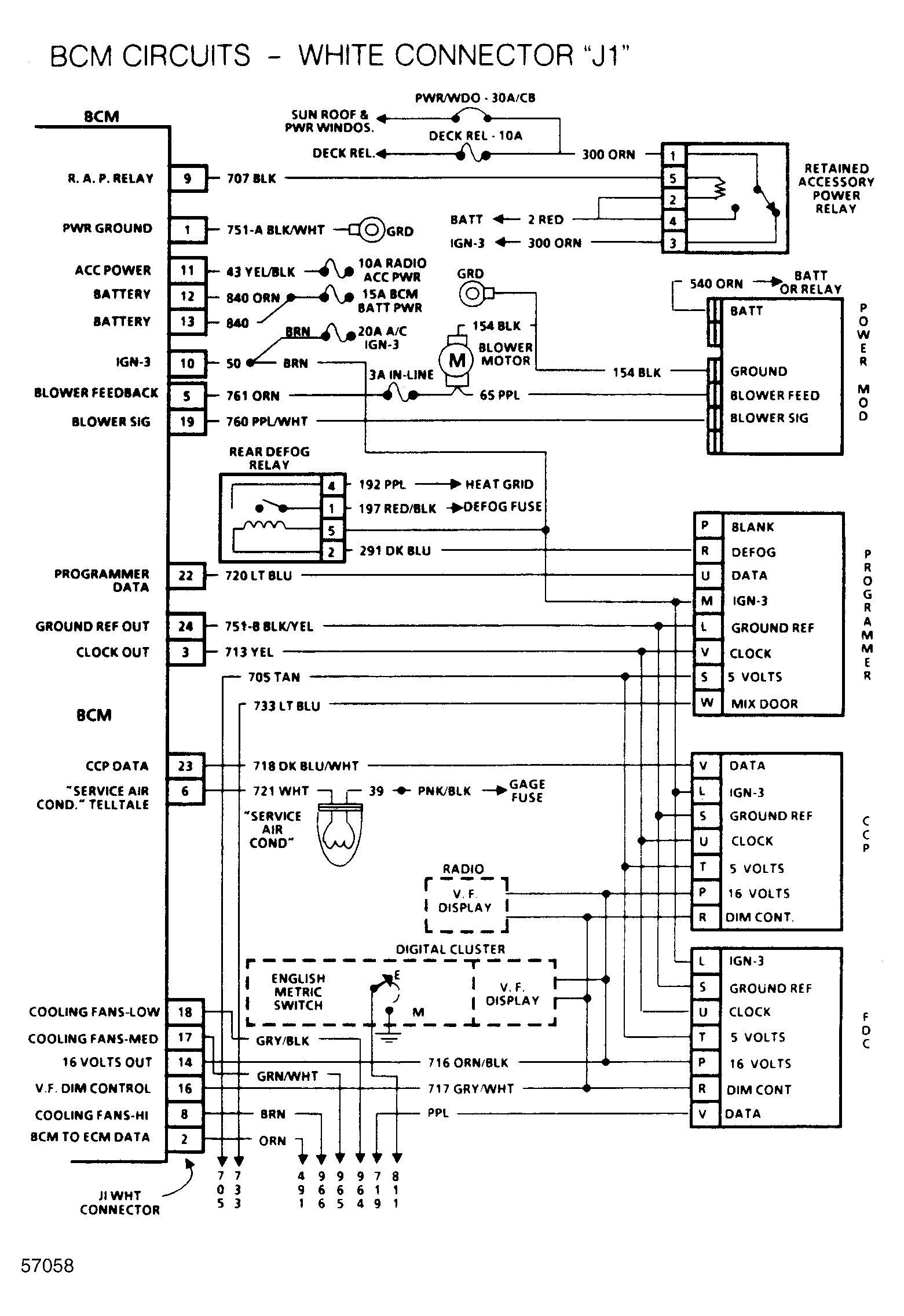

Fig 3: DeVille & Fleetwood White Connector "J1" BCM Connector ID

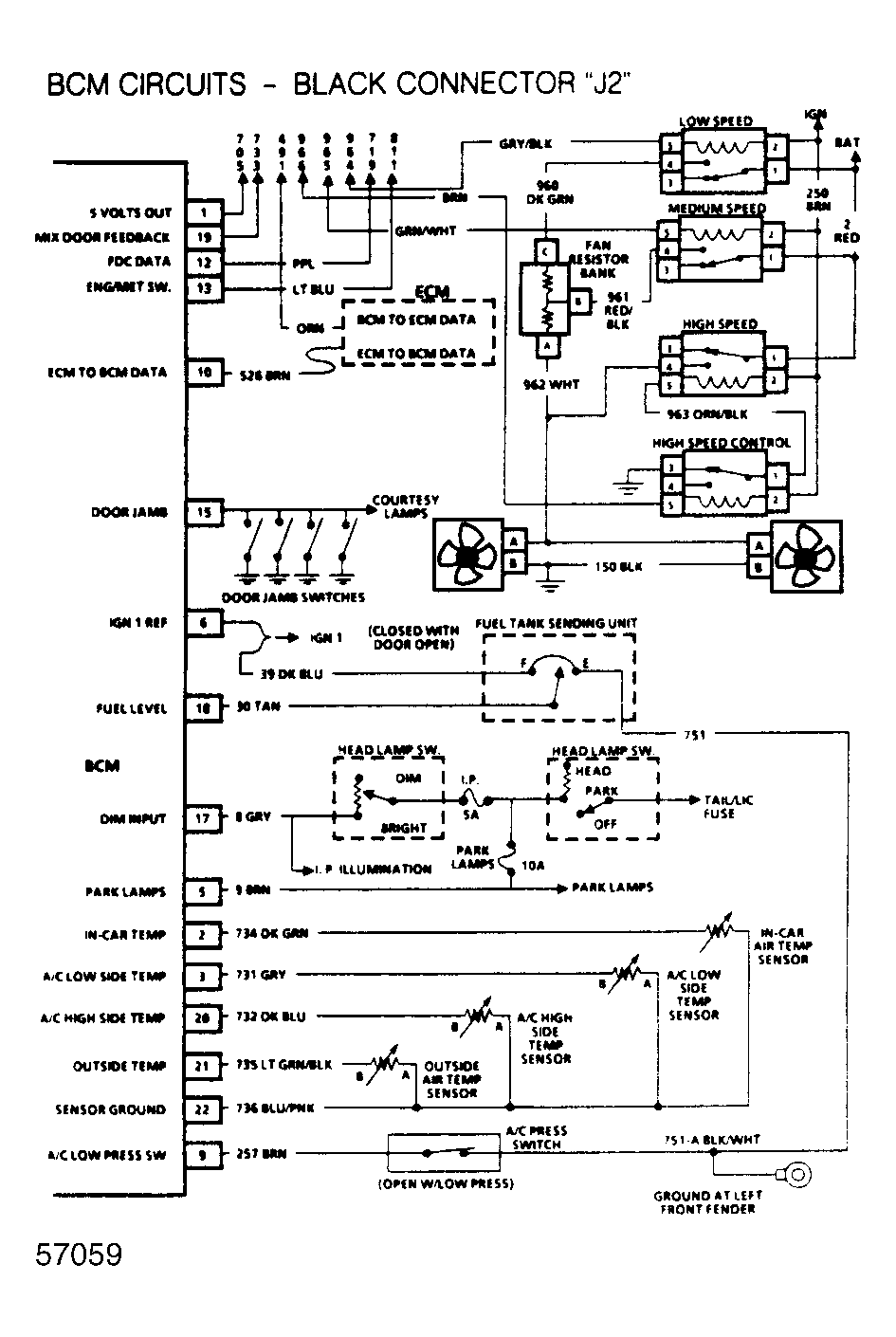

Fig 4: DeVille & Fleetwood Black Connector "J2" BCM Connector ID

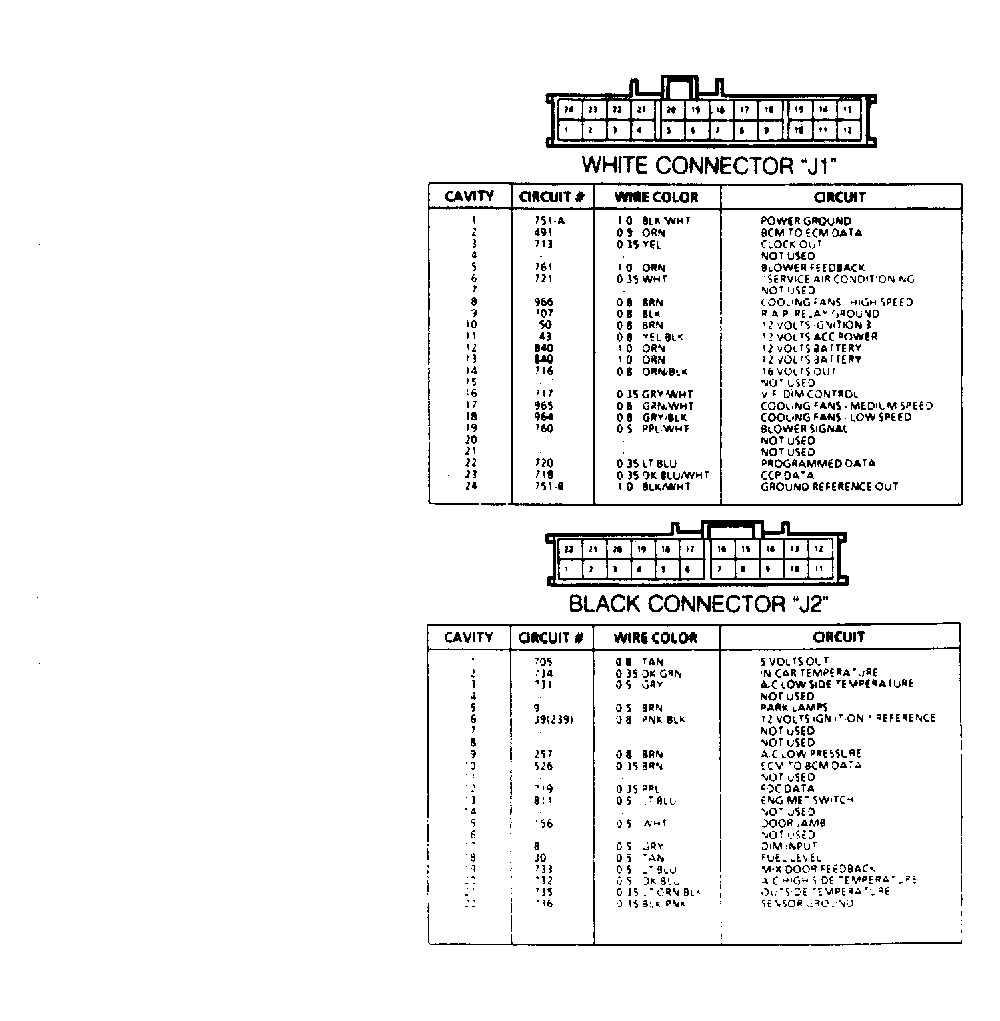

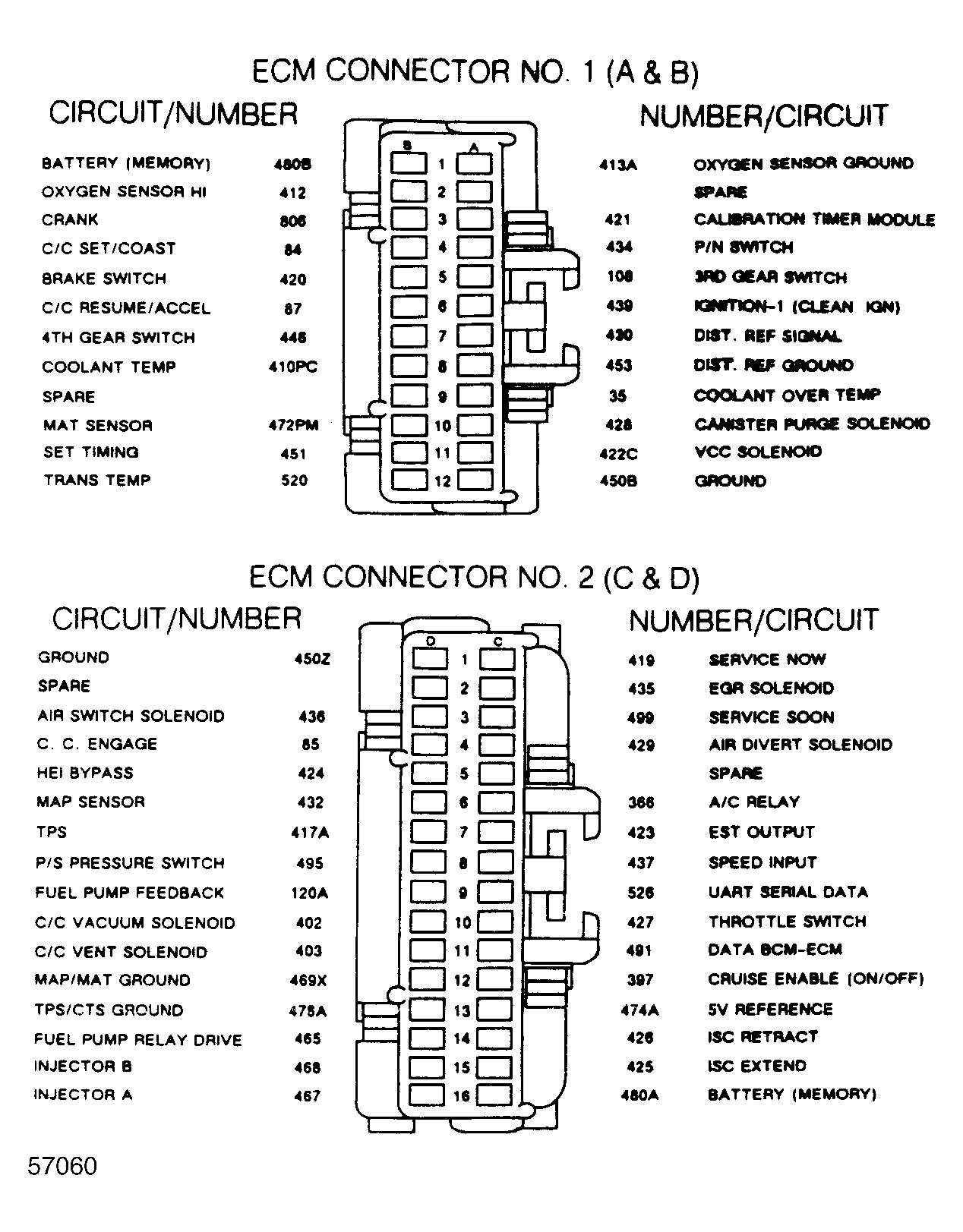

Fig 5: End View & Pin ID Of DeVille & Fleetwood ECM Connectors

Fig 6: End View & Pin ID Of DeVille & Fleetwood BCM Connectors
