System Component Locations

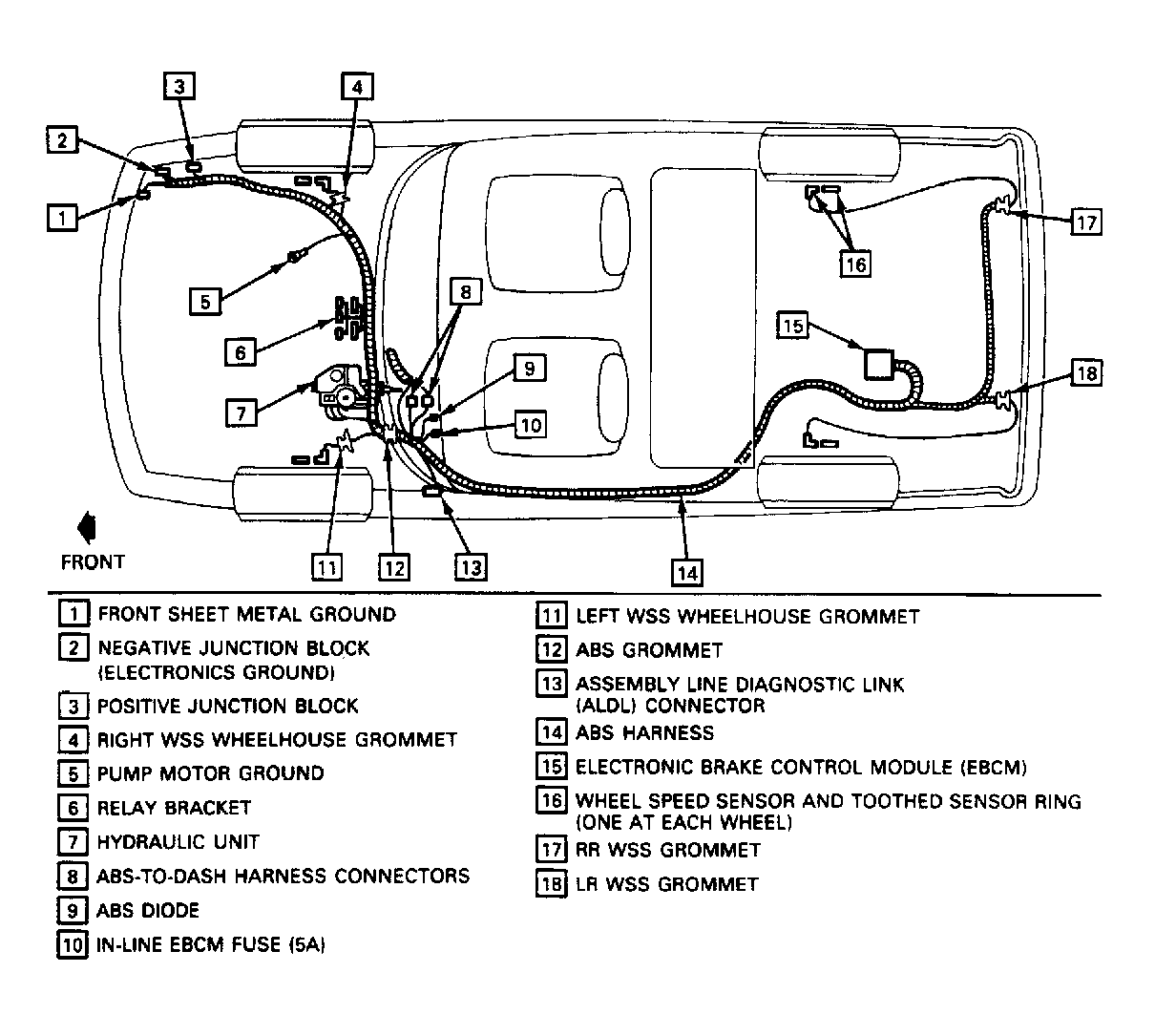

Fig 1: Anti-Lock Brake System Component Locations

G53929

Fig 2: Anti-Lock Brake System Relay Locations

G56116
