Notes On INTERMITTENTS

If intermittent code B122 is being set, manipulate related wiring while observing BCM data code BD42. If failure is induced, reading will jump from its normal value to a reading outside range of 6-94 percent.

Fig 1: Code B122 Schematic, Panel Light Dimming Pot Circuit

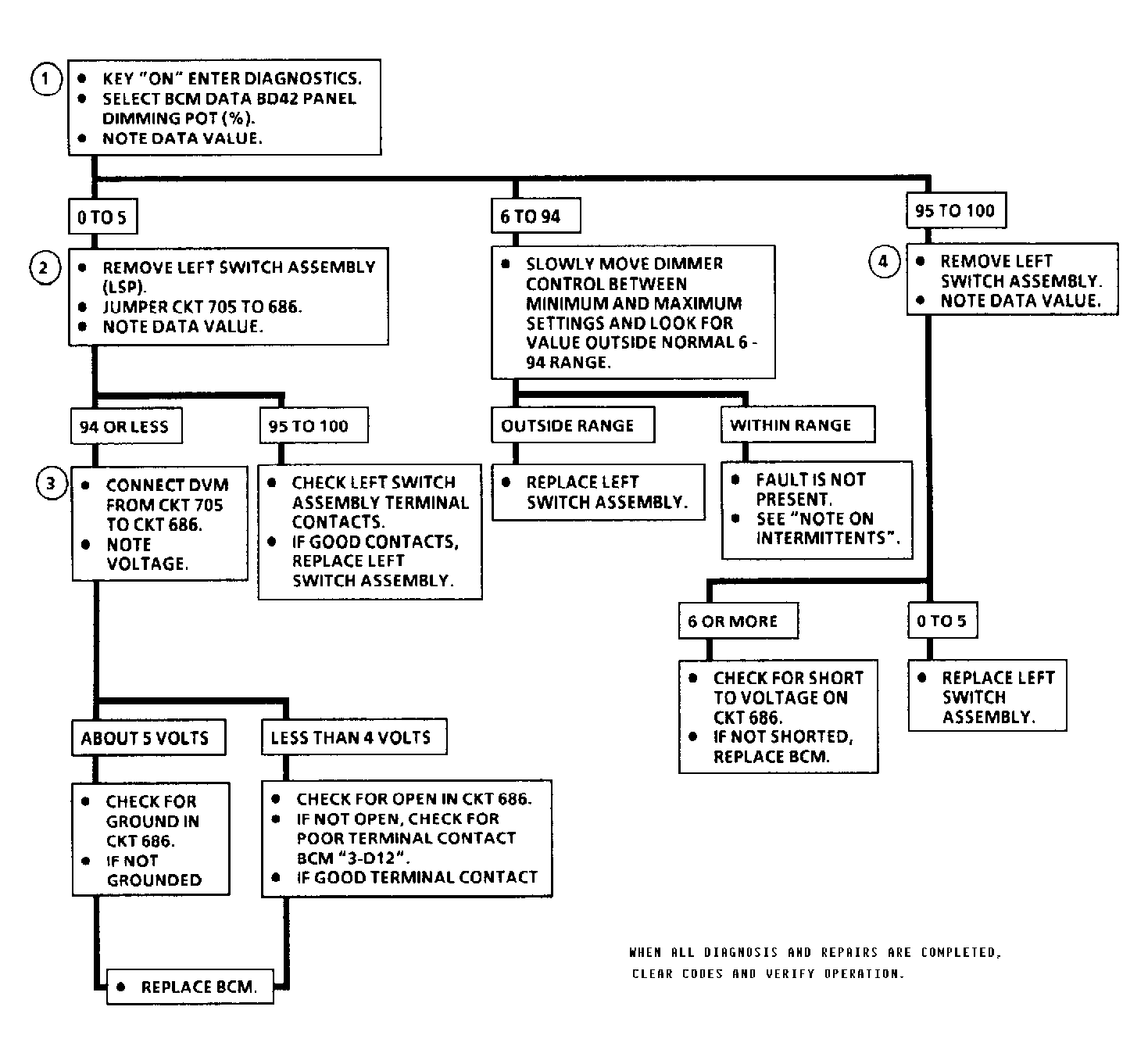

Fig 2: Code B122 Flow Chart, Panel Light Dimming Pot Circuit

Fig 3: Code B122 Flow Chart, Panel Light Dimming Pot Circuit
