Notes On INTERMITTENTS

If B336 shows as a history code, without other data codes, check 7-volt power, ground and data line for intermittent faults. If other data codes are stored, refer to MULTIPLE INTERMITTENT CODES option in this article.

Fig 1: Code B336 Schematic, Loss Of IPC Data

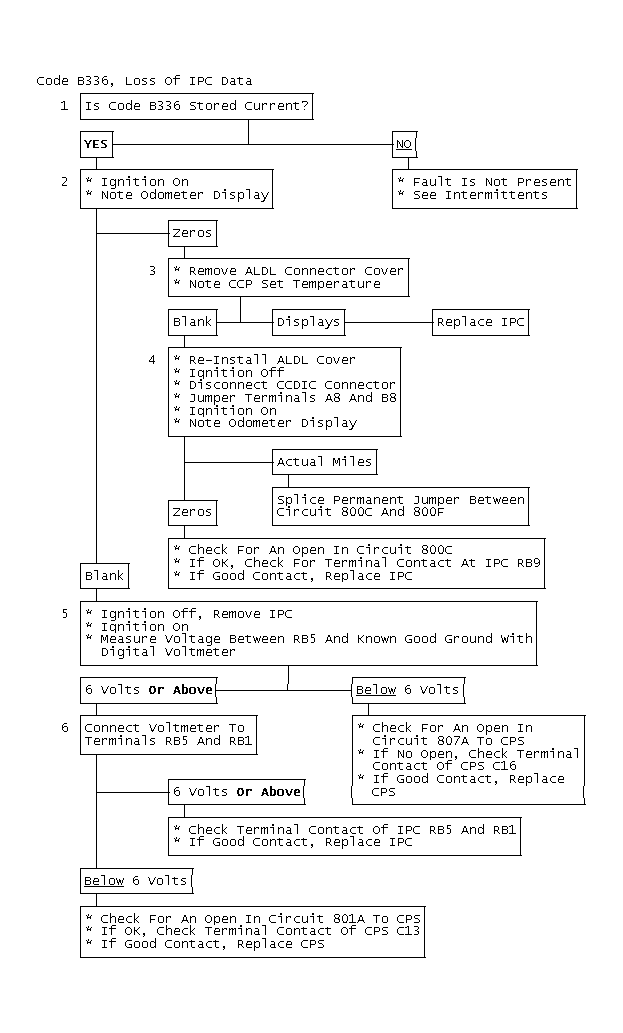

Fig 2: Code B336 Flow Chart, Loss Of IPC Data

Fig 3: Code B336 Flow Chart, Loss Of IPC Data
