Notes On Intermittents

Backprobe ECM pin "C8" with a voltmeter to ground. Lift both drive wheels off ground, start engine and allow it to idle in drive. Manipulated affected wiring and watch for sudden loss of voltage on ECM pin "C8".

Review snapshot data parameters stored with this code to verify failure. If failure is verified, check and repair intermittent wiring connection or sensor.

Fig 1: Schematic, Code EO24, Speed Sensor Circuit Problem

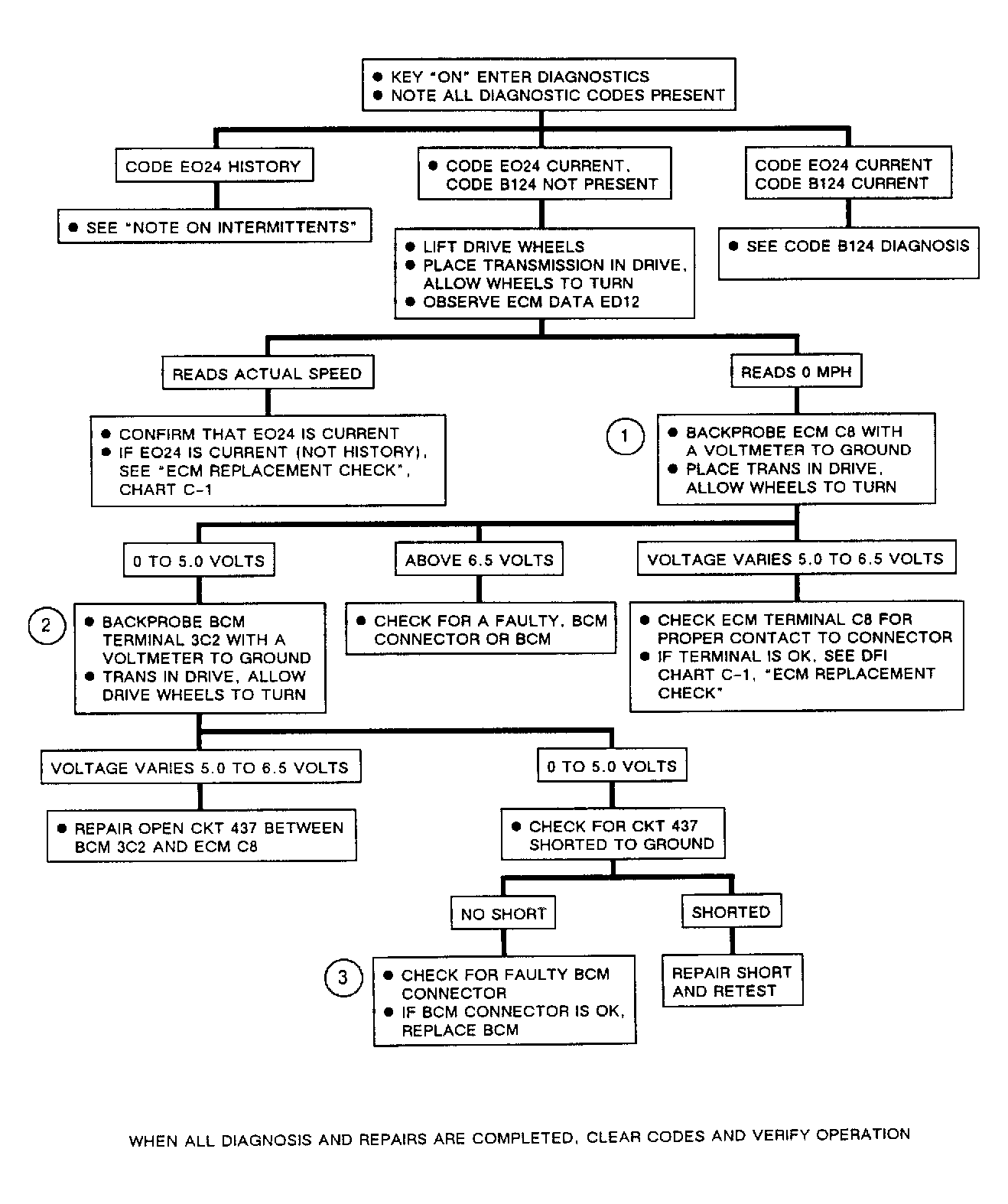

Fig 2: Flow Chart, Code EO24, Speed Sensor Circuit Problem

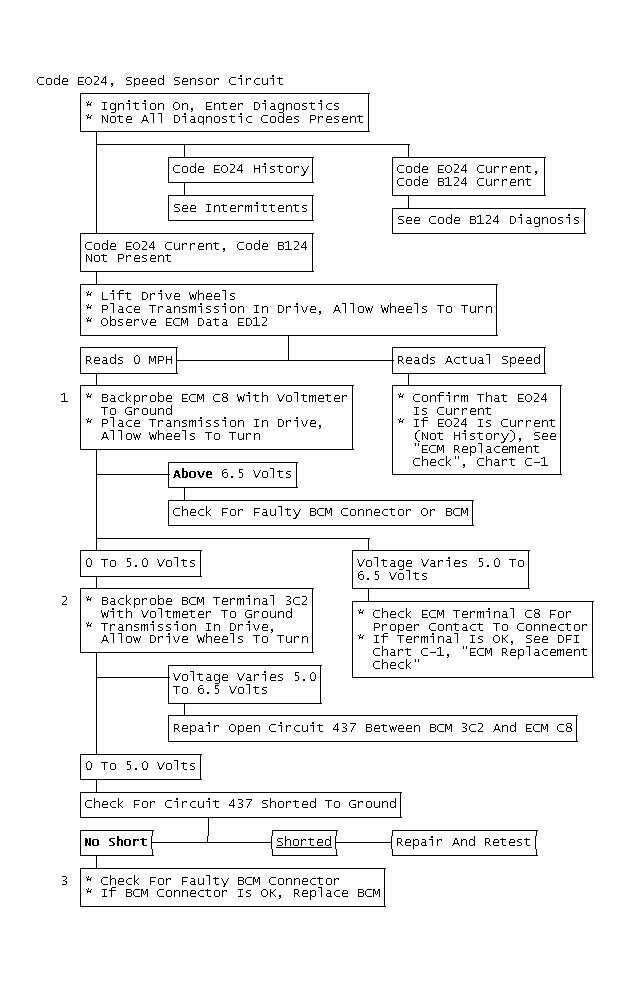

Fig 3: Flow Chart, Code EO24, Speed Sensor Circuit Problem
