Notes On INTERMITTENTS

If intermittent code B111 is being set, manipulate related wiring while observing BCM data code BD27. If failure is induced, reading will jump from its normal value to a reading outside range of -34°C to 209°C. If value of sensor displayed by BD27 is not reasonably close to pressure gauge reading, check for poor terminal connections or replace sensor.

Fig 1: Code B111 Schematic, A/C High Side Temp. Sensor Circuit

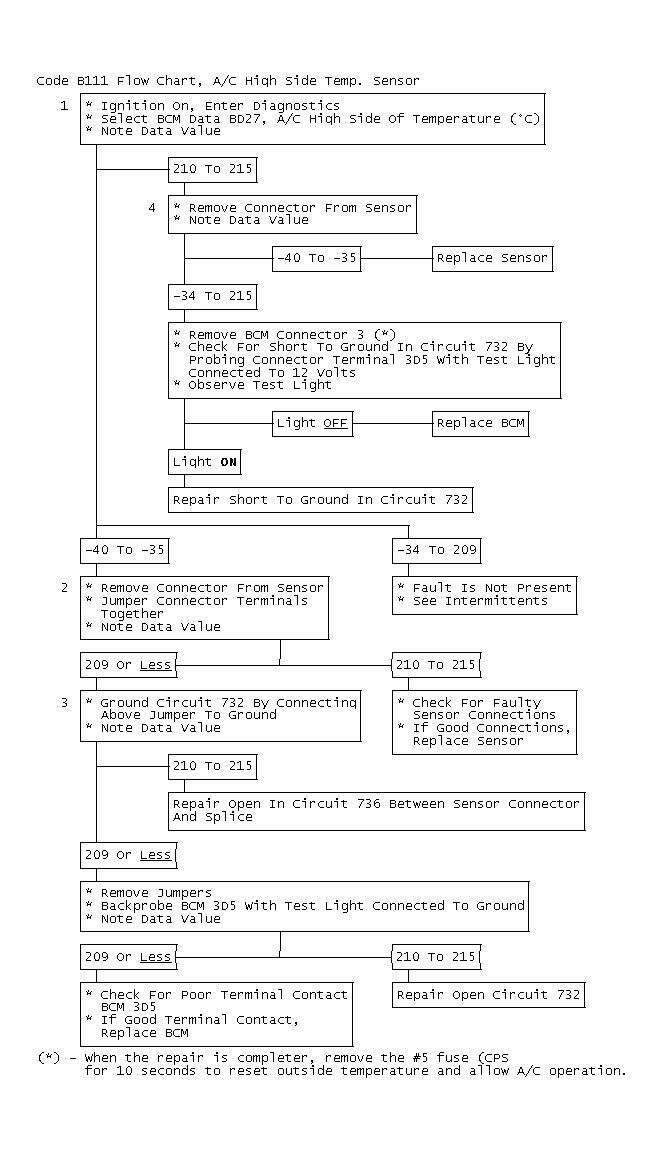

Fig 2: Code B111 Flow Chart, A/C High Side Temp. Sensor Circuit

Fig 3: Code B111 Flow Chart, A/C High Side Temp. Sensor Circuit
