DTC B120: Twilight Delay Switch Pot Circuit: Notes
NOTE:
When all diagnosis and repairs are completed, clear codes and verify operation.
NOTE:

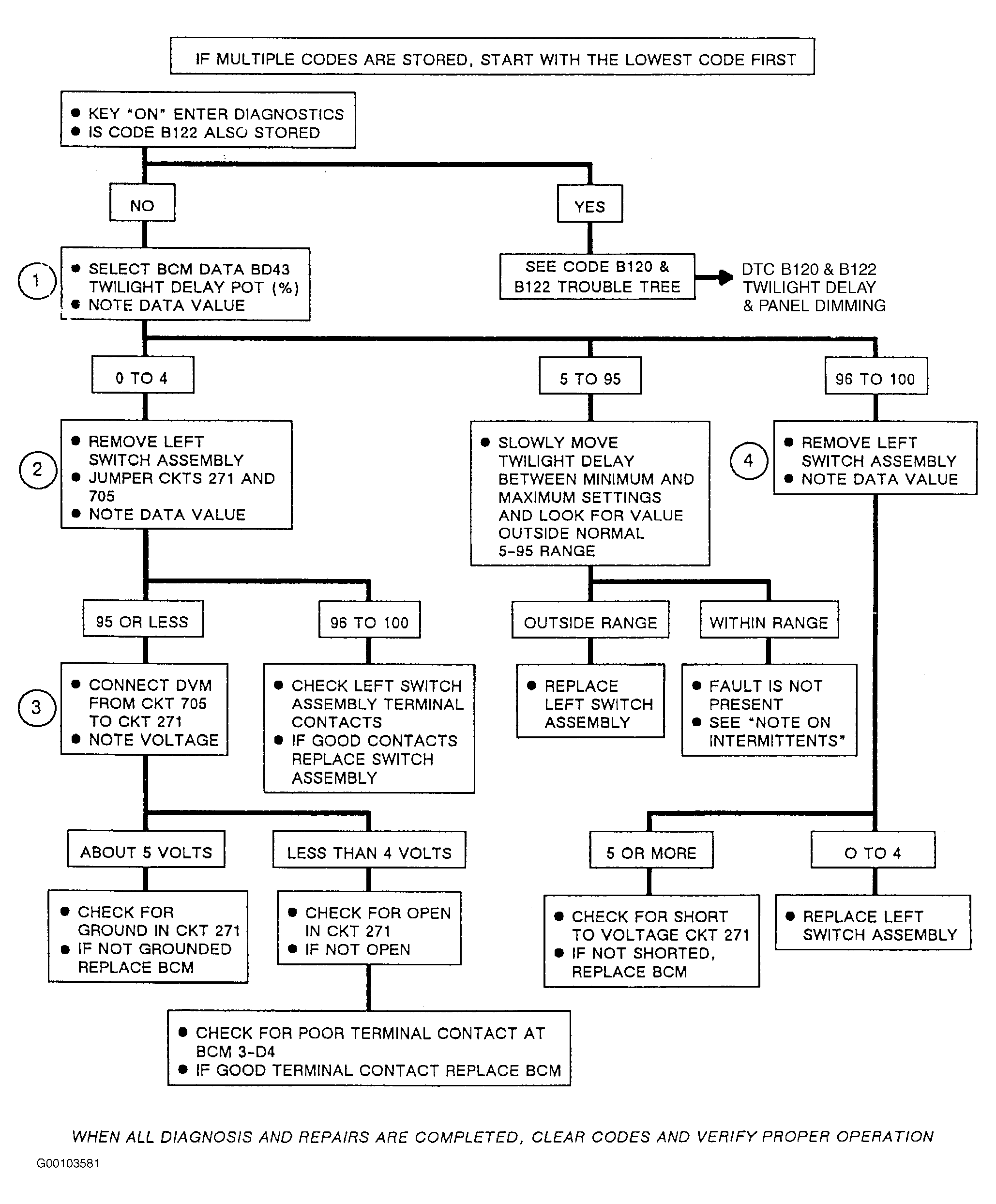

The following numbered steps refer to circled numbers on diagnostic chart. See Figure

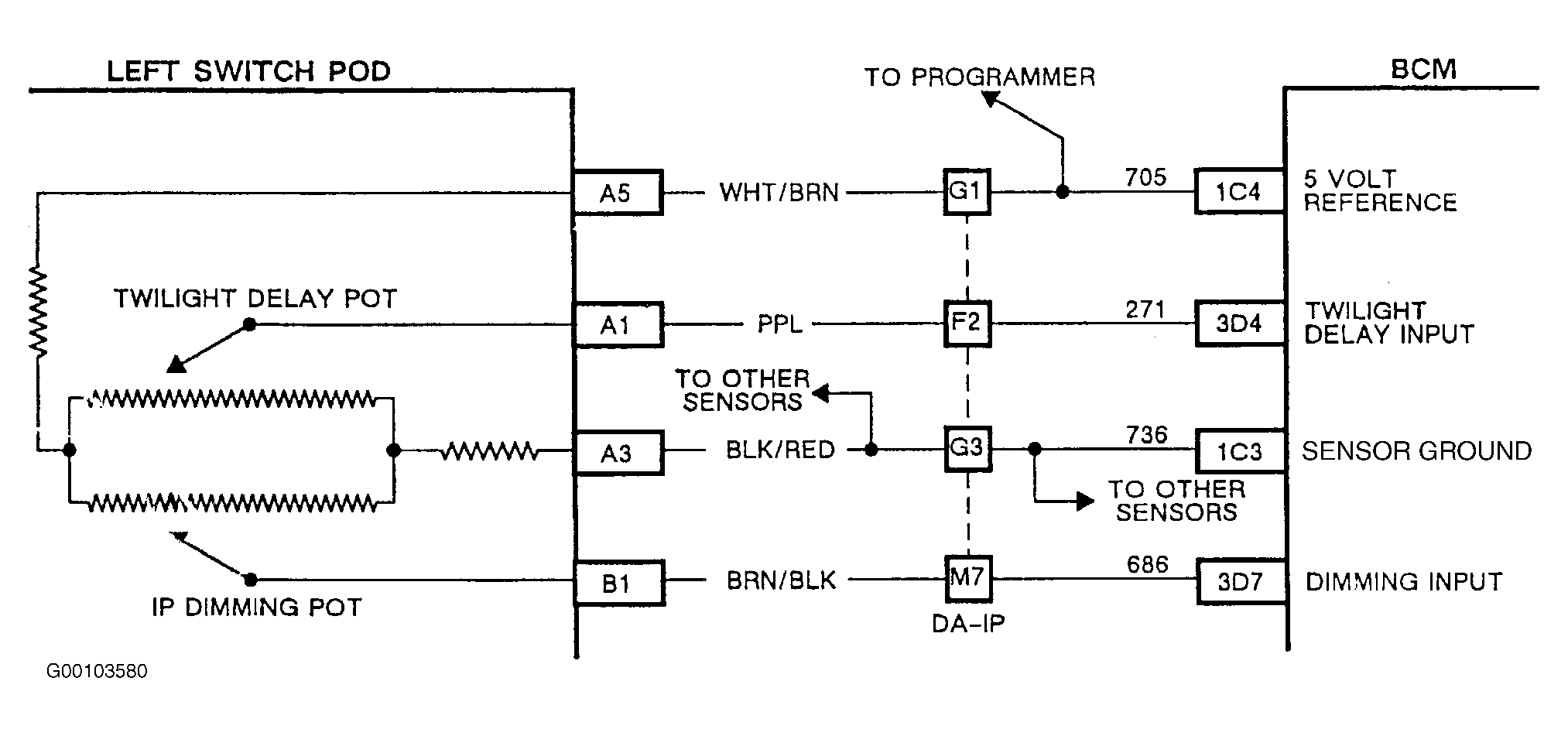

. For circuit identification, see Figure
.
