DTC L011: Redundant Headlamp Relay Failure: Notes

NOTE: When all diagnosis and repairs are completed, clear codes and verify operation.

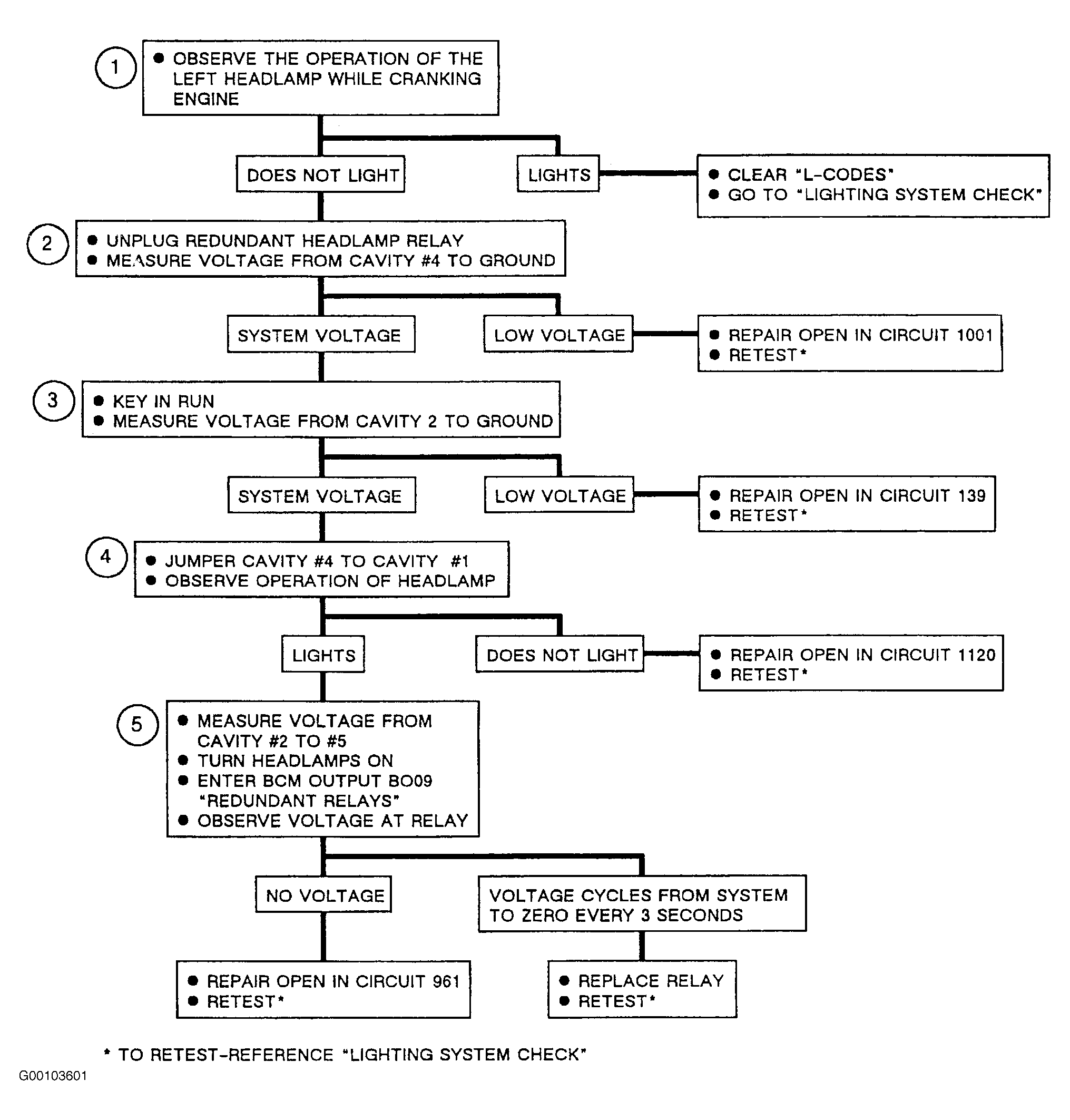

NOTE: The following numbered steps refer to circled numbers on diagnostic chart. See Figure . For circuit identification, see Fig 1 .

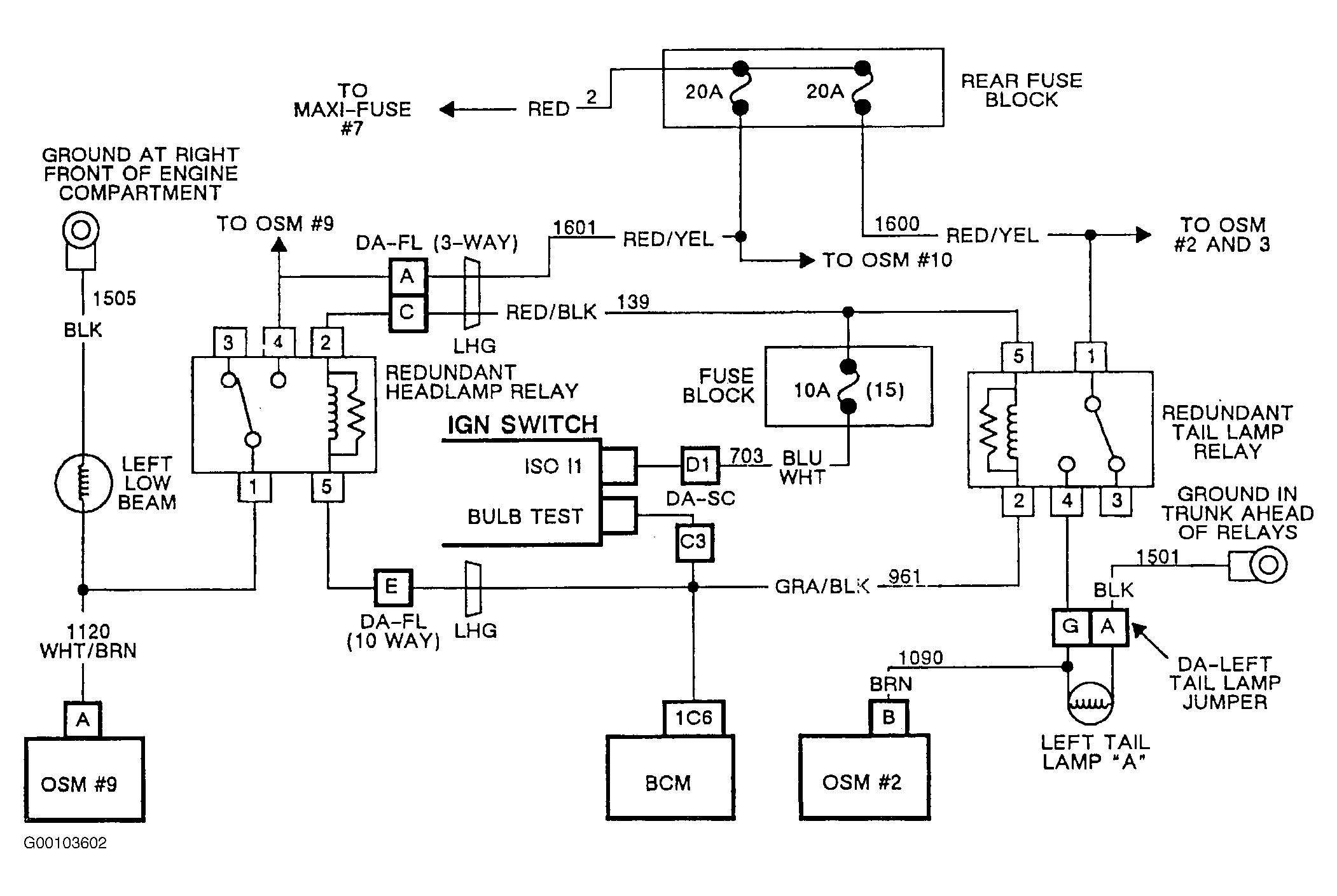

Fig 1: DTC L011: Redundant Headlamp Relay Flow Chart Circuit

Courtesy of GENERAL MOTORS CORP.
