Control Pressure Switch: Installation

1. Install control pressure switch on booster/master assembly. Tighten to 30 N.m (22 ft. lbs.).
2. Connect control pressure switch connector at sensor block. See Fig 1 .

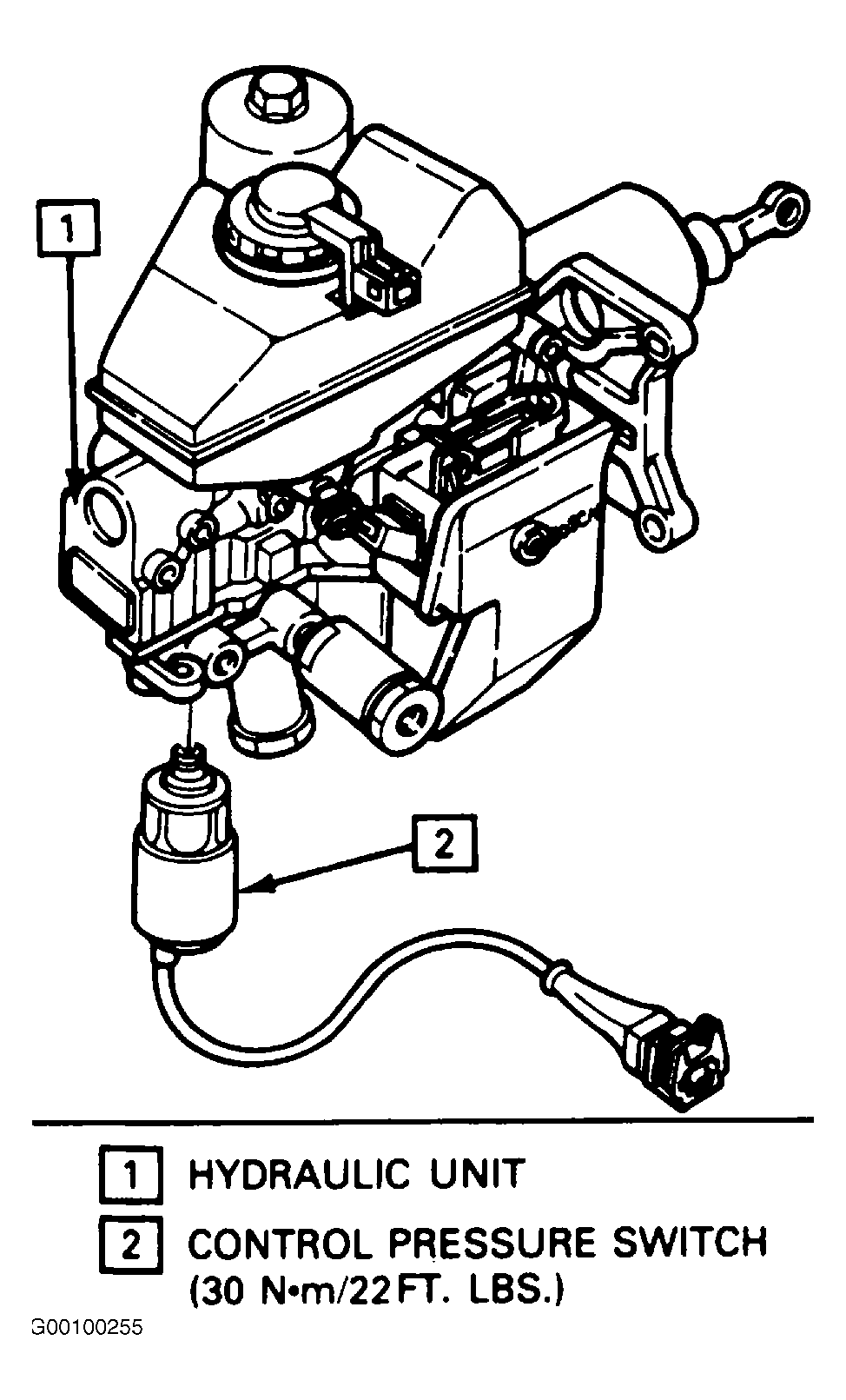

Fig 1: Locating Control Pressure Switch

Courtesy of GENERAL MOTORS CORP.
