Electronic Brake Control Module: Installation

1. Position EBCM in mounting bracket and install retaining bolts.
2. Install EBCM harness connector. See Fig 1 .
3. Install driver's side sound insulator panel.

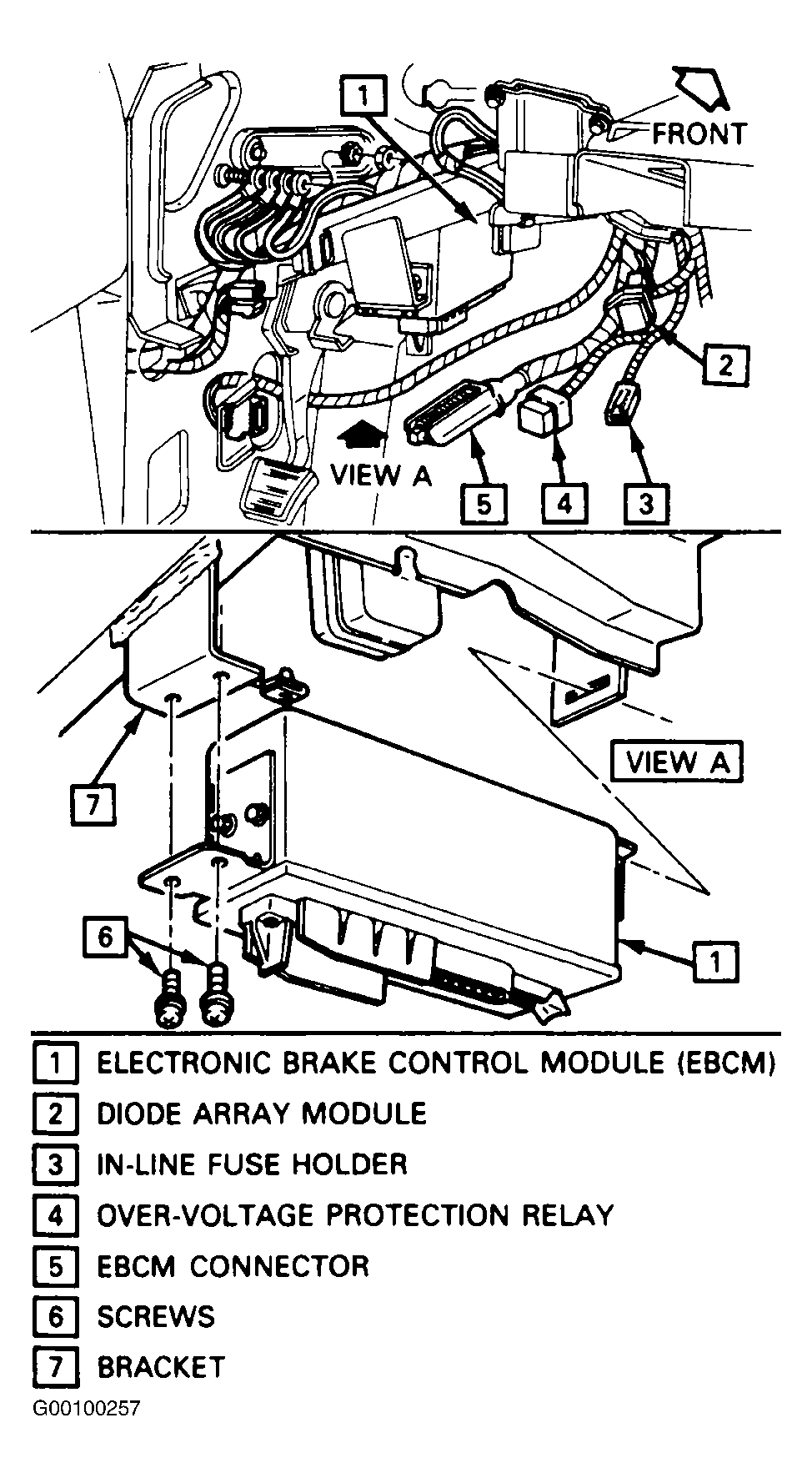

Fig 1: Identifying EBCM & Diode Array Module Mounting & Harness Connectors

Courtesy of GENERAL MOTORS CORP.
