Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Body Computer Module | Behind Center Of Instrument Panel. See Figure . |
| Chime Module | Behind Right Side Of Instrument Panel. See Figure . |
| Diode Array Module | Behind Left Side Of Instrument Panel. See Figure . |
| Electronic Brake Control Module | Behind Left Side Of Instrument Panel. See Figure . |
| Engine Control Module (ECM) | Behind Right Side Of Instrument Panel. See Figure . |

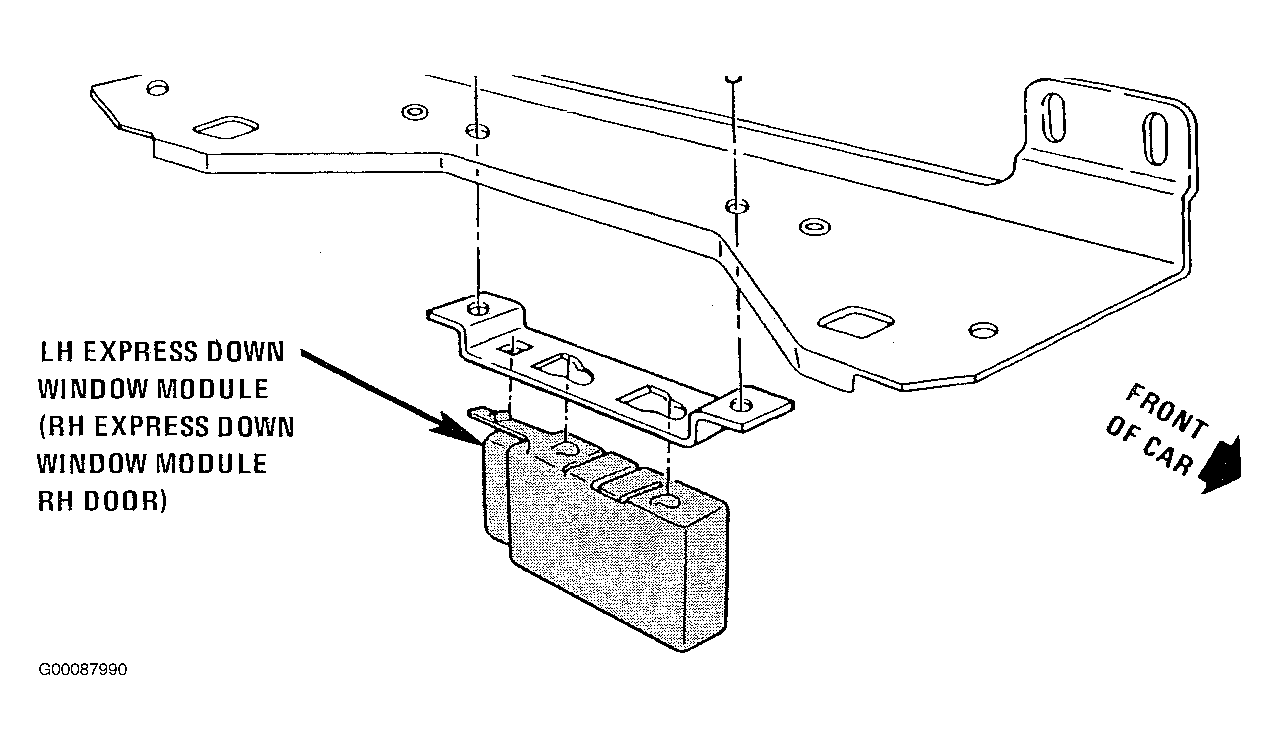

| Express Down Window Module |
Behind Respective Door, Below Armrest. See Figure . |

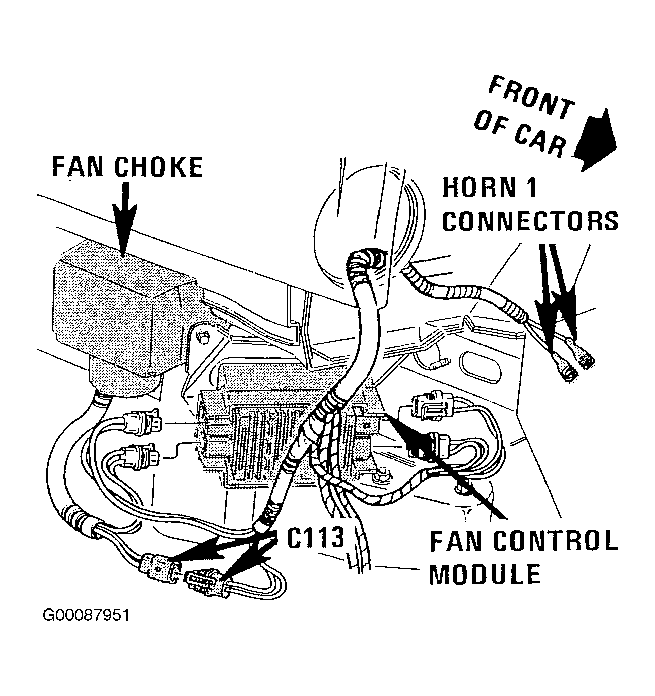

| Fan Control Module | Under Right Front Of Car. See Figure . |
| Headlight Washer Module |
Behind Left Side Of Instrument Panel. See Figure . |
| Heater & A/C Programmer | Behind Center Of Instrument Panel. See Figure . |
| Output Switch Modules 2 & 3 (OSM 2) (OSM 3) | Left Rear Of Trunk. See Figure . |
| Output Switch Modules 4 & 5 (OSM 4) (OSM 5) | Right Rear Of Trunk. See Figure . |
| Output Switch Modules 6 & 7 (OSM 6) (OSM 7) | Right Rear Of Trunk. See Figure . |
| Output Switch Modules 9, & 10 (OSM 9) (OSM 10) | Left Front Of Engine Compartment. See Figure . |
| Output Switch Module 13 (OSM 13) |
Left Front Of Engine Compartment. See Figure . |
| Pass Key Decoder Module |
Behind Right Side Of Instrument Panel. See Figure . |

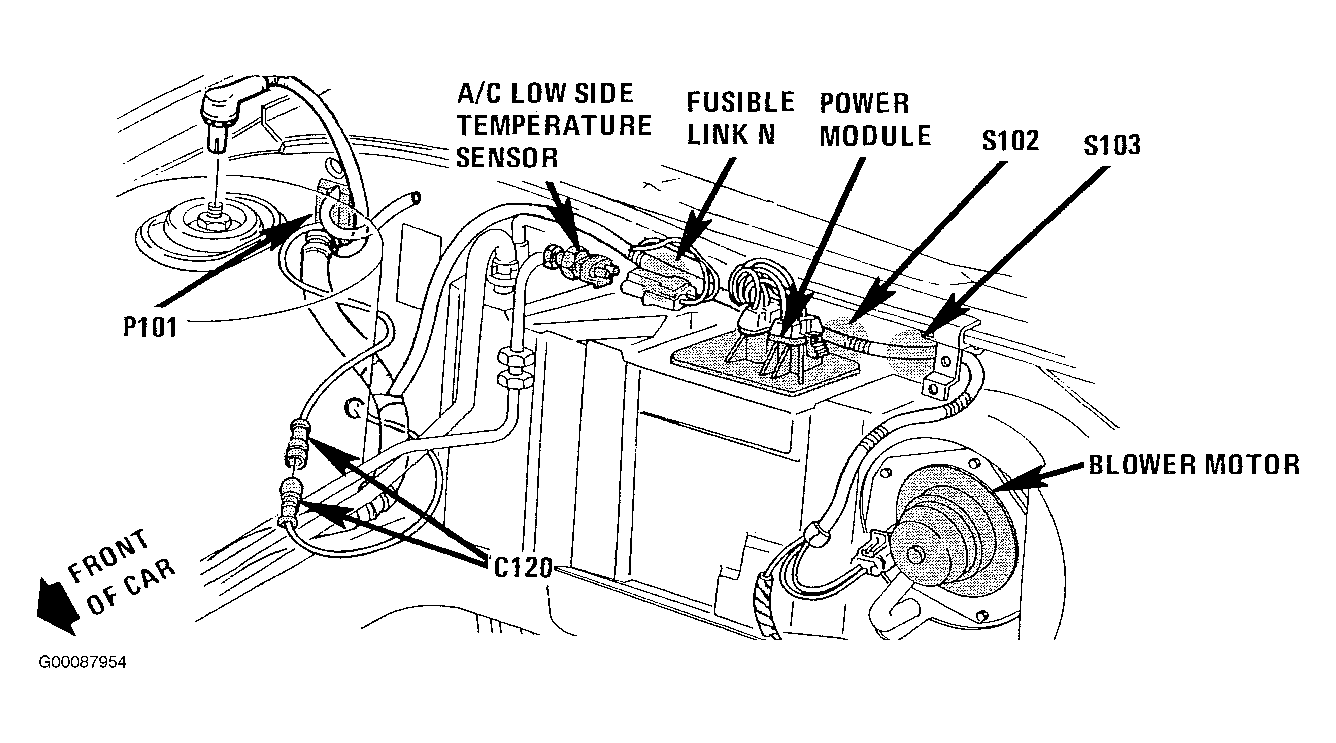

| Power Module | Right Rear Of Engine Compartment. See Figure . |

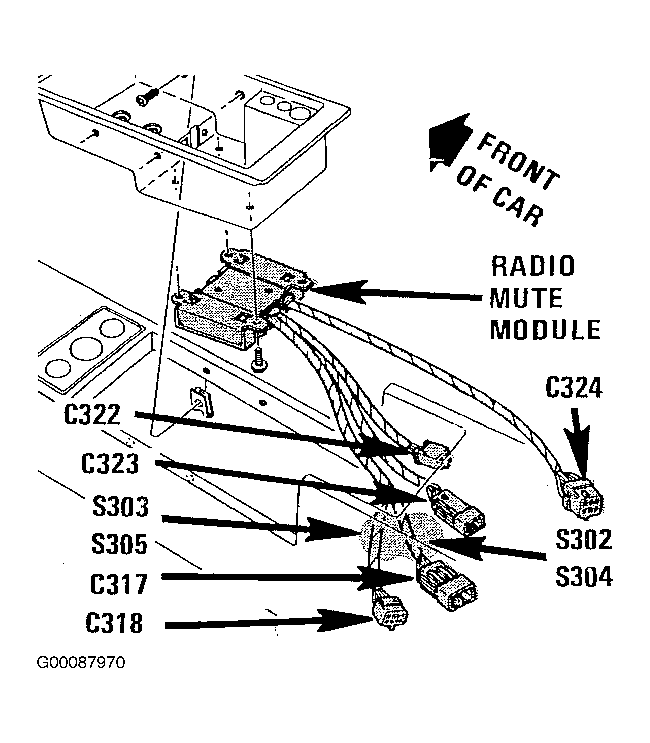

| Radio Mute Module | In Center Console. See Figure . |

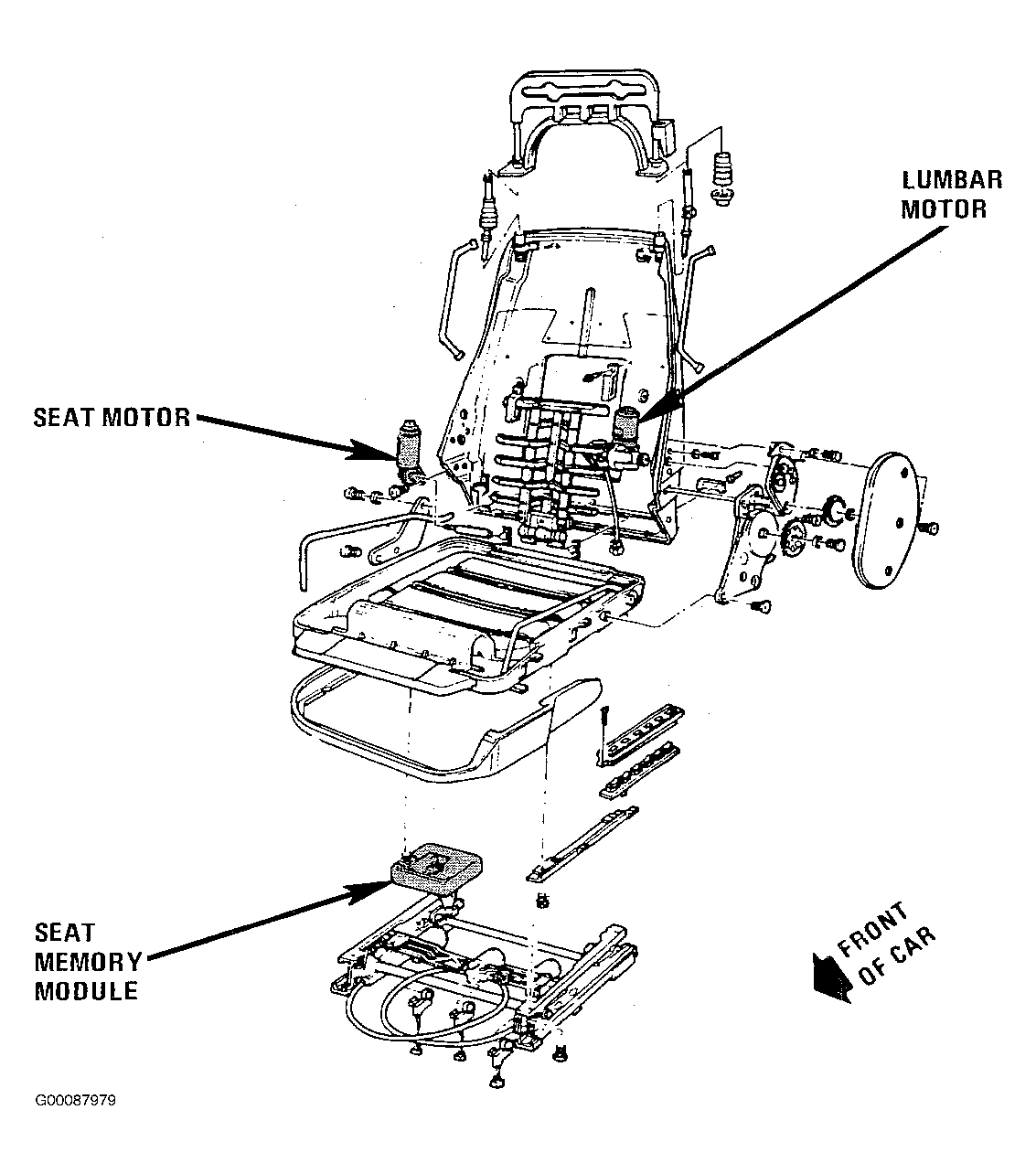

| Seat Memory Module | Under Front Seat. See Figure . |

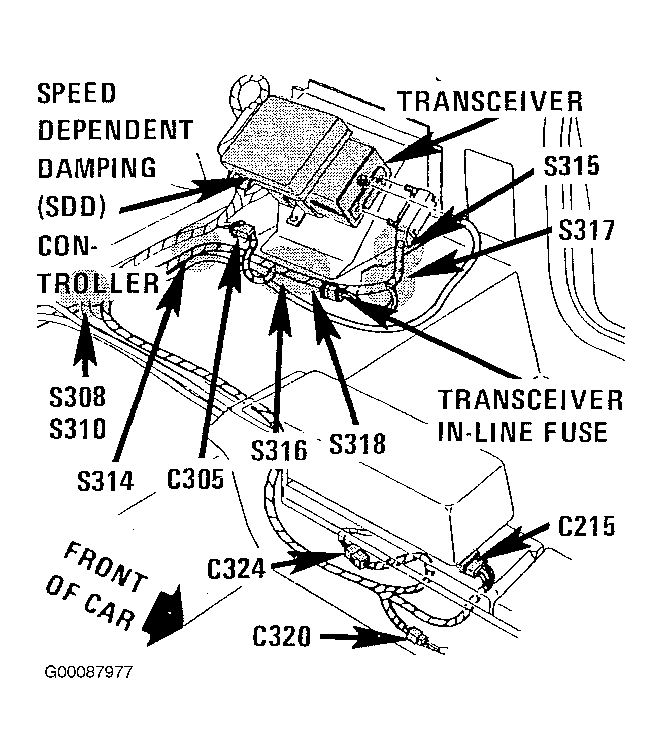

| Speed Dependent Damping (SDD) Controller | Left Rear Of Passenger Compartment. See Figure . |
| Theft Deterrent Module | Behind Right Side Of Instrument Panel. See Figure . |

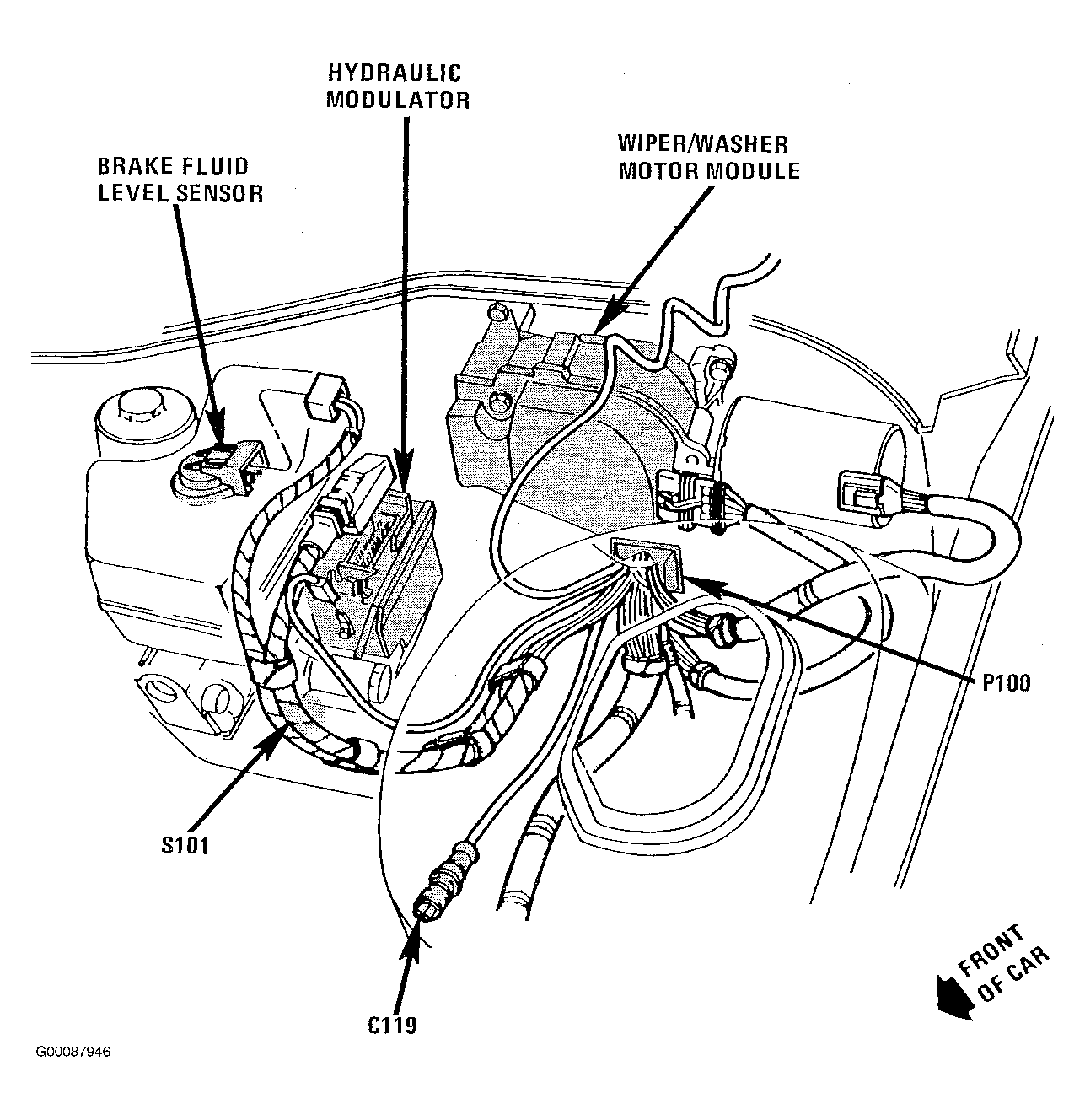

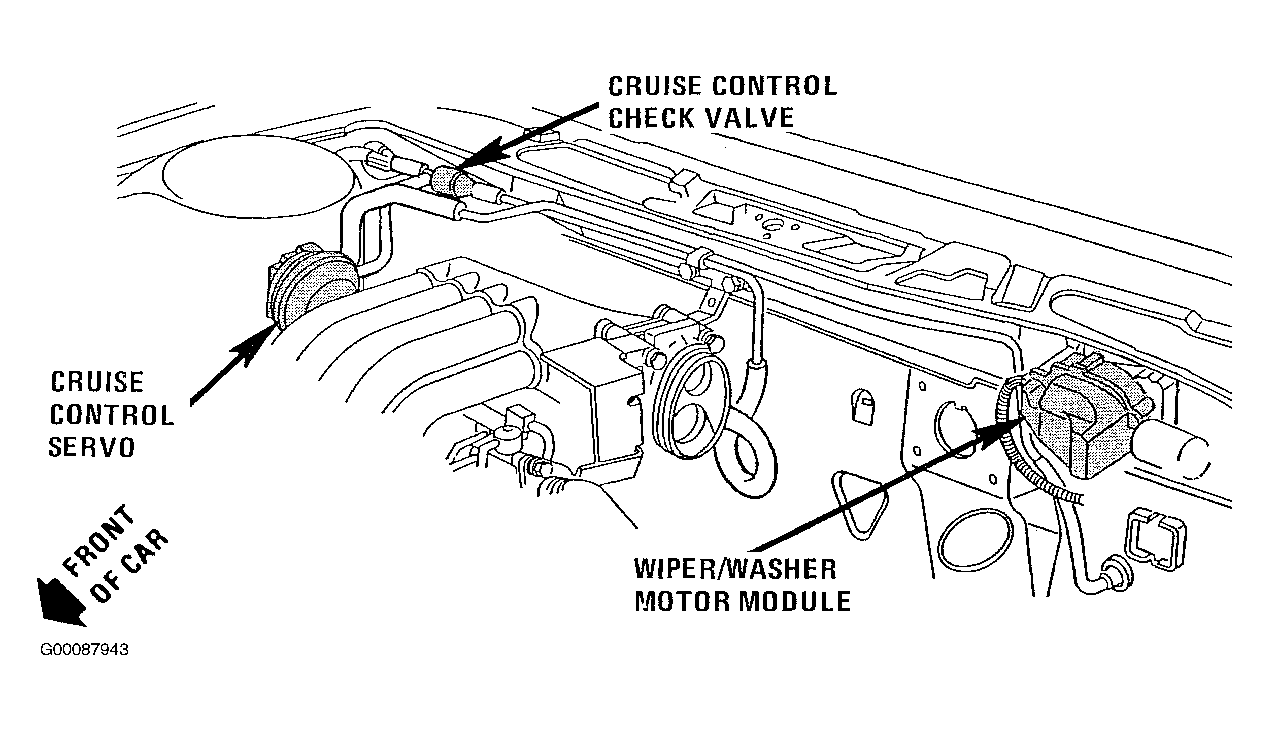

| Wiper Washer Motor Module | Rear Of Engine Compartment. See Figure and Figure . |
