System Check Chart D-1: Data Circuit Open
You have been directed to this chart from chart D because there is an open in circuit 800. This chart will help you determine where the open circuit is located.
NOTE:

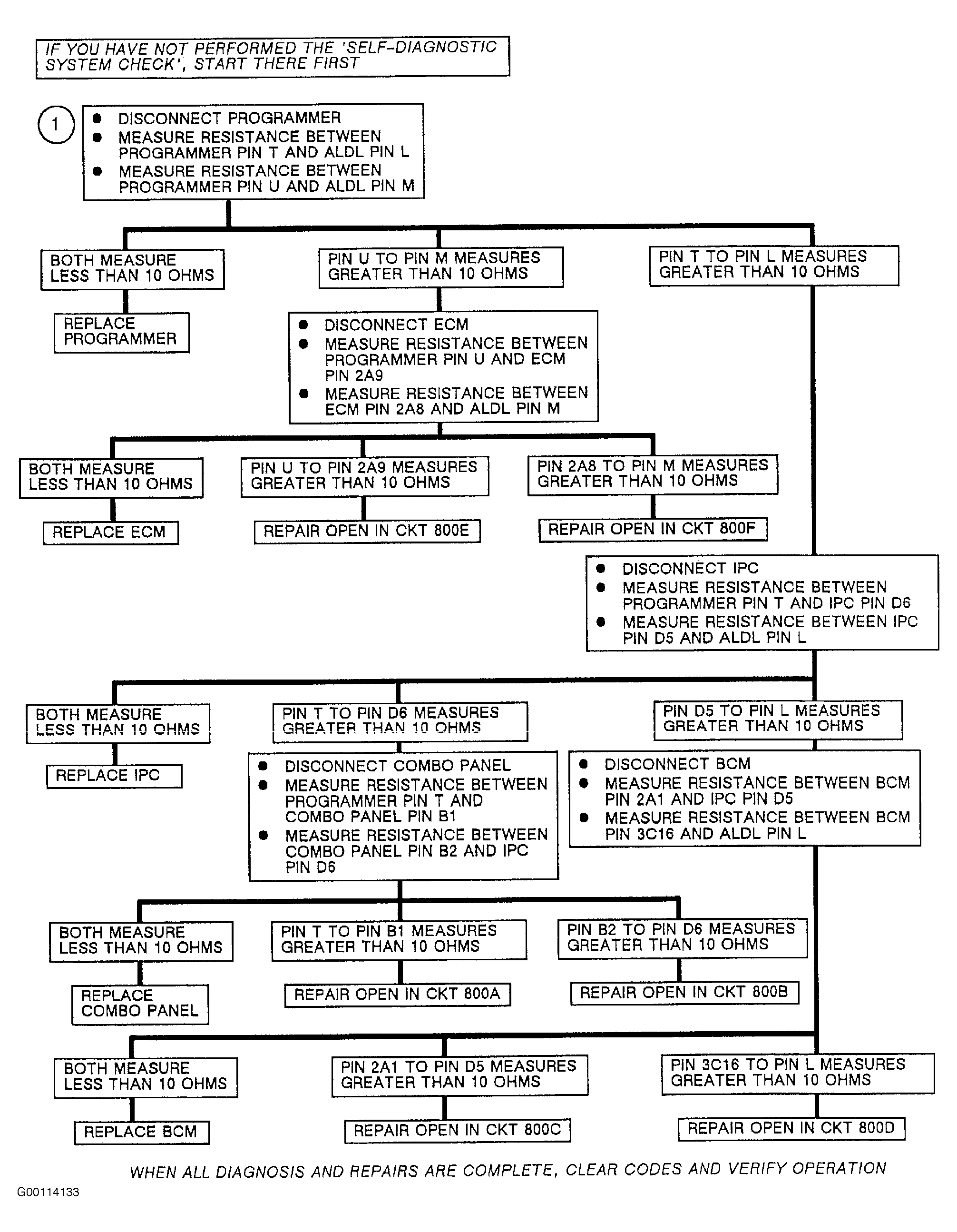

The following step numbers refer to circled numbers on diagnostic chart. See Fig 1
. For circuit identification, see Figure
.
- This chart is set up to subdivide the 800 circuit piece by piece until the location of the open is found.
