ECM Data Test
ECM Data Test

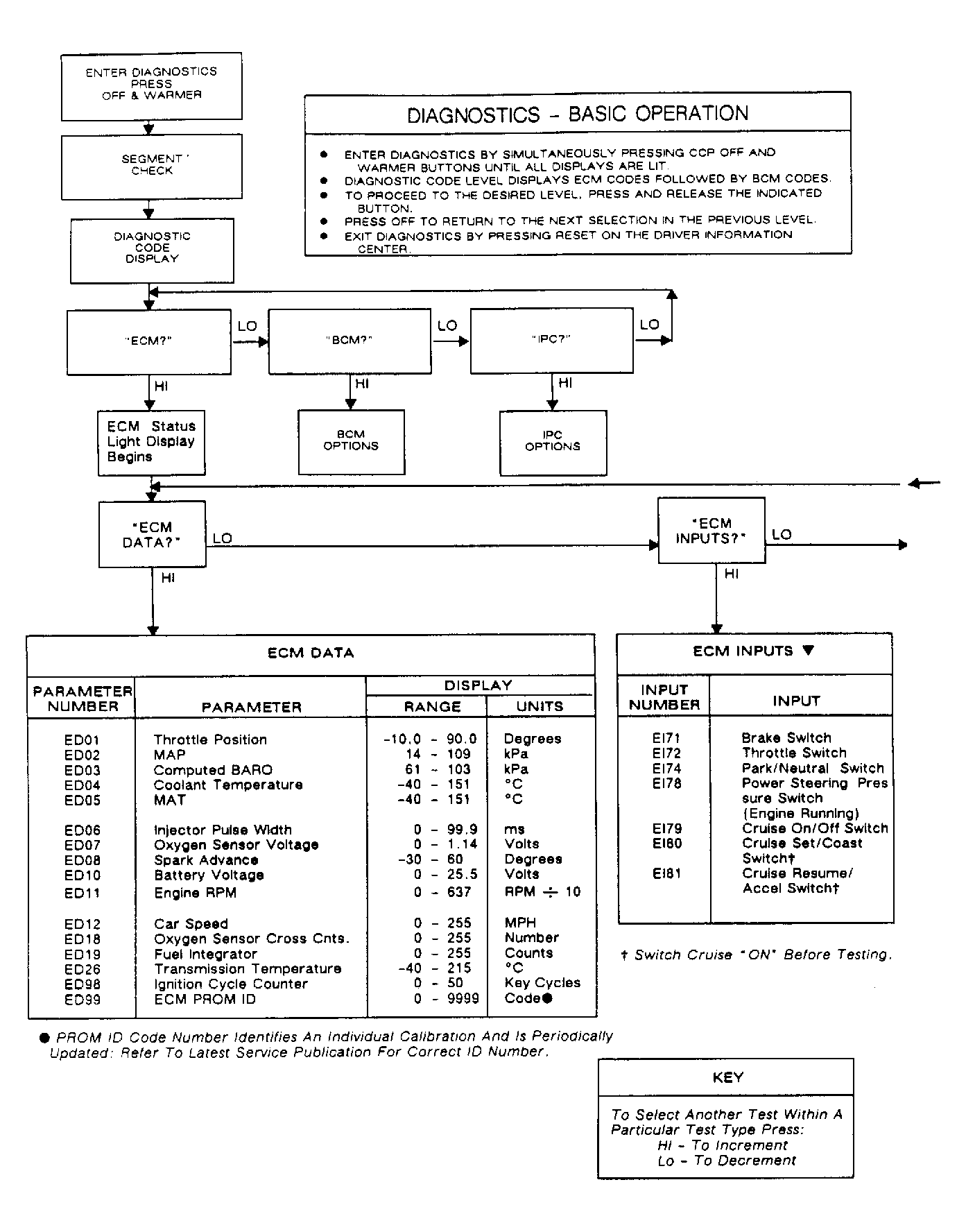

Fig 1: ECM Data Test, Input Test, Output Test & Fixed Spark Mode
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
