Test Description

For test description, see Fig 1 .

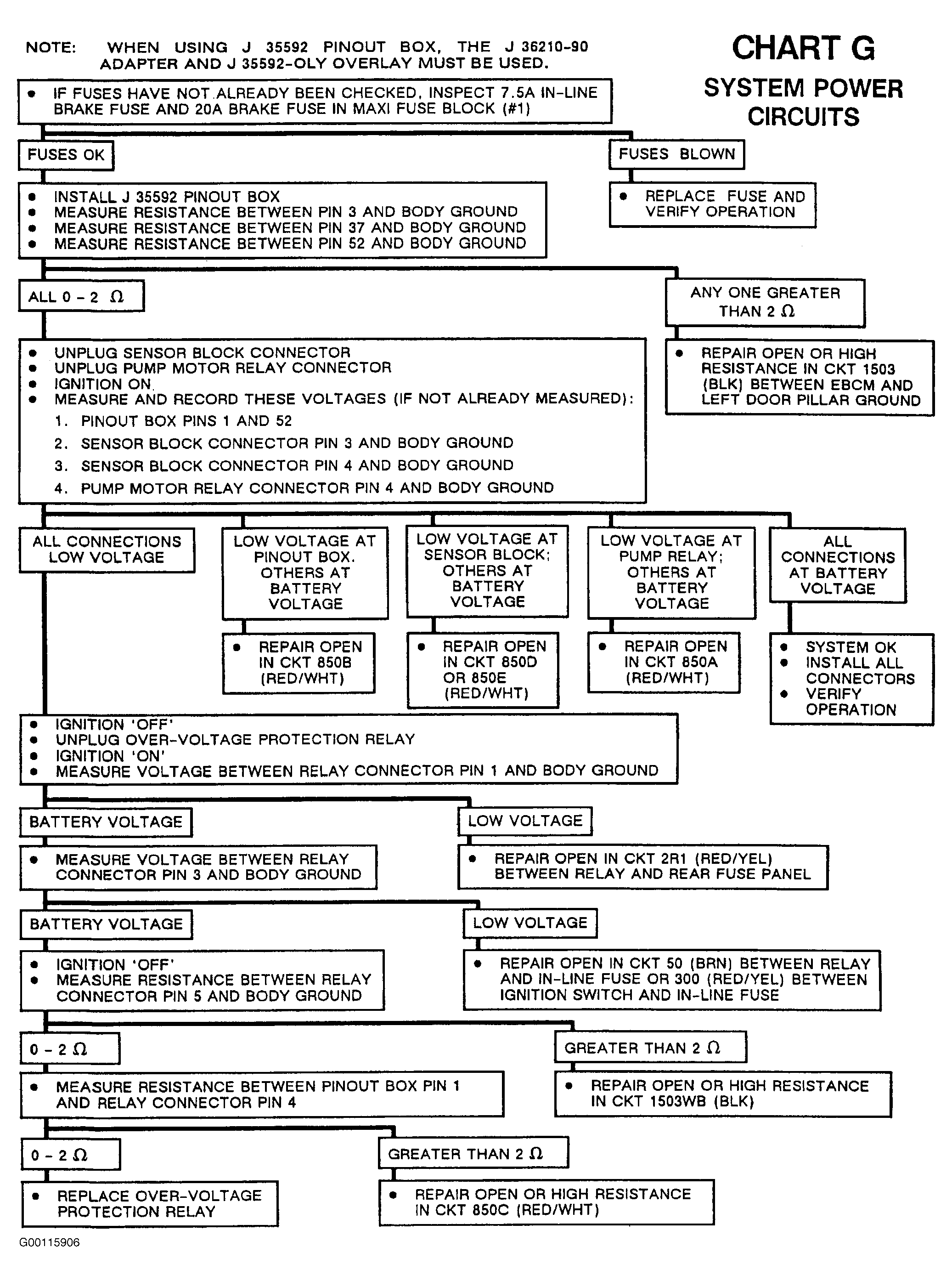

Fig 1: Chart G: Diagnostic Chart
G00115906Courtesy of GENERAL MOTORS CORP.
