Abs/TCS Visual Inspection

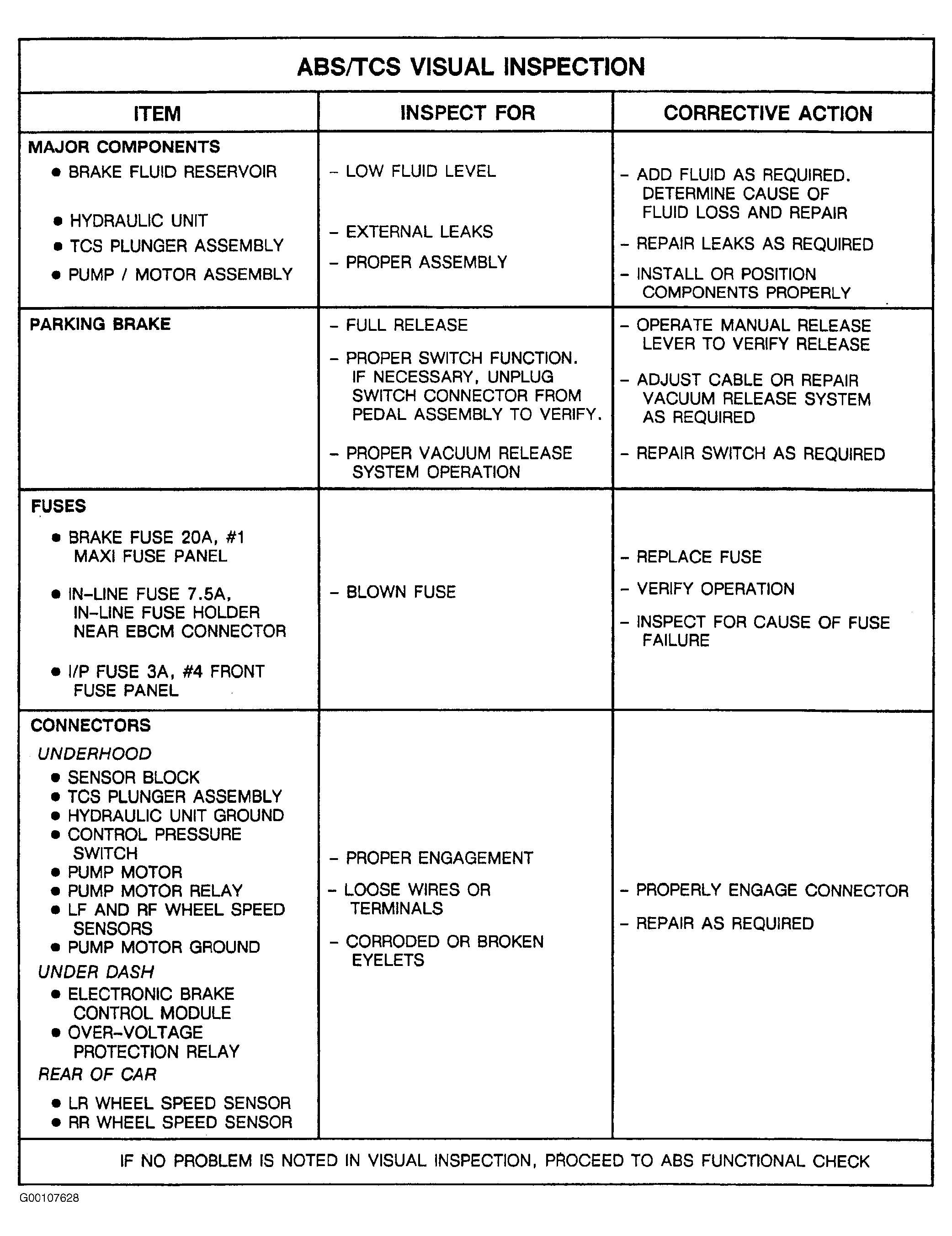

The ABS/TCS Visual Inspection consists of an inspection of easily accessible components which could cause an apparent system malfunction. A thorough visual inspection may quickly identify the cause of a malfunction and eliminate the need for additional diagnostic procedures. See Fig 1 for visual inspection procedures.
