Computerized Engine Controls: Mem-Cal: Removal

1. Remove ECM from passenger compartment. See ENGINE CONTROL MODULE  .
NOTE: Using two fingers, push both retaining clips back away from the MEM-CAL at the same time. Grasp the MEM-CAL at both ends and lift up out of the MEM-CAL socket. Do not remove the cover of the MEM-CAL. Use of unapproved MEM-CAL removal methods will cause damage to the MEM-CAL or MEM-CAL socket.
2. Remove MEM-CAL access cover. See Fig 1 .
3. Remove MEM-CAL. See Fig 2 .

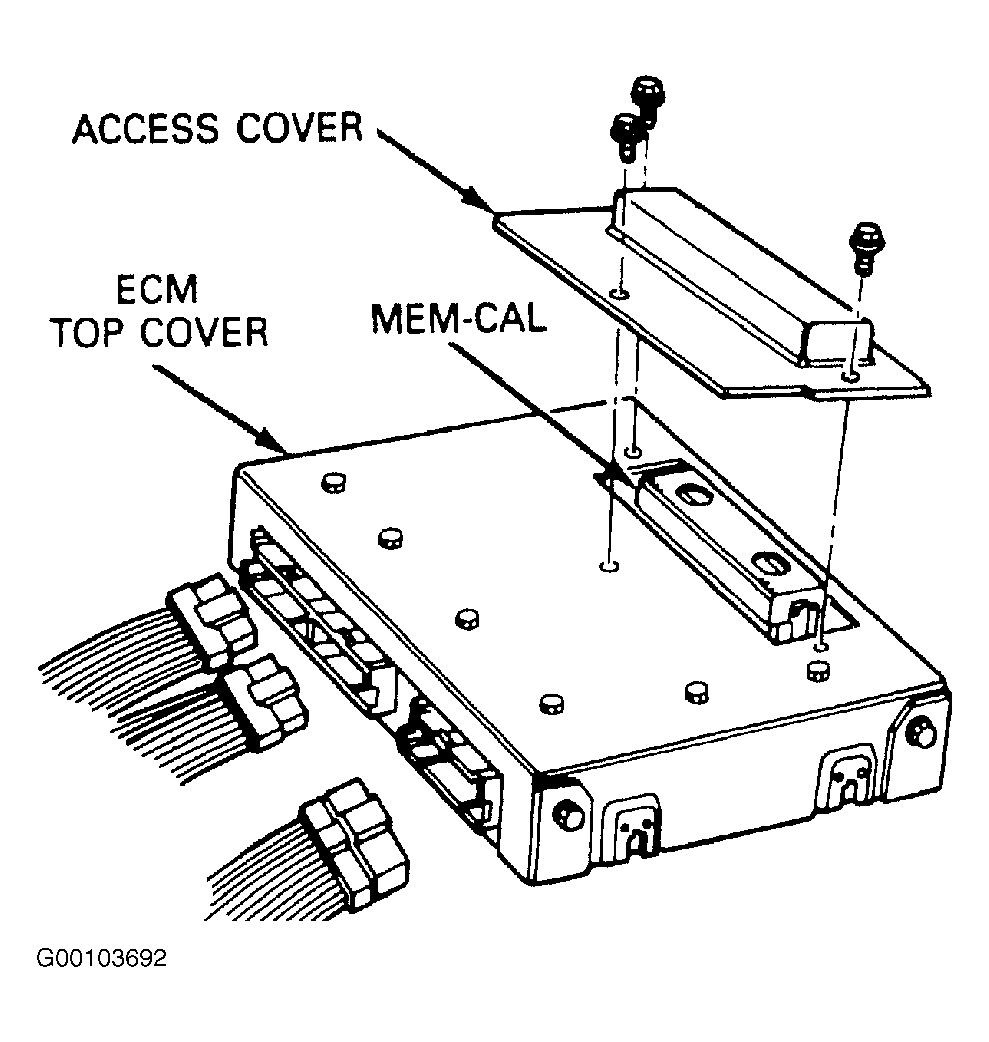

Fig 1: Identifying MEM-CAL Access Cover

Courtesy of GENERAL MOTORS CORP.

Fig 2: MEM-CAL Removal

Courtesy of GENERAL MOTORS CORP.
