BCM Connector Identification

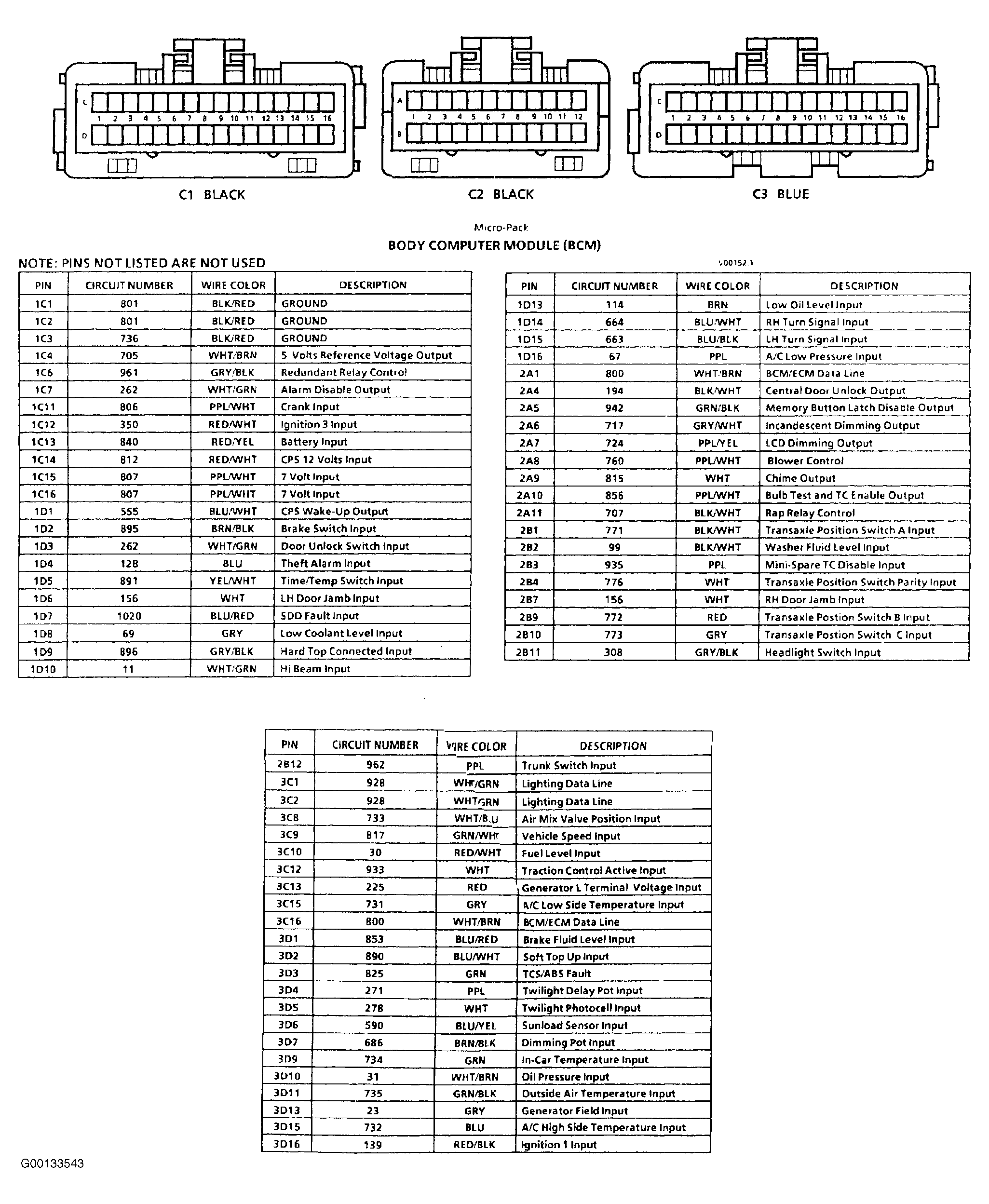

Fig 1: Identifying BCM Terminal Connectors
G00133543Courtesy of GENERAL MOTORS CORP.
