Control Pressure Switch: Removal

1. Depressurize hydraulic accumulator by pumping brake pedal a minimum of 25 times.
2. Disconnect control pressure switch from booster/master cylinder assembly. See Fig 1 .

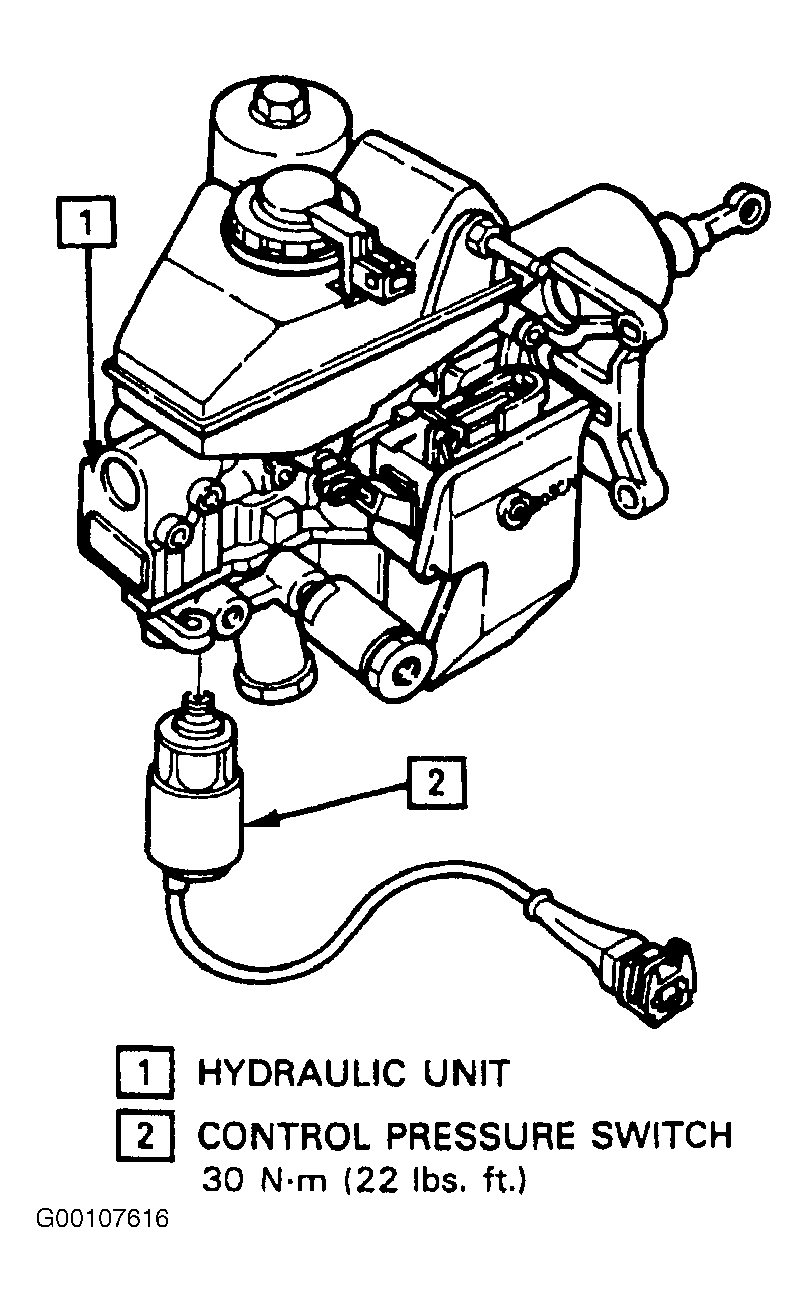

Fig 1: Identifying Control Pressure Switch

Courtesy of GENERAL MOTORS CORP.
