Electronic Brake Control Module (EBCM): Removal

1. Remove driver's side sound insulator panel.
2. Disconnect EBCM connector by disengaging retainer and rotating connector toward the driver's seat.
3. Remove EBCM retaining bolts. See Fig 1 .
4. Disengage EBCM from mounting bracket and remove from car.

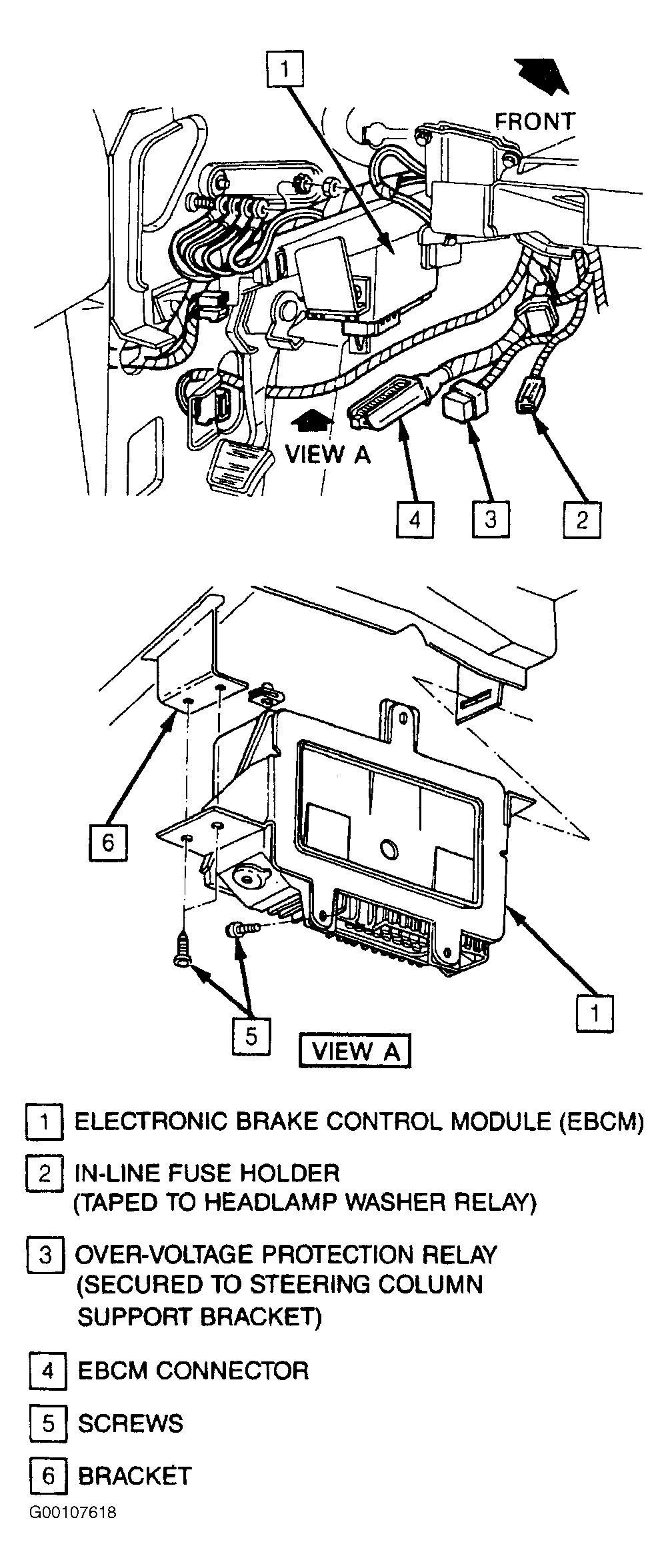

Fig 1: Locating EBCM, In-Line Brake Fuse & Over-Voltage Protection Relay

Courtesy of GENERAL MOTORS CORP.
