Test C: Hydraulic System Performance Check
Test C: Hydraulic System Performance Check

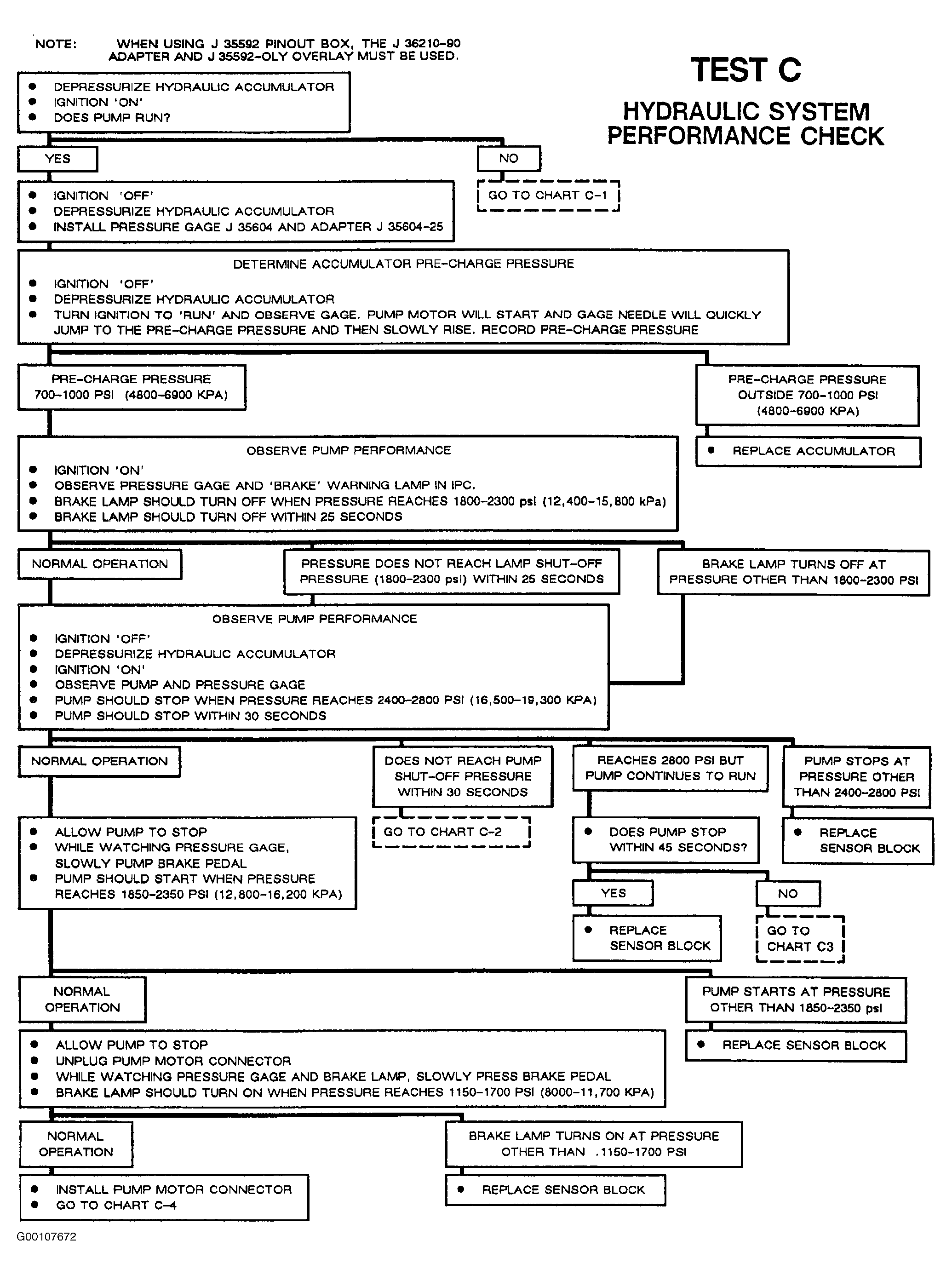

Fig 1: Test C: Hydraulic System Performance Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
