HEI System Tests

For HEI diagnosis, see Fig 1 and Fig 2 .

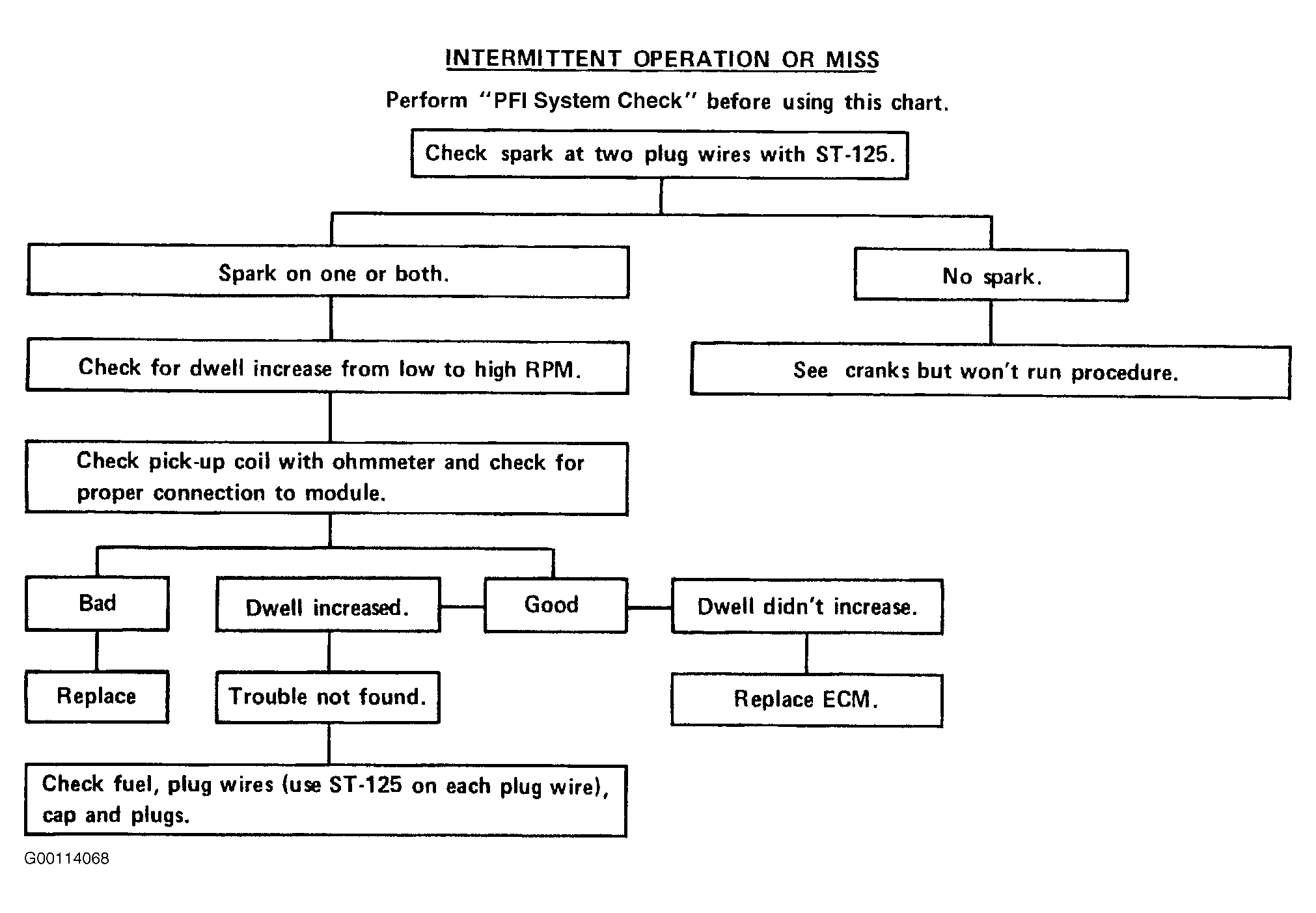

Fig 1: Intermittent Operation Or Miss Flow Chart

Courtesy of GENERAL MOTORS CORP.

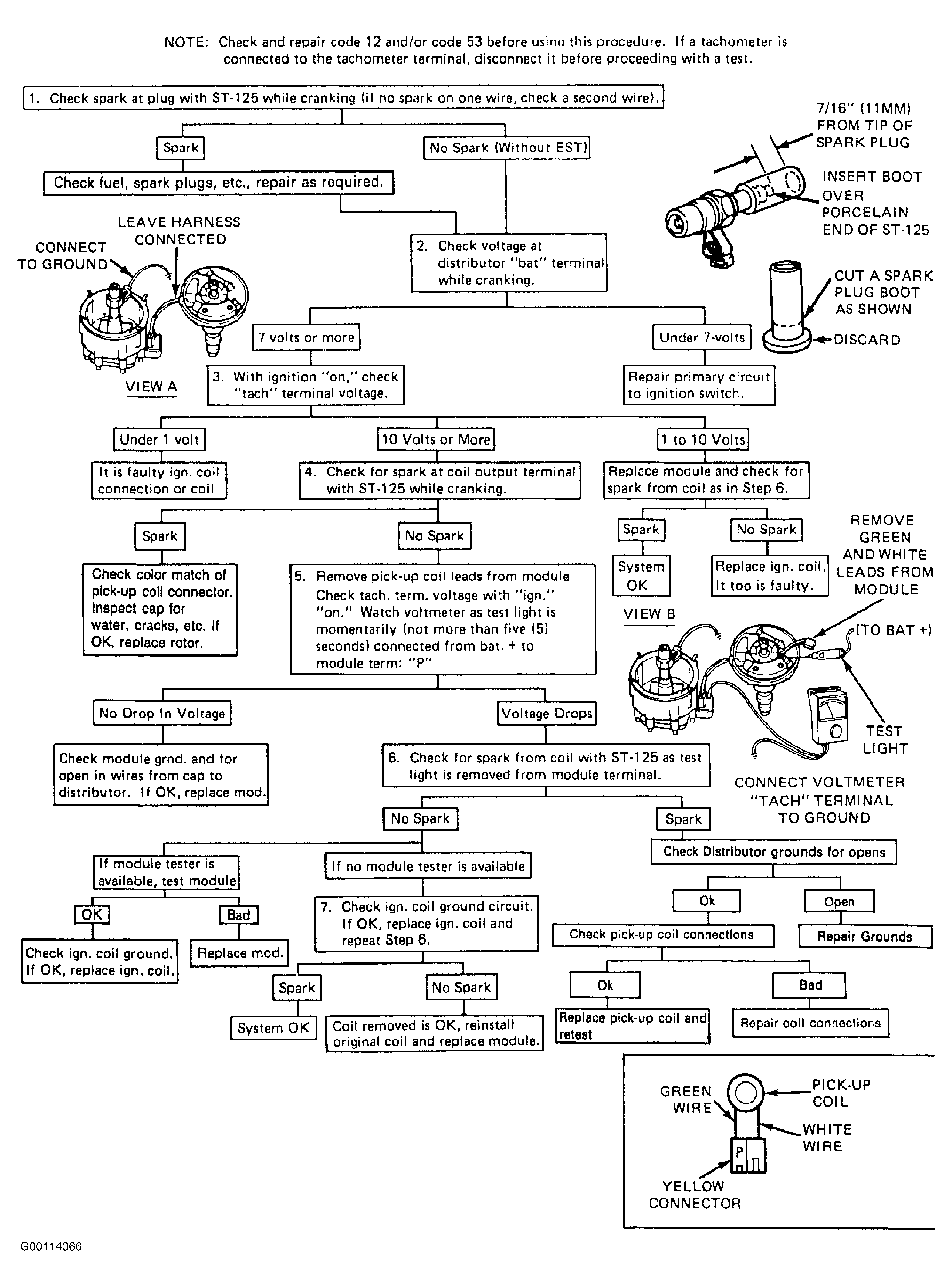

Fig 2: Engine Cranks, But Will Not Start (With Integral Ignition Coil) Flow Chart

Courtesy of GENERAL MOTORS CORP.
