Note On Intermittents

If intermittent Code B122 is being set, manipulate related wiring while observing BCM parameter BD42. If failure is induced, reading will jump from its normal value to a reading outside range of 6-94 percent.

Fig 1: BCM Code B122 Circuit Diagram
G90A21741

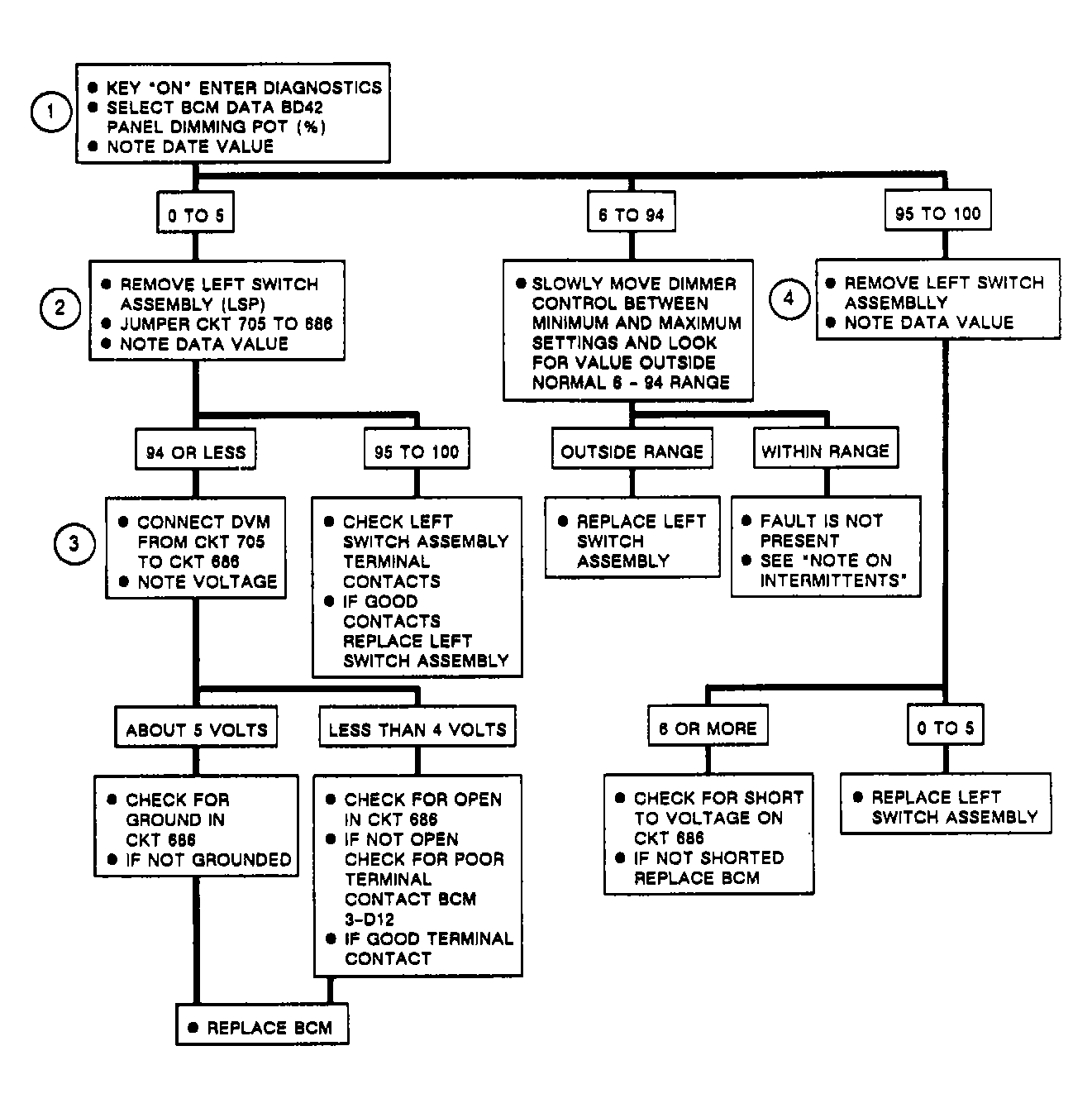

Fig 2: BCM Code B122 Flow Chart
G90G09273
