Note On Intermittents

If intermittent Code B119 is being set, manipulate related wiring while observing BCM parameter BD44. If failure is induced, reading will jump from its normal value to a reading outside the range of 6-94 percent. Ensure owner is advised not to cover sensor.

Fig 1: BCM Code B119 Circuit Diagram
G90A21741

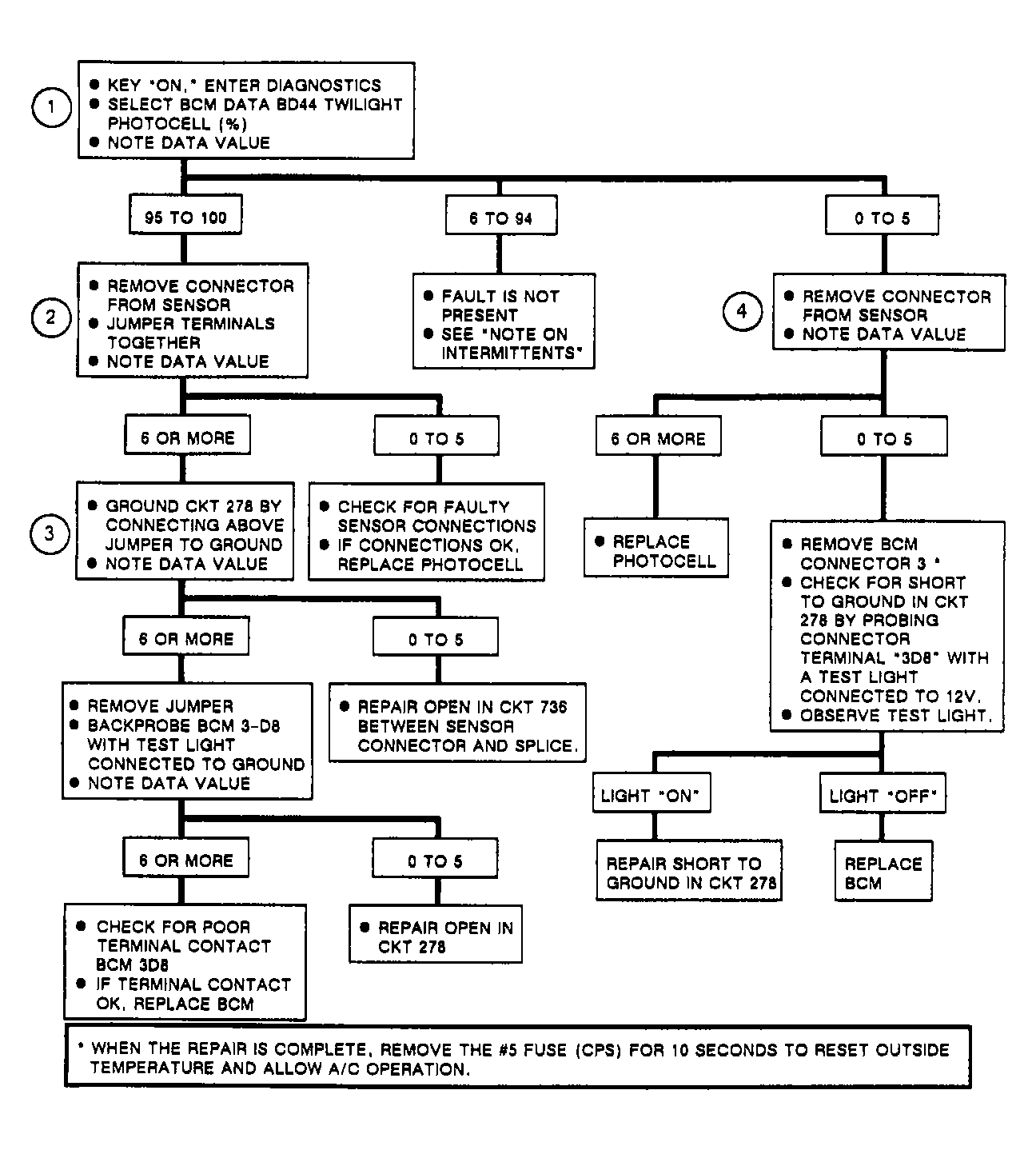

Fig 2: BCM Code B119 Flow Chart
G90I09269
