Note On Intermittents

Since all 4 groups of relays can cause an intermittent condition, see NOTE ON INTERMITTENTS for courtesy light relay, twilight relays, high/low beam relays, or retained accessory power relays.

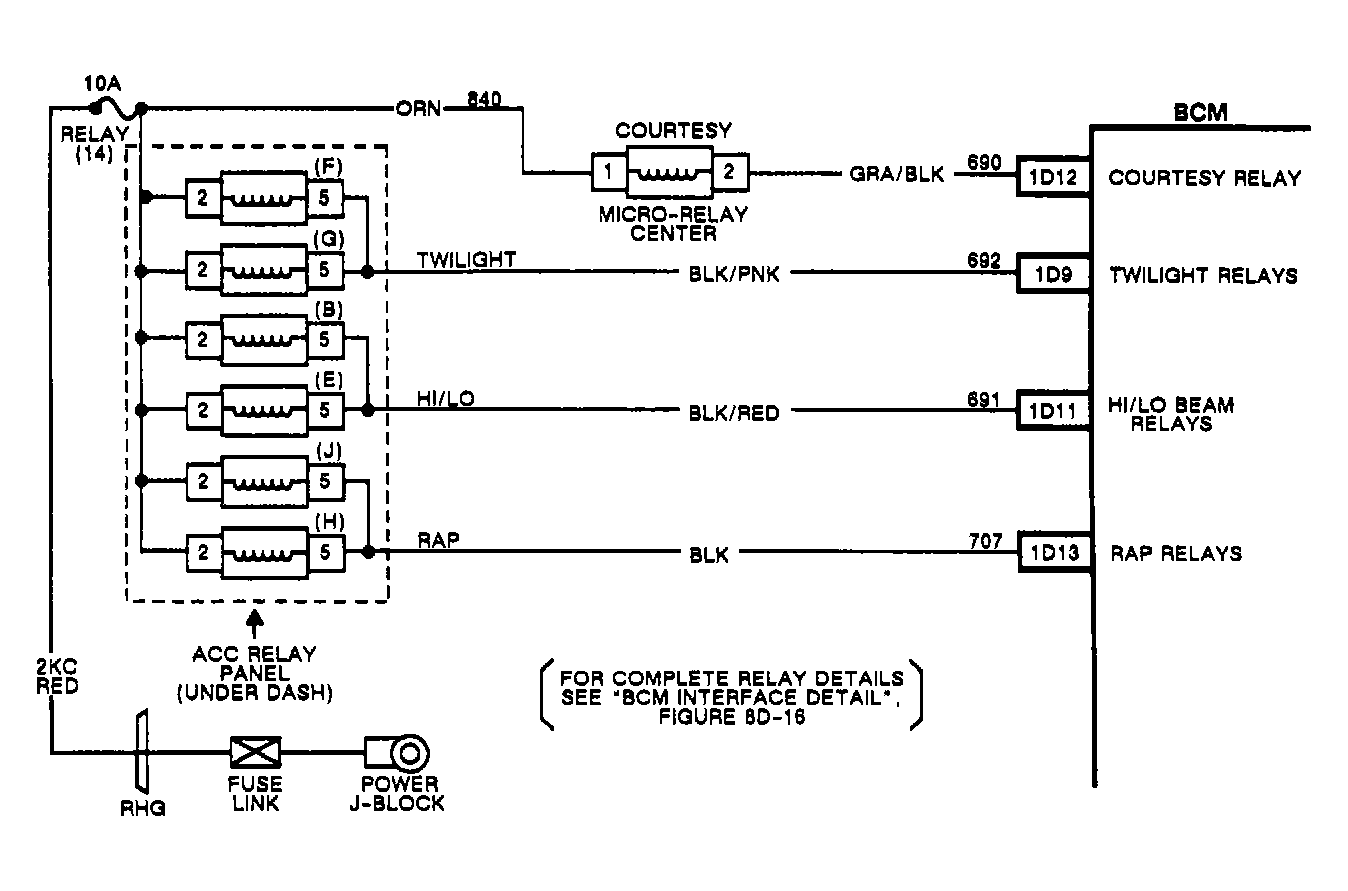

Fig 1: BCM Code B420 Relay Circuit Diagram
G90J21740

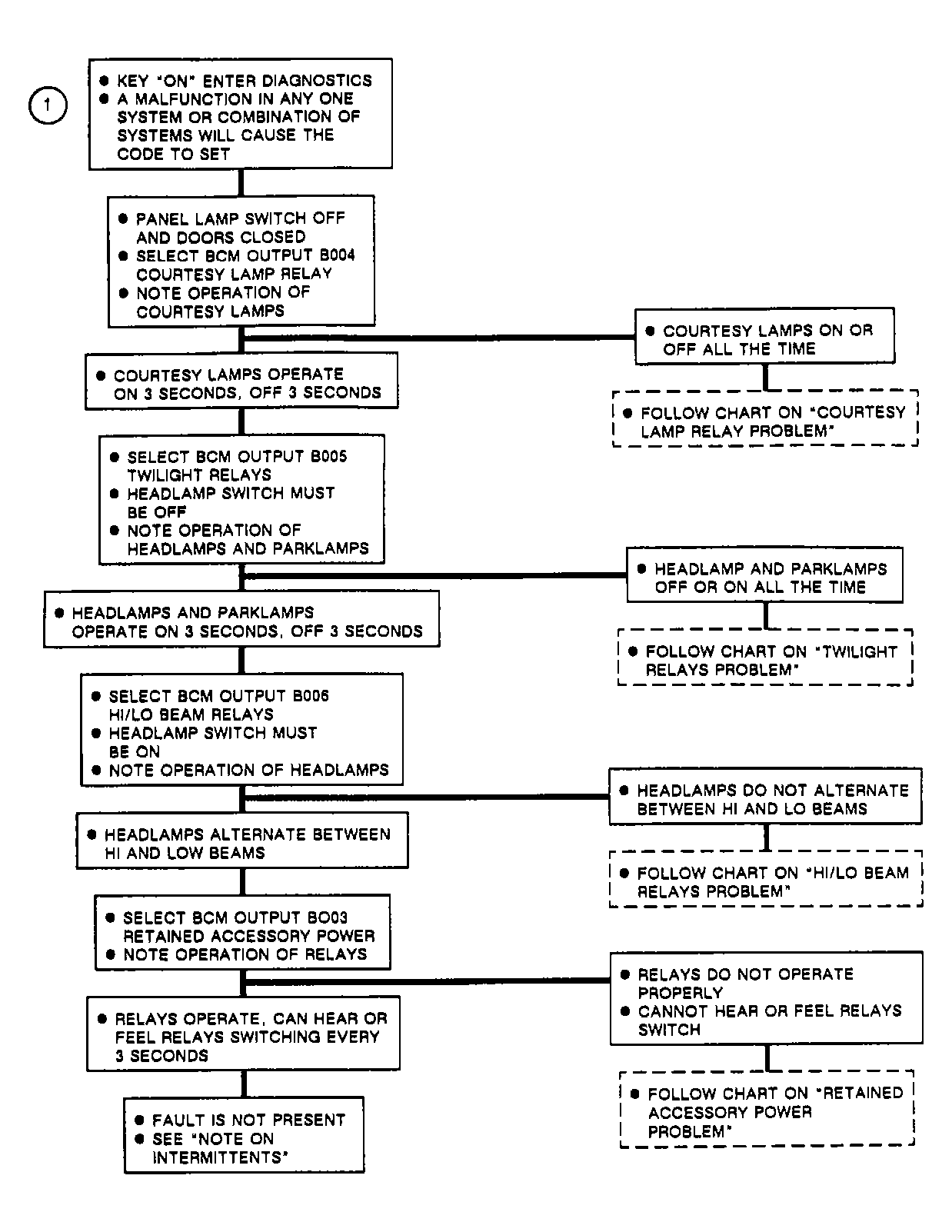

Fig 2: BCM Code B420 Flow Chart
G90E09286
