Note On Intermittents

If an intermittent Code B420 is being set, manipulate related wiring in output function and watch for relays to cycle.

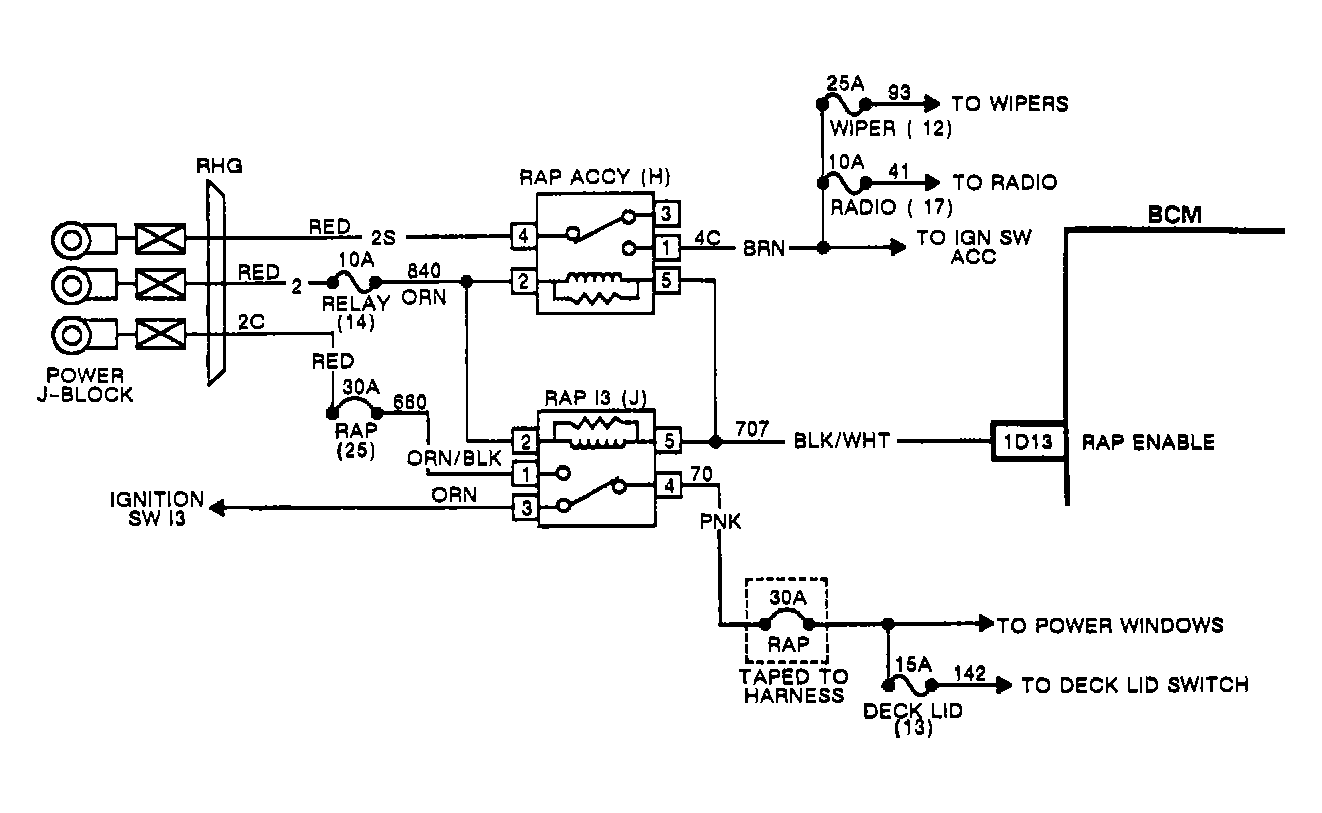

Fig 1: BCM Code B420 Retained Acc. Power Relays Circuit Diagram

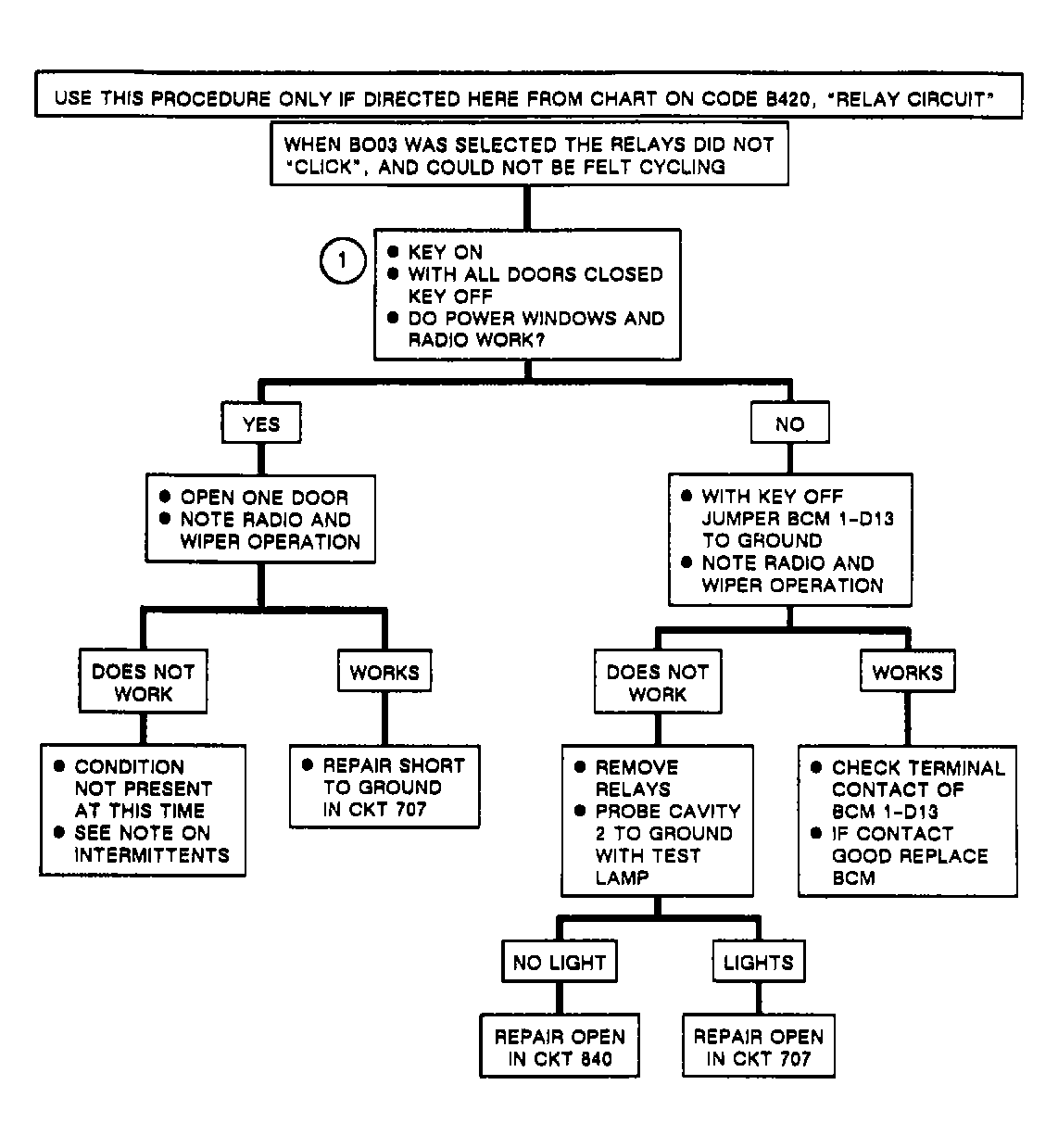

Fig 2: BCM Code B420 Flow Chart
