Note On Intermittents

If an intermittent Code EO61 is being set, manipulate wiring while in output function EO08. Listen for solenoid to cycle or stop cycling. This must be done slowly as function cycles solenoid on and off every 3 seconds.

Fig 1: ECM Code EO61 Circuit Diagram
G90F21738

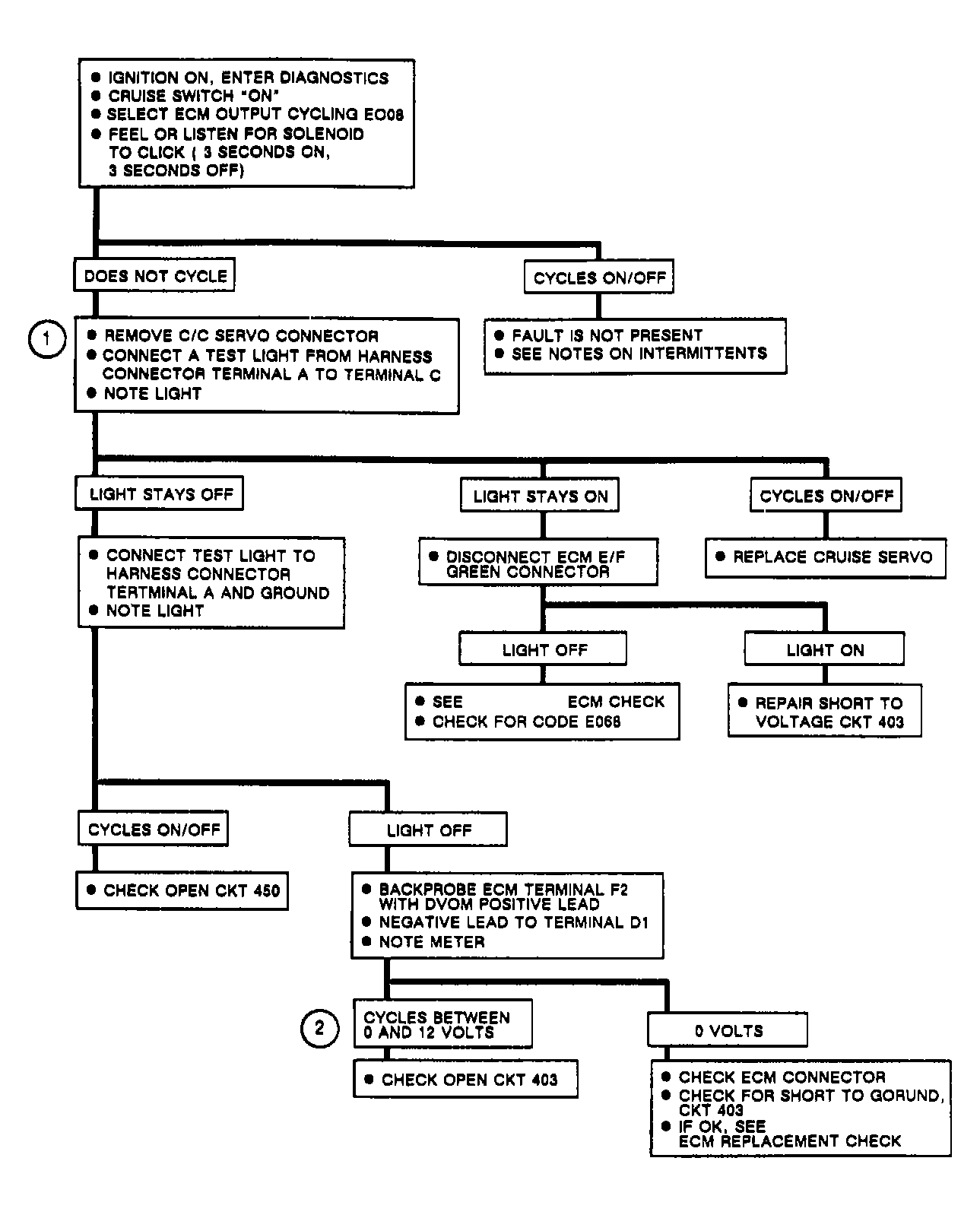

Fig 2: ECM Code EO61 Flow Chart
G90J13887
