Note On Intermittents

This code can be caused by an open, short to ground or short to voltage on circuit No. 472 and/or 469, an open or short in sensor connector, engine-to-dash connector or ECM connector. If no problems are found in wiring or connectors, substitute a known good sensor and retest.

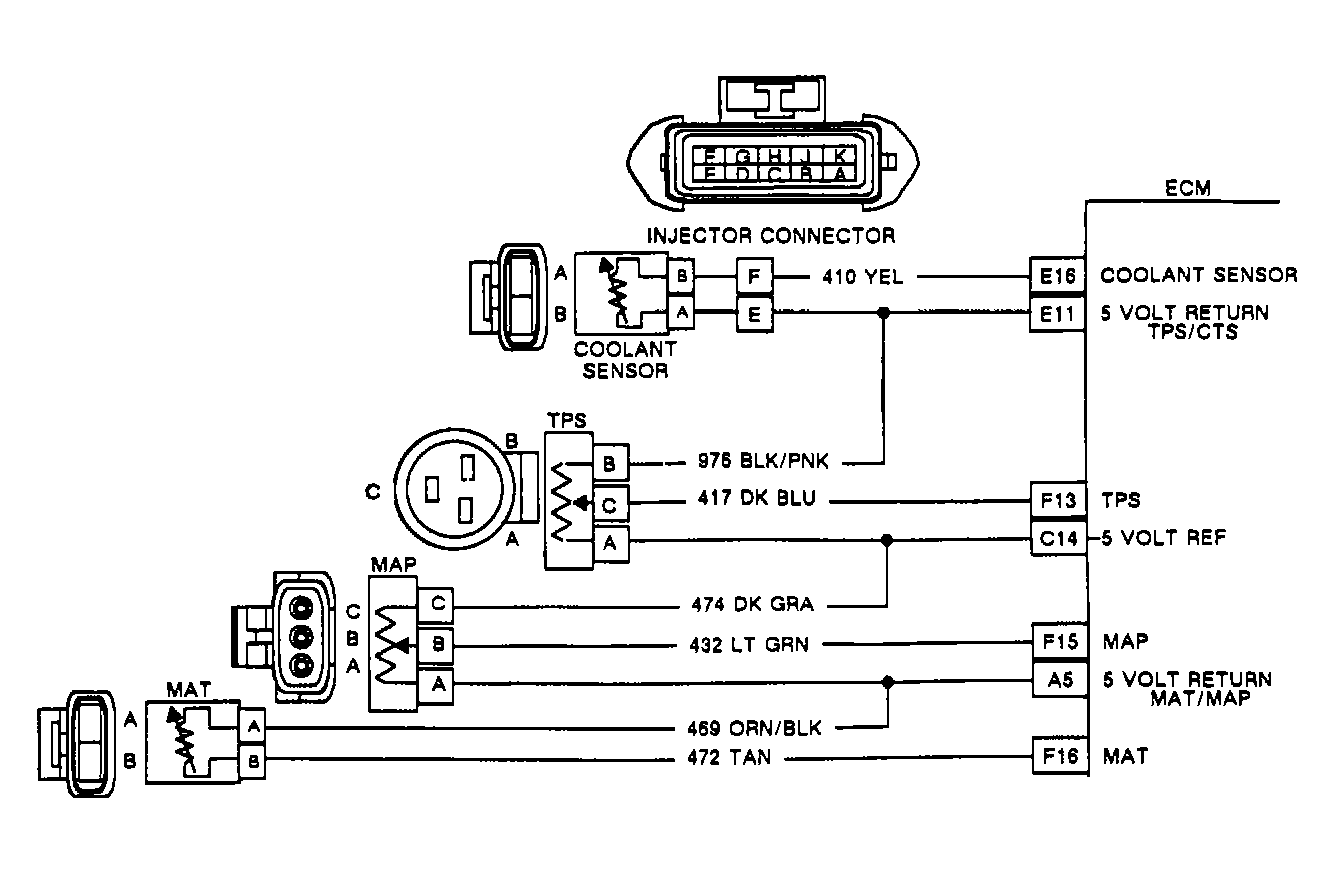

Fig 1: ECM Code EO74 Circuit Diagram
G90F21720
