Test A: Keyless Entry Module Connectors Pin Out

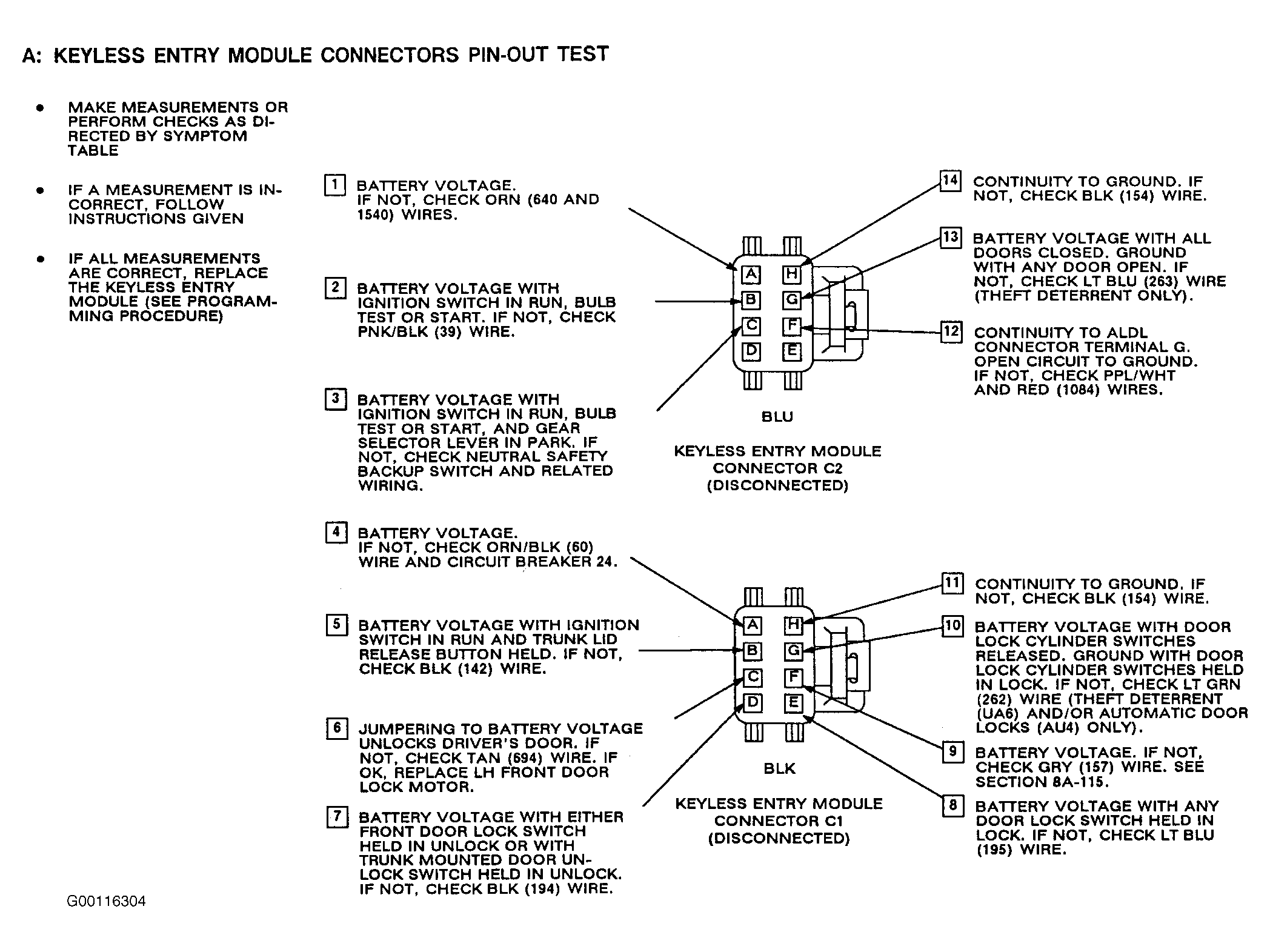

To perform keyless entry module connectors pin out tests, see Fig 1 .

Fig 1: Keyless Entry Module Connectors Pin Out

Courtesy of GENERAL MOTORS CORP.
