Wiring Diagrams

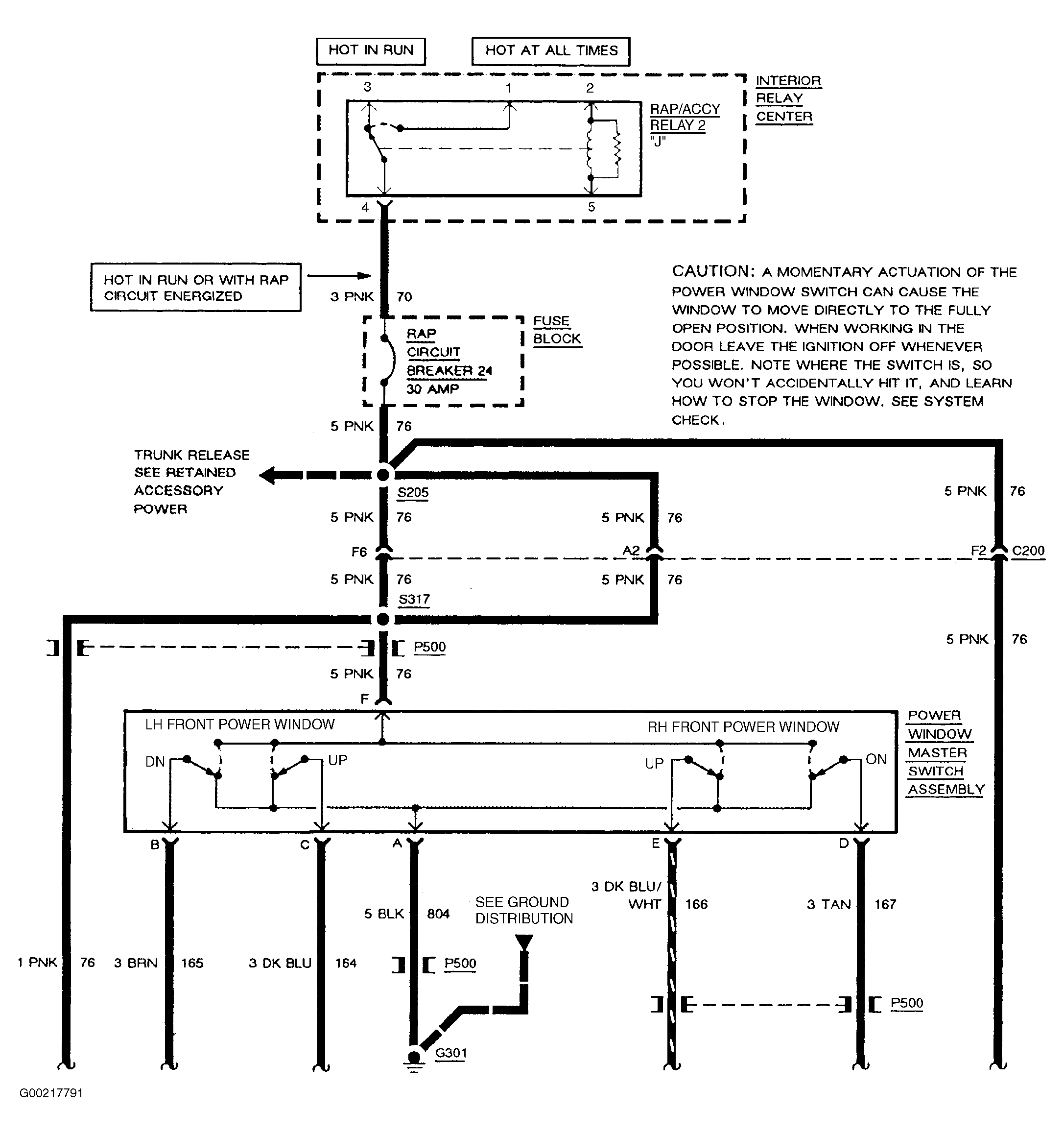

Fig 1: Power Window Wiring Diagram (Eldorado -1 Of 2)

Courtesy of GENERAL MOTORS CORP.

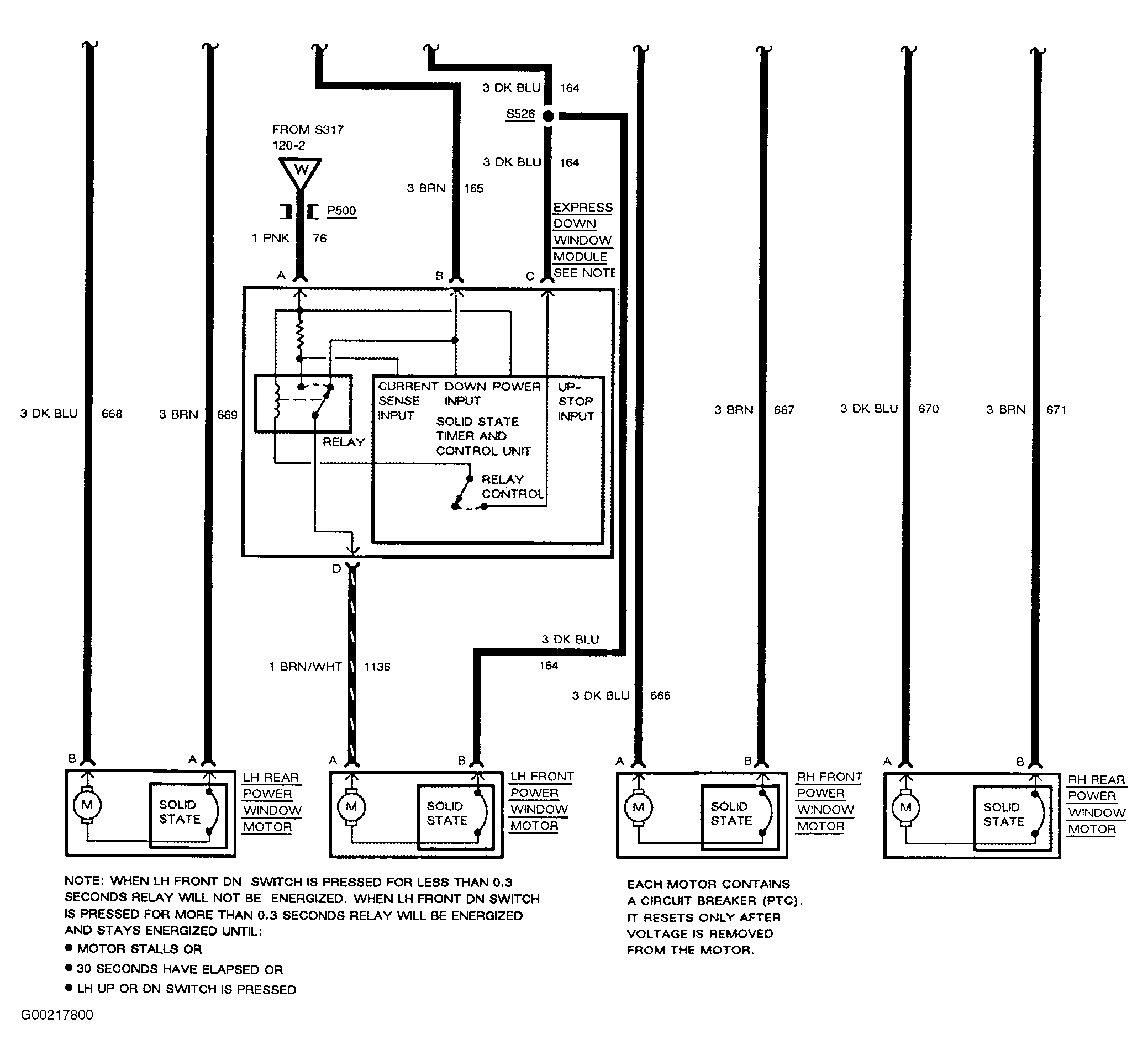

Fig 2: Power Window Wiring Diagram (Eldorado - 2 Of 2)

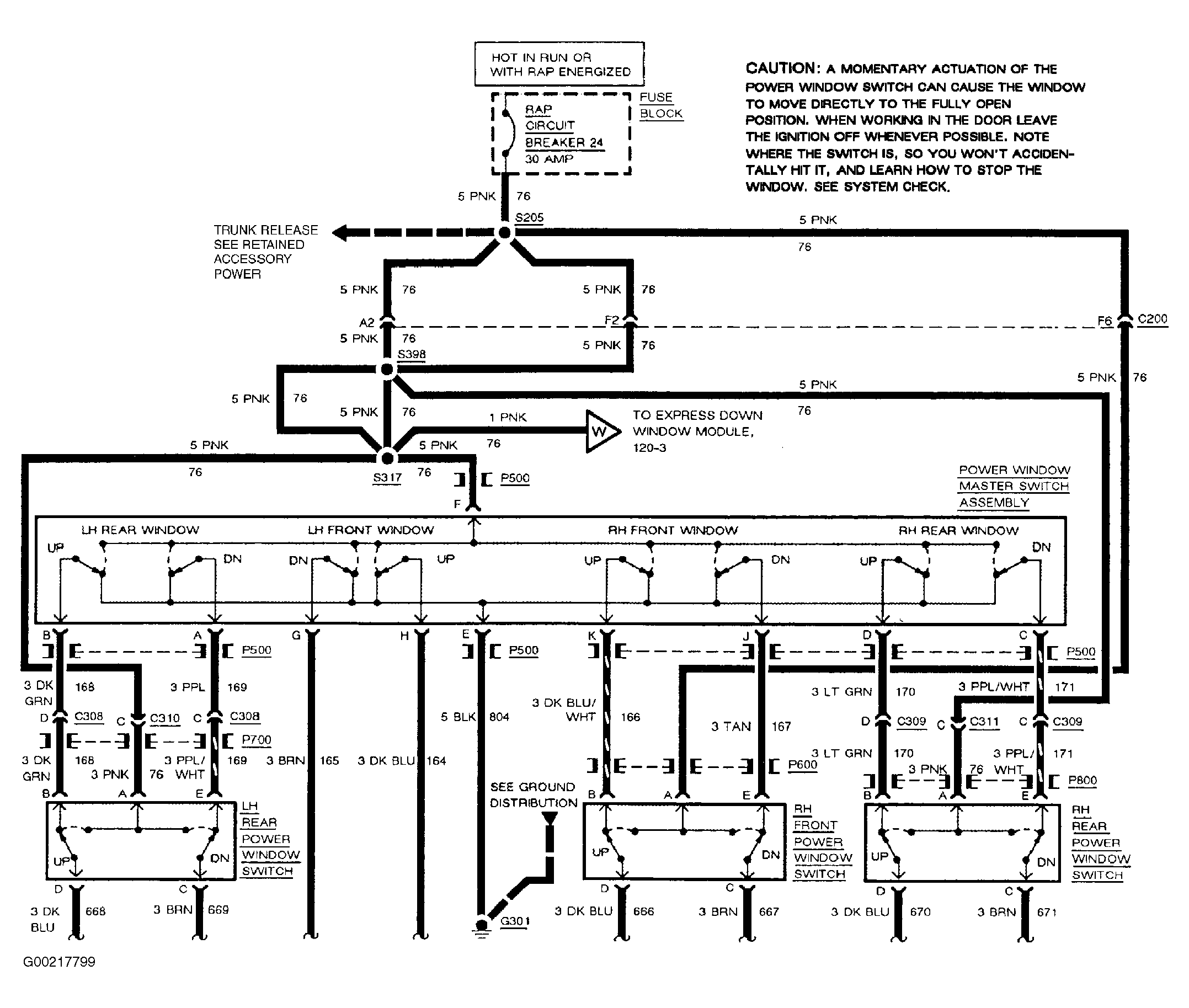

Fig 3: Power Window Wiring Diagram (Seville - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

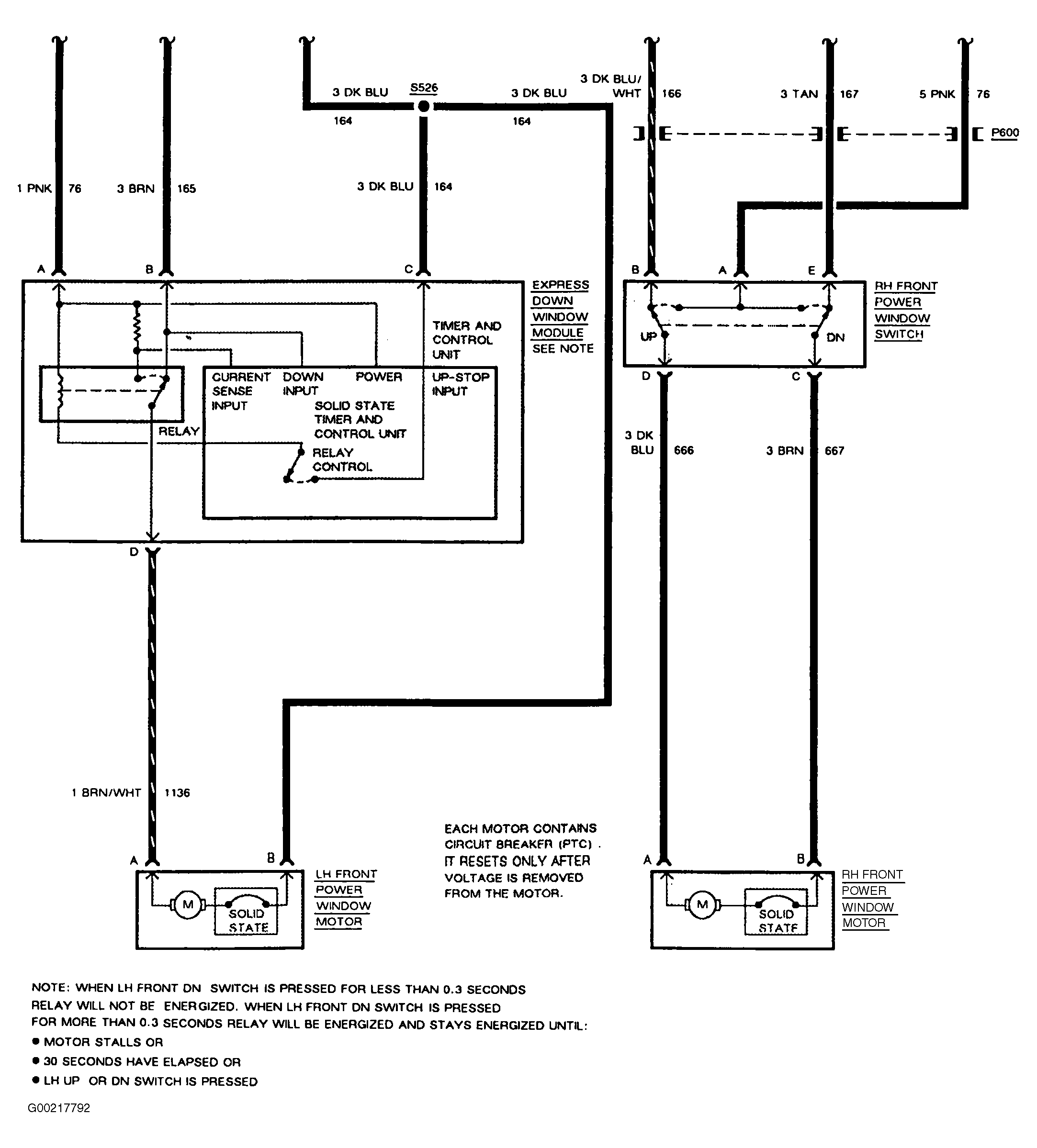

Fig 4: Power Window Wiring Diagram (Seville - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
