Note On Intermittents

A Code B110 will be stored in memory whenever the ambient temperature drops to less than -29°F (-34°C). This code should be ignored if this cause is suspected.

If intermittent Code B110 is being set, manipulate related wiring while observing BCM parameter BD26. If failure is induced, reading will jump from its normal value to a reading outside range of -34°C to 87°C.

If value displayed by BD26 is not reasonably close to actual temperature of air at sensor, check poor terminal connections or replace sensor.

Fig 1: BCM Code B110, Schematic, Outside Air Temperature Sensor Circuit

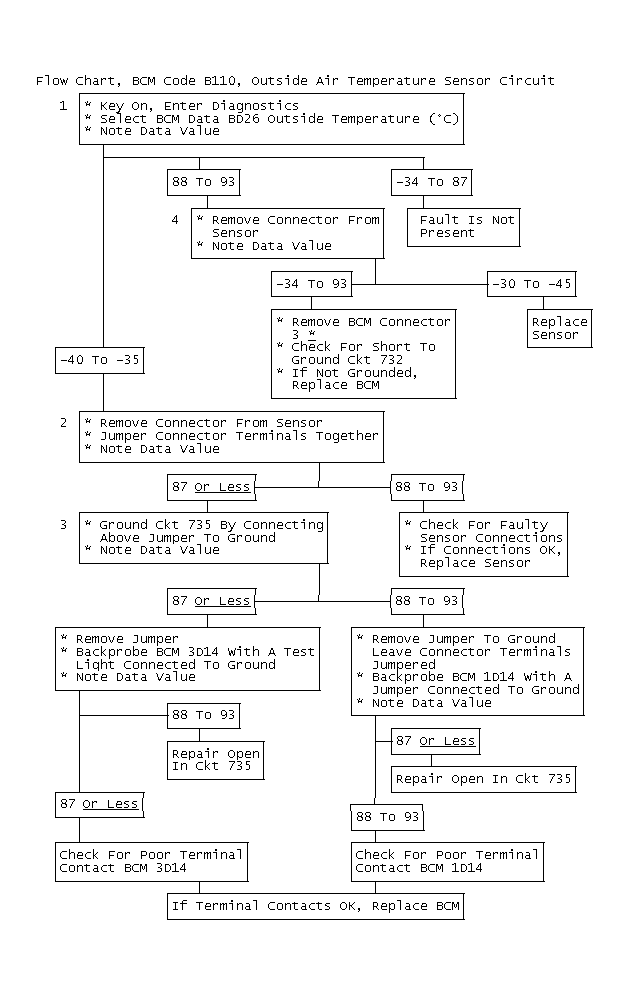

Fig 2: Flow Chart, BCM Code B110, Outside Air Temperature Sensor Circuit
