Note On Intermittents

If Code 33 is stored as a history code, check power, ground and circuit No. 800 to the BCM intermittent faults. If other codes are stored, refer to MULTIPLE INTERMITTENT CODES in this article.

Fig 1: BCM Code B333, Schematic, Loss Of SIR (DERM) Data

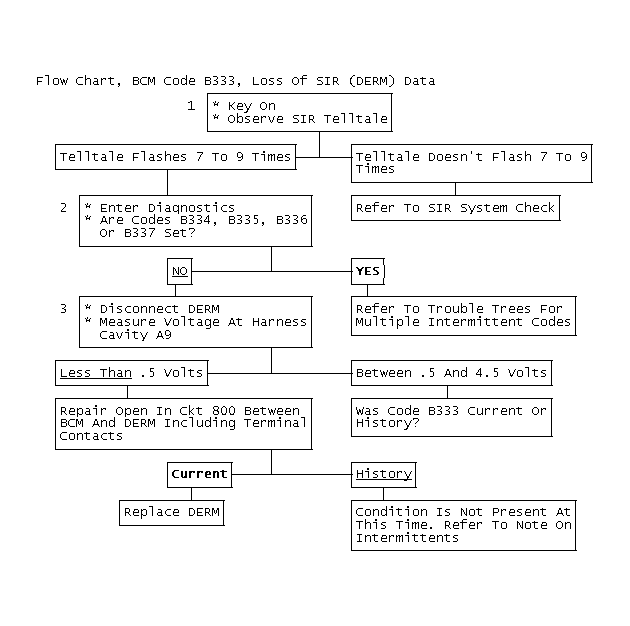

Fig 2: Flow Chart, BCM Code B333, Loss Of SIR (DERM) Data
